Deck lift to 18.05.2014 13WX79KT066 (2014)

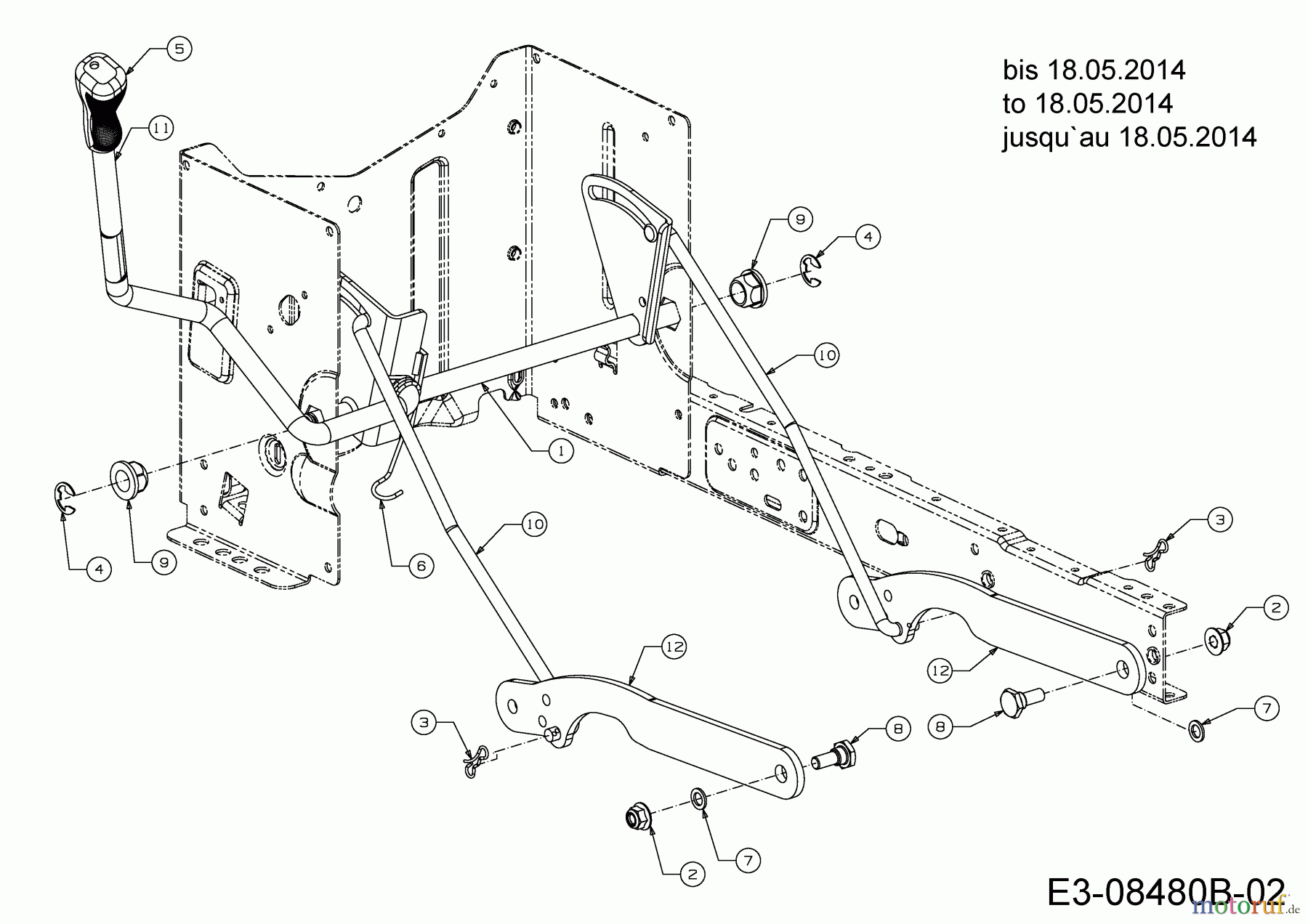

Troy-Bilt Lawn tractors Horse XP 46 13WX79KT066 (2014) Deck lift to 18.05.2014
PosizioneArticolo numeroDescrizione
1 683-04334SHF ASM:LIFT:LT-5 46"
2 Troy-Bilt NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
3 Troy-Bilt PIN-COTTER714-04040PIN-COTTER
4 Troy-Bilt RING:E-TYPE:.625 DIA SHAFT716-0106ARING:E-TYPE:.625 DIA SHAFT
5 720-0298GRIP:HANDLE 5/8
6 732-04438SPR:TORSN:46" LT-5 HNDL
7 736-0140WASH:FLAT:.385 x.62 x.063
8 Troy-Bilt BOLT:SHLDR:.500 x.270:3/8-16738-0380BOLT:SHLDR:.500 x.270:3/8-16
9 Troy-Bilt BRG:HEX FLNG741-0225BRG:HEX FLNG
10 Troy-Bilt ROD:LIFT:13.68747-04393ROD:LIFT:13.68
11 747-04653AHANDLE LIFT
12 783-0678C
