Spareparts

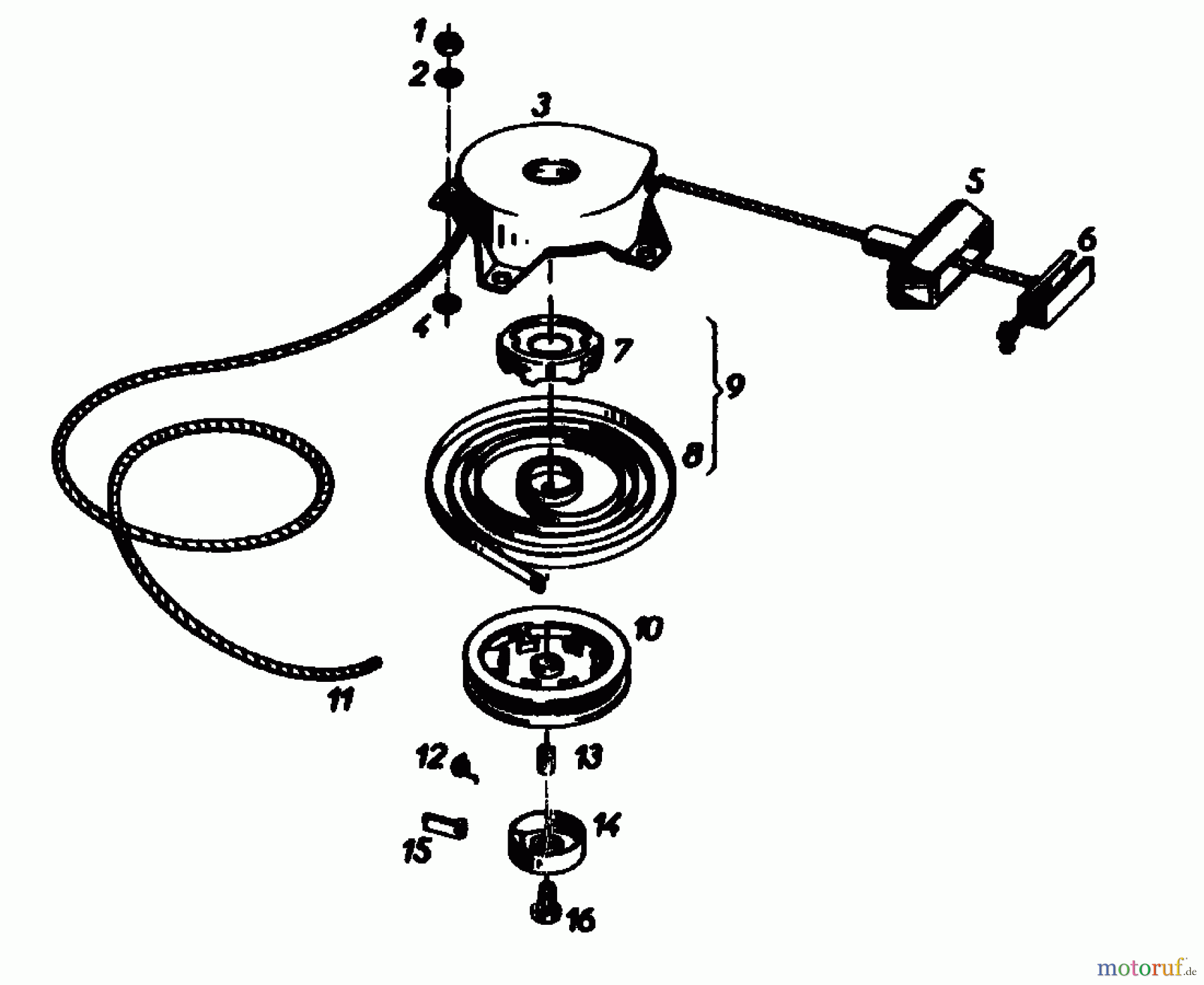

Recoil starter 07507.02 (1990)
Posizione | Articolo numero | Descrizione | |
1 | 24.1421.14 | Nut | |
2 | 24.8190.14 | Washer | |
3 | 090.31.001 | Starter housing | |
4 | 24.6461.14 | ||
5 | 090.31.012 | handle | |
6 | 090.31.013 | BRACKET,CABLE RETAINER | |
9 | 090.31.002 | SPRING CASE | |
10 | 090.31.005 | Pulley | |
11 | 050.18.042 | Rope | |
12 | 090.31.009 | SPRING | |
13 | 090.31.006 | Spring | |
14 | 090.31.007 | Retainer | |
15 | 050.18.059 | HUB SHIFT | |
16 | 090.31.008 | Screw |
