Gutbrod BM 100 4/BS 07507.02 (1989) Handle Ricambi

Handle 07507.02 (1989)

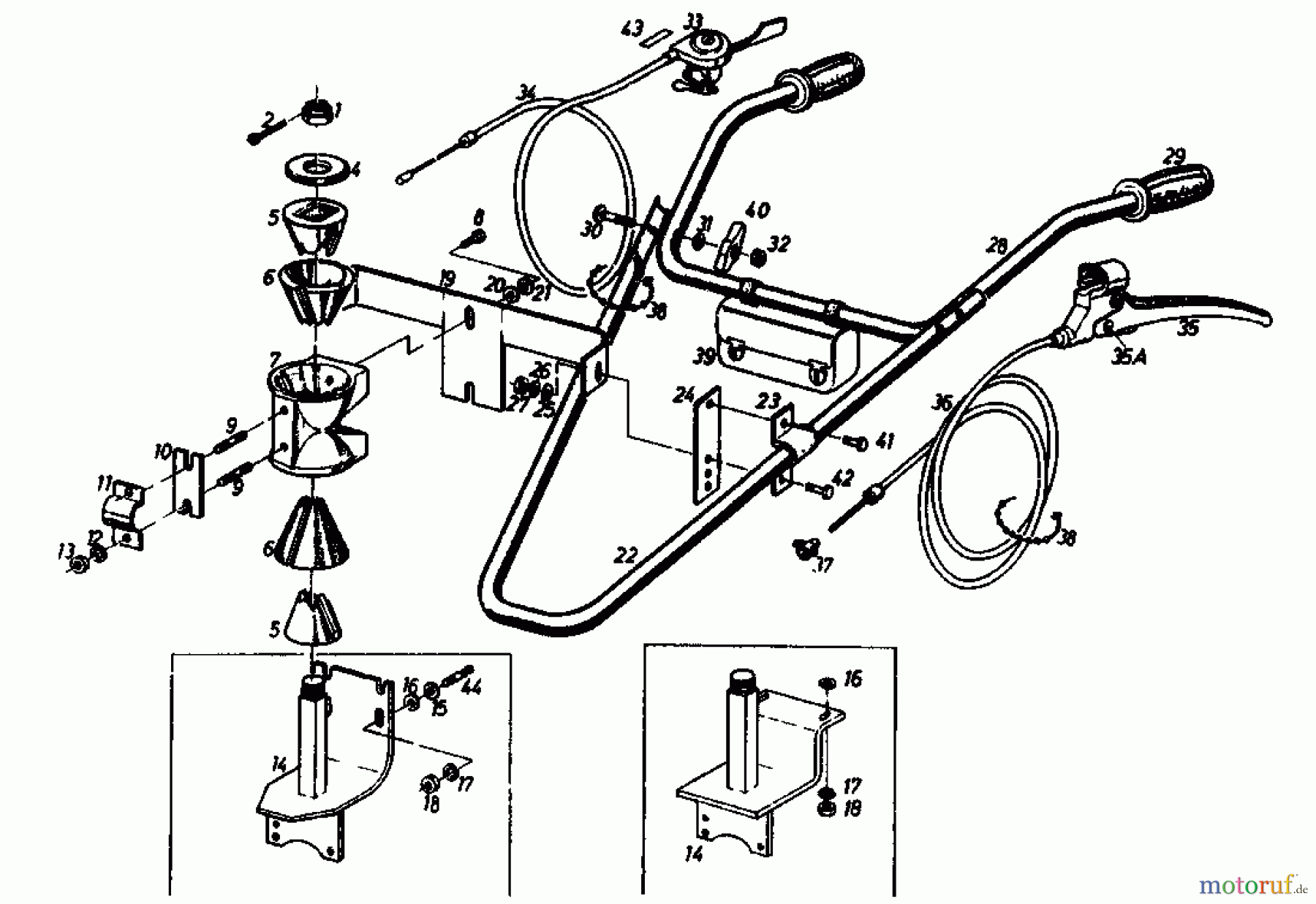

Gutbrod Cutter bar mower BM 100 4/BS 07507.02 (1989) Handle
PosizioneArticolo numeroDescrizione
2 24.6480.57
4 082.05.004washer
5 082.05.002THRUST BEVEL
6 080.80.001Rubber bevel
7 080.80.014Handle bracket
8 21.1441.87Screw
9 23.1441.41Screw
10 080.80.007BRACKET-MTG
11 080.81.039Handle clamp
12 24.8195.18Spring washer
13 24.1426.18NYL STOP NUT M5 DIN 985-8
14 080.80.818BRACKET
14 080.80.804BRACKET
15 24.6487.20Washer
16 Gutbrod Circlip28.3592.42Circlip
16 24.6481.18WASHER 8.4 DIN125
17 24.8195.18Spring washer
18 24.1426.18NYL STOP NUT M5 DIN 985-8
19 080.80.805FASTENING BAIL
20 24.6481.22Washer
21 24.8190.22Lockwasher
22 073.22.861SHF:DR:STEERABLE WHL
23 080.81.039Handle clamp
24 080.80.071Plate
25 24.6481.18WASHER 8.4 DIN125
26 24.8195.18Spring washer
27 24.1421.18Nut
28 080.80.003Handle upper part
29 000.37.406Handle
30 22.3419.31Screw
31 24.6481.18WASHER 8.4 DIN125
32 24.1421.18Nut
33 000.09.254Gas control lever
33 000.09.082Gas lever
34 000.46.191Bowden wire for gaz
34 000.46.362CONTROL
35 Gutbrod Shift lever000.09.141Shift lever
35A 090.38.006Cable clamp
36 000.46.190BOWDEN CABLE
37 090.23.211LOWER BAR 96 CM
38 000.70.040Cable tie
38 090.23.206BAR BLADE
39 000.40.481Tool back
40 000.06.046WING NUT
41 24.1421.18Nut
42 21.1441.72Screw
43 000.42.319LBLI:
44 23.2441.41Stud
