Cub Cadet Z-Force LZ 60 17BIDAGD010 (2015) Mowing deck D (60"/151cm) Ricambi

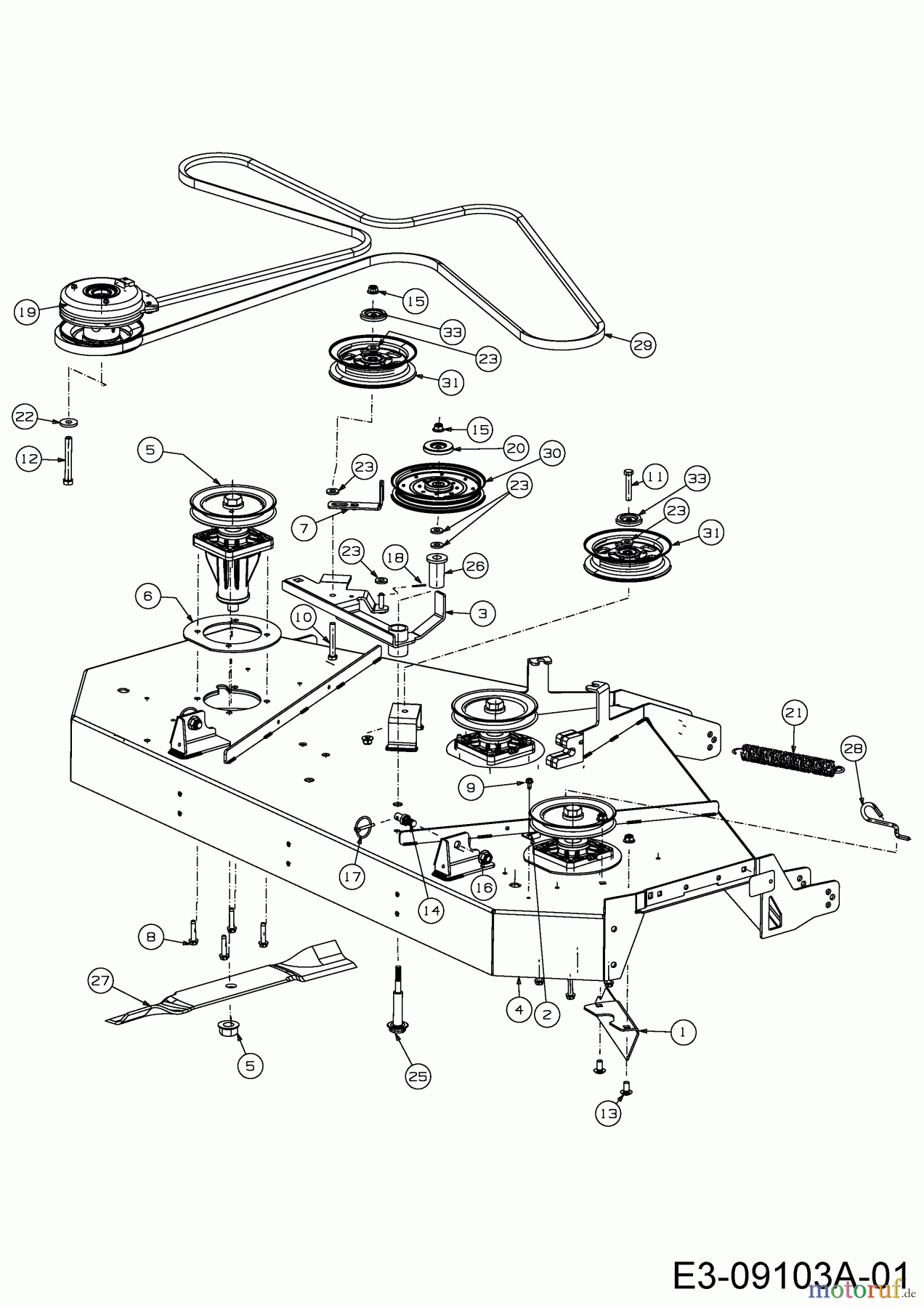

Mowing deck D (60"/151cm) 17BIDAGD010 (2015)

Cub Cadet Zero Turn Z-Force LZ 60 17BIDAGD010 (2015) Mowing deck D (60
PosizioneArticolo numeroDescrizione
1 02005195CHUTE BAFFLE
2 16606BRKT:HOOK:RETAINER
3 603-05081ABRACKET ASM DECK IDLER
4 603-05095SHELL 60" DECK
5 618-06076SPINDLE ASM DECK
6 703-07787
7 703-09583
8 710-04605
9 Cub Cadet SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
10 710-0859SCREW HHCS:3/8-16:2.50:GR5:STD
11 Cub Cadet HHCS:3/8-16:2.00:GR5:STD710-3144HHCS:3/8-16:2.00:GR5:STD
12 710-3157AHEX.SCREW HHCS:7/16-20:3.25GR5
13 Cub Cadet BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
14 711-06200PIN DECK
15 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
16 712-04150NUT FLGLK 1/2-13 NYLON
17 714-0220APIN:LYNCH:.1875
18 Cub Cadet PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
19 717-05192CLUTCH ELECTRIC PTO
20 721-04516CAP PULLEY
21 732-04927SPR:EXT:1.25 OD x 8.5 LG:RZTS
22 Cub Cadet WASH:FLAT:.450 x1.250 x.164:HD736-0322WASH:FLAT:.450 x1.250 x.164:HD
23 Cub Cadet WASH:FLAT:.406 x.875 x.105736-3004WASH:FLAT:.406 x.875 x.105
25 738-05049ASHOULDER BOLT
26 741-05056BUSHING
27 742-04415BLADE-HI LIFT 21.0" 60" TNK CT
28 747-05608HOOK:ROD:SPRING:DECK
29 754-05015BELT DECK 161.75"
30 756-04487IDLER PULLEY
31 756-05053PULLEY-IDLER-FLAT
33 Cub Cadet CAP:PULLEY:HD783-08389CAP:PULLEY:HD
