Cub Cadet CC 1016 AF 13AD90AF603 (2012) Covers left hand and right hand mowing deck F (38"/96cm) Ricambi

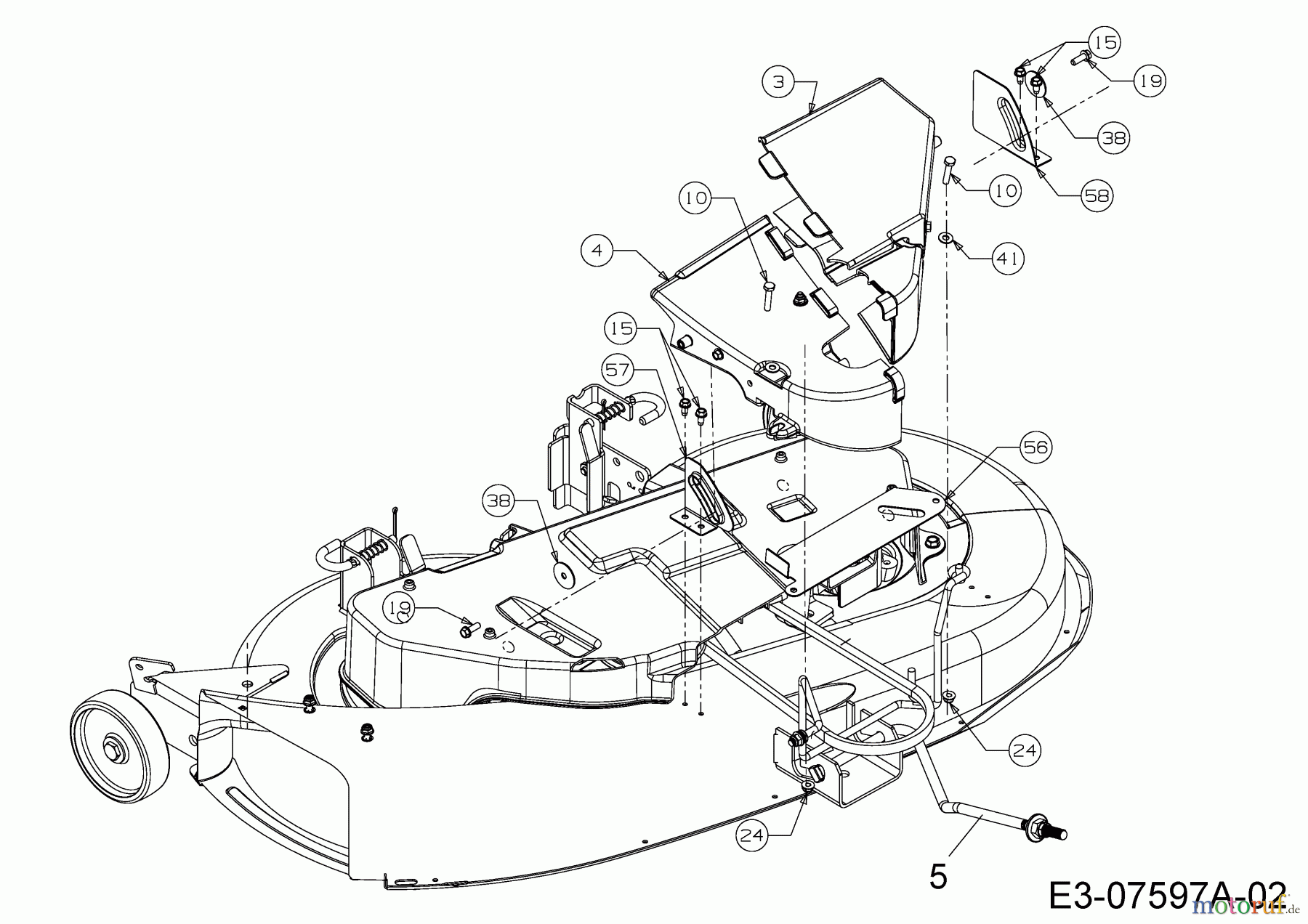

Covers left hand and right hand mowing deck F (38"/96cm) 13AD90AF603 (2012)

Cub Cadet Lawn tractors CC 1016 AF 13AD90AF603 (2012) Covers left hand and right hand mowing deck F (38
PosizioneArticolo numeroDescrizione
1 Cub Cadet SPDL ASM:PUL:5.75" DIA618-04474ASPDL ASM:PUL:5.75" DIA
2 631-04312ACOVER ASM:DECK 38"
3 631-04342COVER ASM LEFT
4 631-04343CVR ASM:RIGHT
5 647-04163ROD ASM KEEPER 42" FRENCH COVR
6 683-0254BBRKT:ASM:DECK:HNGR LH LT
7 683-04138BBRAKE ASM:DECK:42"
8 Cub Cadet BRAKE ASM:DECK 42"683-04167BRAKE ASM:DECK 42"
9 683-04264BDECK ASM:SD:38" w/WHL BRKTS
10 710-0106HHCS:1/4-20:1.25:GR5:SPEC
11 Cub Cadet HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
12 Cub Cadet SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
13 710-05045ASCR:TT:5/16-18:.750:HXINDWSH
14 Cub Cadet HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
15 Cub Cadet SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
16 Cub Cadet SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
17 710-0751HHCS:1/4-20:.620:GR5:STD
18 Cub Cadet HEX. SCREW TT:1/4-20:1.500:710-0778HEX. SCREW TT:1/4-20:1.500:
19 Cub Cadet SCR:HL:1/4-15:0.750:HXINDWSH710-0895SCR:HL:1/4-15:0.750:HXINDWSH
20 Cub Cadet HEX. SCREW B:#10-16:0440:HEX710-0919HEX. SCREW B:#10-16:0440:HEX
21 Cub Cadet SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
22 Cub Cadet HHCS:3/8-16:3.50:GR5:STD710-3085HHCS:3/8-16:3.50:GR5:STD
23 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
24 Cub Cadet NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
25 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
26 Cub Cadet NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
27 Cub Cadet NUT:FLXLK:1/2-13712-04243NUT:FLXLK:1/2-13
28 Cub Cadet PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
29 Cub Cadet PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
30 Cub Cadet GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
31 Cub Cadet NUT:SPD:.3125 ID726-0201NUT:SPD:.3125 ID
32 726-0233NUT:PUSH:.25 ID X .50 OD
33 Cub Cadet SPR:EXTN:0.75 OD x 6.375LG732-04280BSPR:EXTN:0.75 OD x 6.375LG
34 Cub Cadet SPR:EXTN:.500 DIA x 6.375LG732-04287SPR:EXTN:.500 DIA x 6.375LG
35 Cub Cadet SPR:COMP:.535 OD x 1.751 LG732-04652SPR:COMP:.535 OD x 1.751 LG
36 734-0973WHEEL:DECK 5.0 X 1.38
37 Cub Cadet WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
38 736-0211WASHER:FLAT:.285 x 1.250 x.060
39 Cub Cadet WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
40 736-0317WASH:BLVL:.630x1.250x.180
41 736-0463WASH:FLAT: .250 x .630 x .052
42 Cub Cadet SCR:SHLDR:.496 x 1.525: 3/8-16738-0373SCR:SHLDR:.496 x 1.525: 3/8-16
43 738-04162ASPACER:SHLDR:.8840 x.190
44 738-04166SPACER:SHLDR:.5000 x.1475
45 Cub Cadet BLADE:19.30"LG:STAR 3 IN 1:6PT742-0610ABLADE:19.30"LG:STAR 3 IN 1:6PT
46 Cub Cadet BRAKE ROD 38"747-04381BRAKE ROD 38"
47 Cub Cadet ROD:DECK 38" EURO COVER747-05061ROD:DECK 38" EURO COVER
48 Cub Cadet ROD:HNDL:DECK REL .375 DIA747-1116ROD:HNDL:DECK REL .375 DIA
49 750-04446SPCR:3/8 ID x.68 OD x 1.46 LG
50 Cub Cadet SPCR: .260 X .375 X 1.030 LG750-0566ASPCR: .260 X .375 X 1.030 LG
51 Cub Cadet BELT:V TYP:A SELECTION X 88.80754-04198CBELT:V TYP:A SELECTION X 88.80
52 Cub Cadet PULLEY IDLER756-04129BPULLEY IDLER
54 783-04740BRKT:CBL:DECK ENGAGE
55 783-05497BRKT:KEEPR:BELT
56 783-06276BRKT:CVR:FRENCH
57 783-06283PLT:PIVOT:FRNCH CVR:REIGHT
58 783-06284PLT:PIVOT:FRENCH CVR:LEFT
59 783-1025STOP:CHUTE
