Idle pullies drive system 17AF2ACS678 (2014)

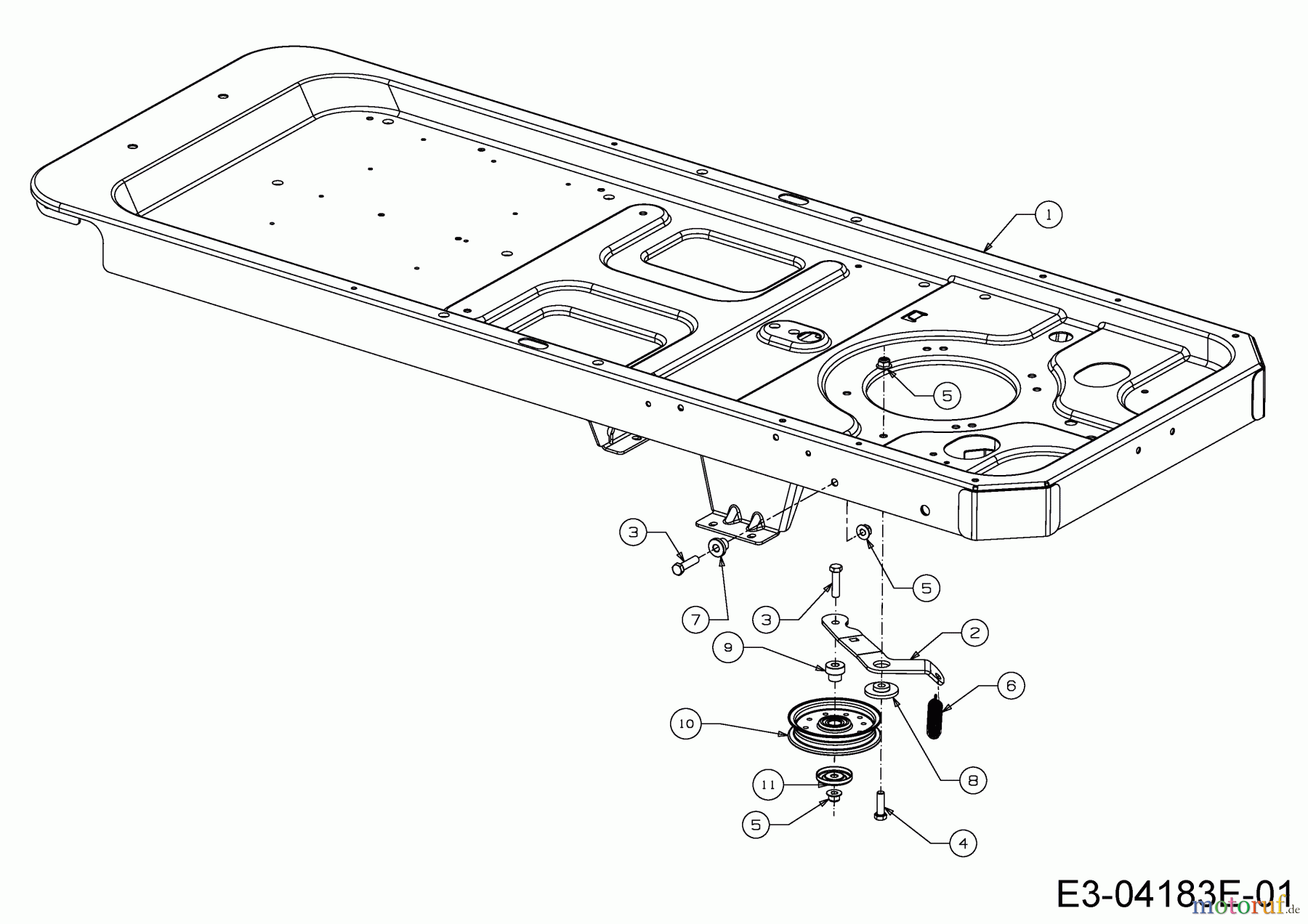

MTD Zero Turn P 220 HZ-S 17AF2ACS678 (2014) Idle pullies drive system
PosizioneArticolo numeroDescrizione
1 603-04680AFRAME ASM
2 703-05829IDLER BRACKET
3 710-0520HHCS:3/8-16:1.50:GR5:STD
4 MTD SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
5 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
6 732-0626SPRING-BRAKE TENSION
7 738-04058SPCR:SHLDR:.38 x 1.0 x .70
8 MTD SPCR:SHLDR:.8840 x .190738-04162CSPCR:SHLDR:.8840 x .190
9 MTD SPCR:SHLDR:TOGGLE LOCK748-05029ASPCR:SHLDR:TOGGLE LOCK
10 MTD PUL:IDLR:4.25"DIA:HD756-05042PUL:IDLR:4.25"DIA:HD
11 MTD CAP:PULLEY:HD783-08389CAP:PULLEY:HD
