MTD 15.5/42 13AM775S308 (2014) Mowing deck S (42"/107cm) to 18.05.2014 Ricambi

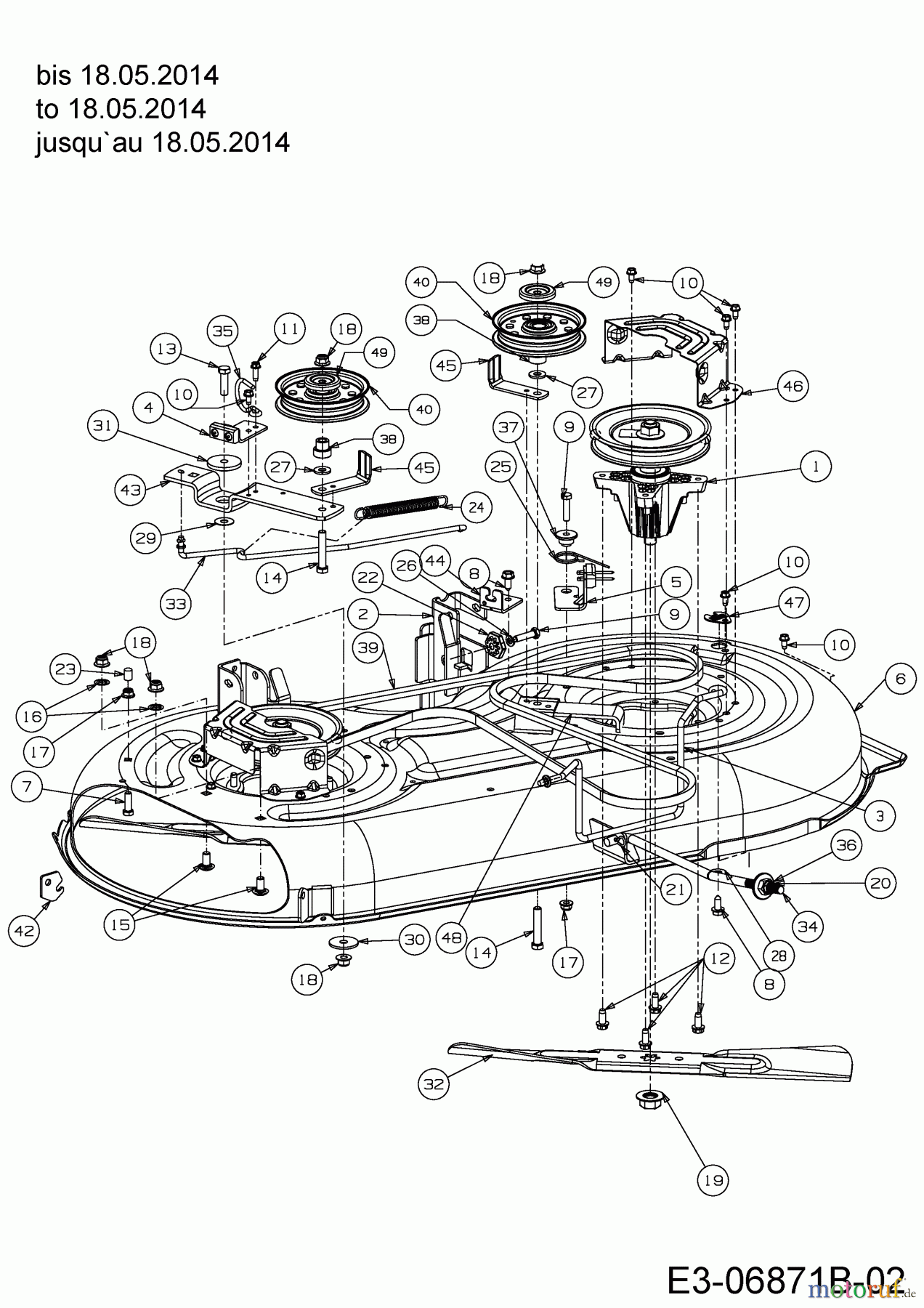

Mowing deck S (42"/107cm) to 18.05.2014 13AM775S308 (2014)

MTD Lawn tractors 15.5/42 13AM775S308 (2014) Mowing deck S (42
PosizioneArticolo numeroDescrizione
1 618-04822ASPDL ASM:PUL:5.695 DIA X .5625
2 683-0254BBRKT:ASM:DECK:HNGR LH LT
3 683-04443ROD ASM:KEEPR:BELT 42":PAINT
4 683-04511BRAKE ASM:DECK:42/46
5 683-04525BRAKE ASM:DECK:46"
6 683-04570A
7 MTD HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
8 MTD SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
9 MTD HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
10 MTD SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
11 MTD SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
12 MTD SCR:TT:5/16-18:0.750:HXINDWSH710-1260ASCR:TT:5/16-18:0.750:HXINDWSH
13 MTD SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
14 MTD HHCS:3/8-16:2.00:GR5:STD710-3144HHCS:3/8-16:2.00:GR5:STD
15 MTD BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
16 MTD NUT:PUSH:3/8712-0229NUT:PUSH:3/8
17 MTD FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
18 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
19 MTD NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
20 MTD NUT:FLXLK:1/2-13712-04243NUT:FLXLK:1/2-13
21 MTD PIN COTTER:BOW - TIE 91714-04043PIN COTTER:BOW - TIE 91
22 MTD GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
23 720-05010CAP:VINYL: .290 x .500
24 MTD SPR:EXTN:.62 DIA x 6.12 LG732-0384SPR:EXTN:.62 DIA x 6.12 LG
25 732-04840SPR:TORSN:.992 ID x 1.17 OD
26 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
27 MTD WASK:FLAT:.385 x.870 x.092736-0262WASK:FLAT:.385 x.870 x.092
28 MTD WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
29 736-0344WASHER:FLAT:.385x1.000x.030
30 736-3039WASH:FLAT:.406 x 1.5 x .105
31 MTD SPCR:SHLDR:.8840 x .190738-04162CSPCR:SHLDR:.8840 x .190
32 742-04308BLADE:CUT:21:23" 2 IN 1:ECON
33 747-05105BROD:BRAKE
34 747-05141AROD:LIFT:DECK:FRT:12.7
35 747-05323ROD:KEEPR:BELT:42S, 46T
36 748-04069CUP:PIVOT:DECK LIFT
37 748-04272
38 MTD SPCR:SHLDR:TOGGLE LOCK748-05029ASPCR:SHLDR:TOGGLE LOCK
39 MTD BELT:V:A:96,5:ARAM:C2754-04060BBELT:V:A:96,5:ARAM:C2
40 MTD PUL:IDLR:4.25"DIA:HD756-05042PUL:IDLR:4.25"DIA:HD
42 783-05219BRKT:STOP:CHUTE 50"/54"
43 783-05946BRKT:IDLR:PIV:46
44 783-06243
45 783-06368A
46 783-06424ACOVER BELT DECK
47 MTD PLUG DECK WASH783-06464PLUG DECK WASH
48 783-06643
49 MTD CAP:PULLEY:HD783-08389CAP:PULLEY:HD
