Variator 13AF90GP690 (2009)

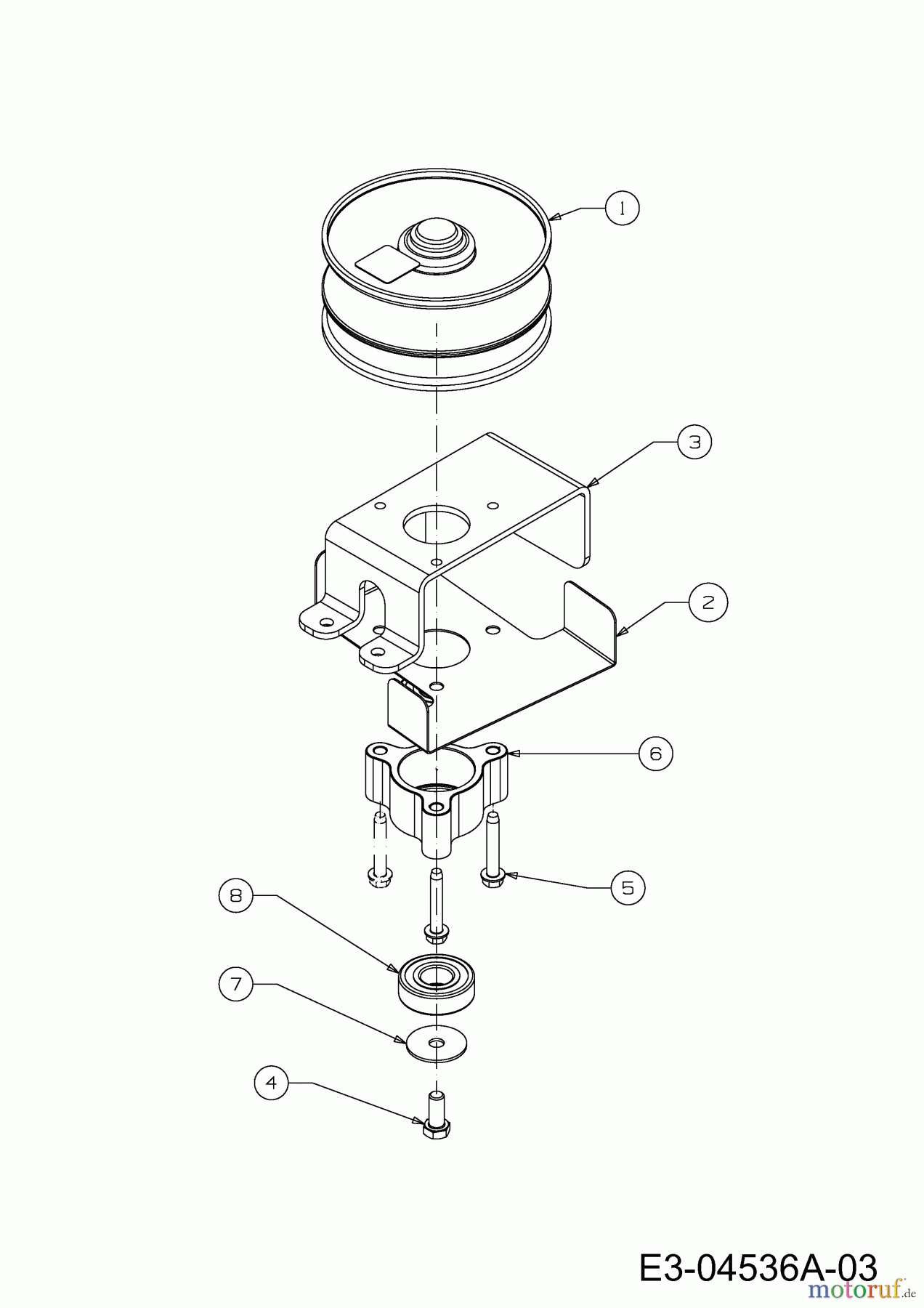

Gutbrod Lawn tractors ELX 127 SAL-SK 13AF90GP690 (2009) Variator
PosizioneArticolo numeroDescrizione
1 Gutbrod PUL ASM:VAR SPD:4.75 OD656-04015APUL ASM:VAR SPD:4.75 OD
2 683-04522KEEPR ASM:BELT
3 683-04523BRACKET VARIABLE SPEED
4 Gutbrod SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
5 Gutbrod HEX. SCREW TT:1/4-20:1.500:710-0778HEX. SCREW TT:1/4-20:1.500:
6 Gutbrod CUP:BRG718-04261CUP:BRG
7 Gutbrod WASH-FLAT:.330 x 1.25 x.06:HD736-0362WASH-FLAT:.330 x 1.25 x.06:HD
8 741-0124ABRG:BALL:17x40x12:6203
