MTD-Engines 1P70FHA 752Z1P70FHA (2007) Short block Ricambi

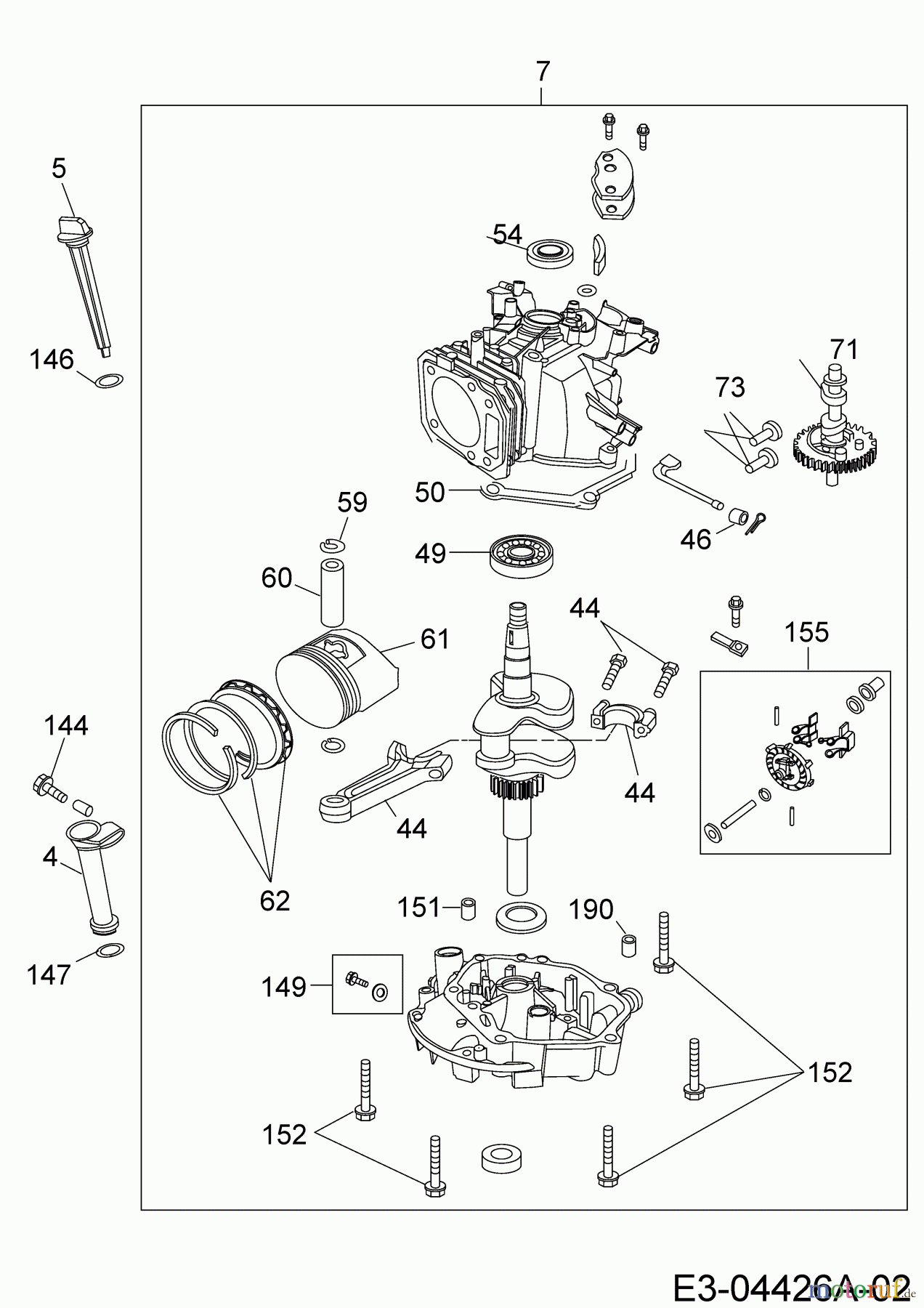

Short block 752Z1P70FHA (2007)

Posizione	Articolo numero	Descrizione
4	751-10334	TUBE-DIPSTICK
5	751-10333	DIPSTICK ASSY.
7	751-10414	SHORT BLOCK ASSEMBLY - 1P70FUA
44	3061-M6-0032	CONNECTING ROD COMPL.
46	751-11574	OIL SEAL, GOVERNOR ARM
49	751-11369	BALL BEARING
50	092.49.409	GASKET, CRANKCASE COVER
54	751-11545	OIL SEAL, CRANKCASE, 38X25X7
59	3061-M6-0029	LOCK RING
60	3061-M6-0030	PISTON PIN
61	3061-M6-0031	PISTON
62	3061-M6-0012	PISTON RING KIT
71	092.49.170	CAMSHAFT ASSY.
73	751-11607	TAPPET
144	710-04980	BOLT M6X35
146	751-11546	O-RING
147	721-04697	O-RING
149	751-10370	OIL DRAIN PLUG AND WASHER ASSY
151	715-04096	DOWEL PIN
152	710-05092	BOLT, FLANGE, 8X50
155	092.49.169	GOVERNOR GEAR ASSY.
190	715-04092
