Deck lift 1 to 25.11.2017 17BIDGHB603 (2018)

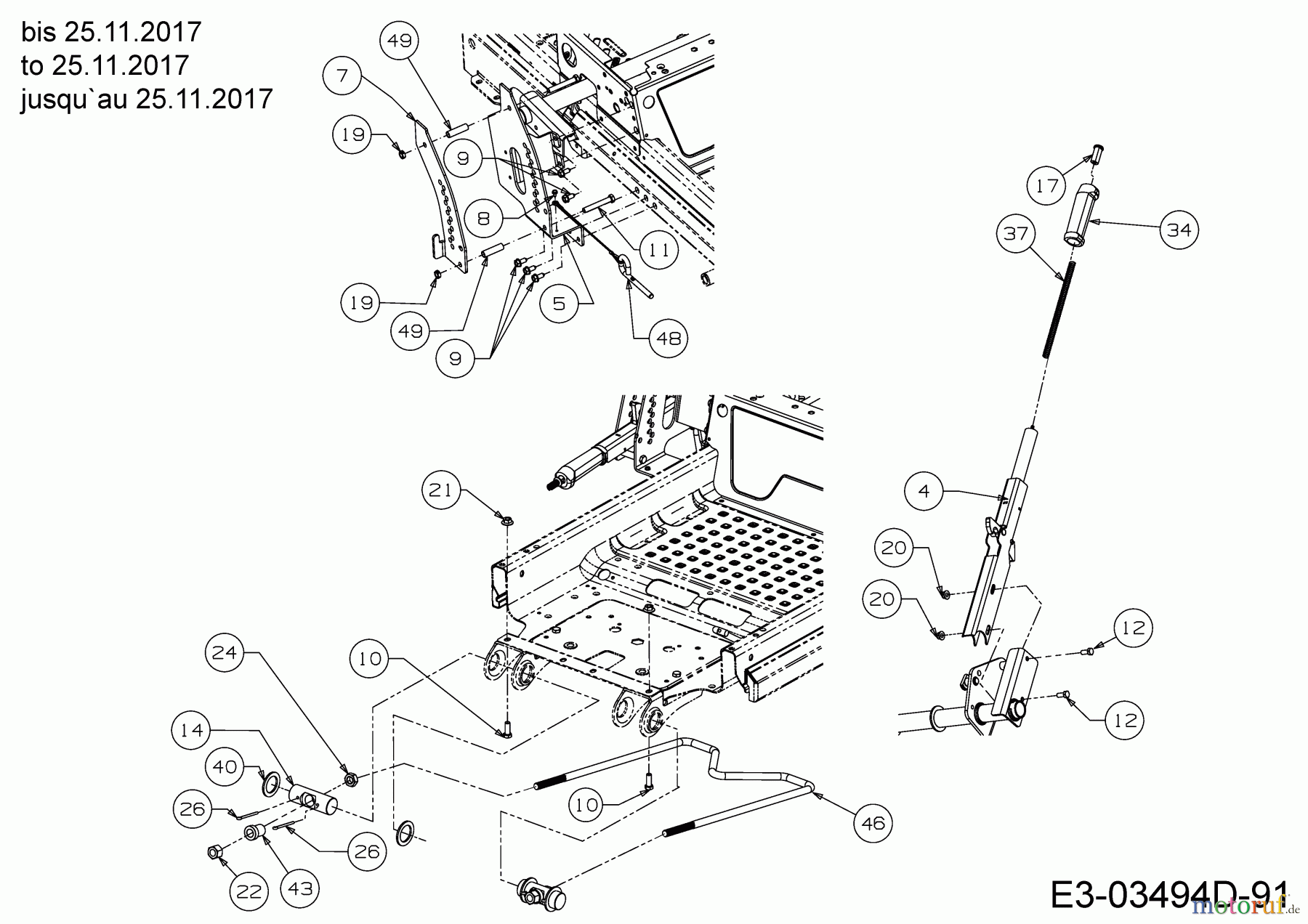

Cub Cadet Zero Turn XZ3 122 17BIDGHB603 (2018) Deck lift 1 to 25.11.2017
PosizioneArticolo numeroDescrizione
1 603-04973A
2 603-05086A
3 603-05087A
4 603-05143AHANDLE ASM LATCH
5 603-05208A
6 647-05027ROD ASM BRAKE W/SPRING
7 703-09936
8 710-0224SCR:AB:#10-16:0.500:HXINDWSH
9 Cub Cadet SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
10 Cub Cadet HHCS:3/8-16:1.00:GR5:STD710-0514HHCS:3/8-16:1.00:GR5:STD
11 710-0859SCREW HHCS:3/8-16:2.50:GR5:STD
12 Cub Cadet SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
13 710-3279SCREW,HEX CAP
14 711-06216ABLOCK-PIVOT / TRUNNION
15 711-06284FERRULE
16 711-0635SCREW INSERT SPRING
17 711-0642ABUTTON-LIFT HANDLE
18 711-0832FERRULE:3/8-24x.375 DIA:HT TRT
19 712-0266ANUT:JAMLK:3/8-16:GR5
20 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
21 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOPLK712-04217NUT:FLGLK:3/8-16:GRF:TOPLK
22 712-05045ANUT 5/8-11
23 712-05046NUT:HEX:1/2-13:NYLOK HD
24 712-3015Nut
25 712-3048NUT:JAM:1/2-13:GR5
26 714-0211Roll pin
27 Cub Cadet PIN-COTTER714-04040PIN-COTTER
28 Cub Cadet PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
29 714-05005PIN:BOW:7/16"-1/2"
30 731-09683BRACKET DECK LIFT RH
32 731-09687SPACER SHAFT
33 731-09707BRACKET DECK LIFT LH
34 731-3158GRIP:HNDL:DECK LIFT
35 732-04587SPR:EXTN:.63 DIA x 4.95 LG
36 732-05096SPRING-BRAKE TENSION
37 732-3097COMP SPRING:.4ID x 8.52 LG
38 Cub Cadet WASK:FLAT:.385 x.870 x.092736-0262WASK:FLAT:.385 x.870 x.092
39 Cub Cadet WASH:THRST:.375x.700x.030736-0314WASH:THRST:.375x.700x.030
40 736-05070WASHER
41 Cub Cadet SCR:SHLDR:1/4-20:0.50:HXINDWSH738-04278SCR:SHLDR:1/4-20:0.50:HXINDWSH
42 741-05059Bearing flange
43 741-05075ABearing flange
44 741-05170FLANGE BEARING
45 747-05592BRod
46 747-05725AROD DECK HANGER
47 747-06259ALINK LIFT ADJUSTMENT
48 747-06355PIN LOCK
49 750-06031SPACER-PULLEY
