Cub Cadet XZ3 122 17BIDGHB603 (2017) Mowing deck B (48"/122cm) Ricambi

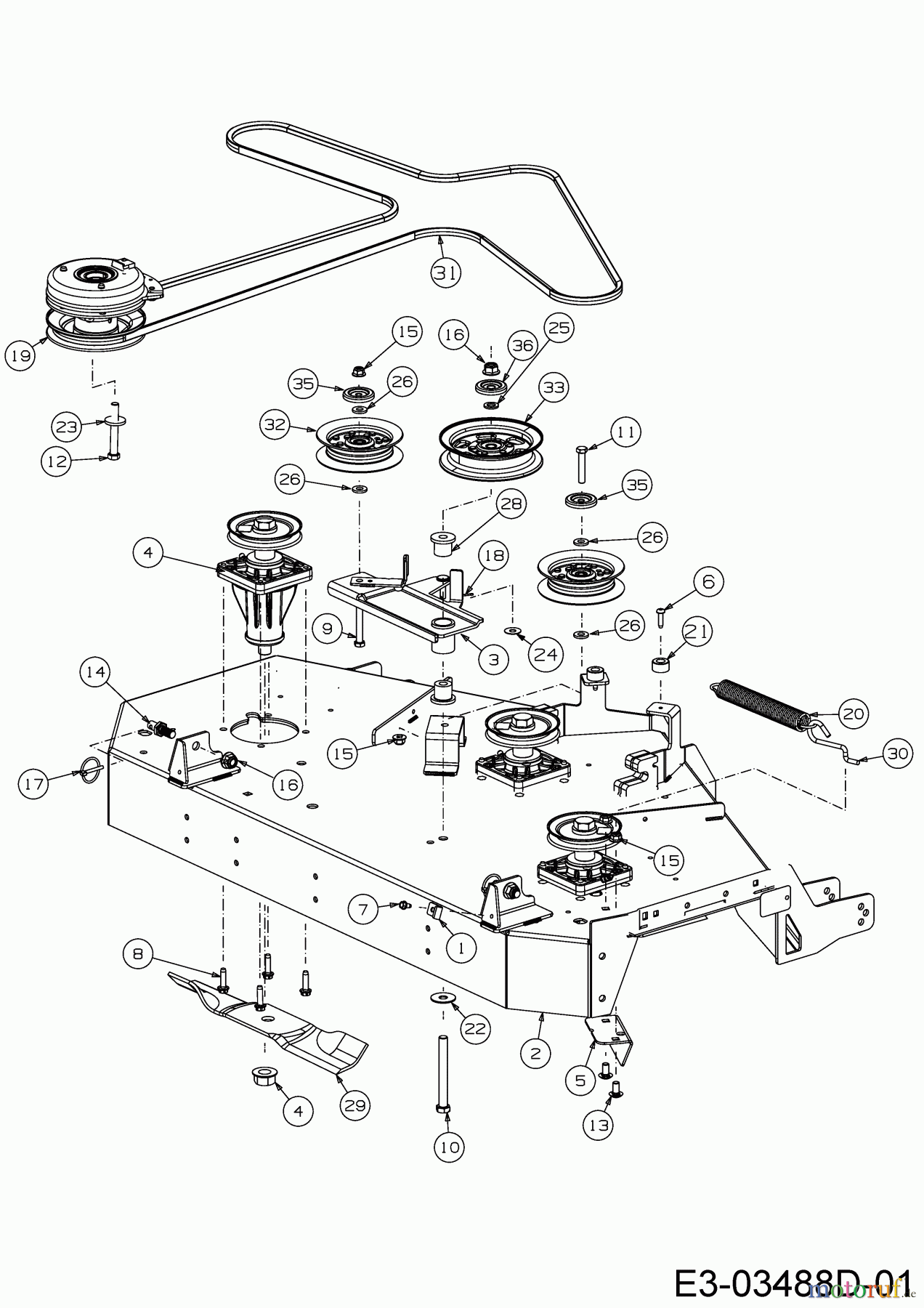

Mowing deck B (48"/122cm) 17BIDGHB603 (2017)

Cub Cadet Zero Turn XZ3 122 17BIDGHB603 (2017) Mowing deck B (48
PosizioneArticolo numeroDescrizione
1 16606BRKT:HOOK:RETAINER
2 603-05097CCYSHELL 48" DECK
3 603-05284
4 618-06994ASPINDLE ASSY.
5 703-09435637BAFFLE
6 710-05074SCR:TT:1/4-20:1.0:PANTRXI:BLK
7 Cub Cadet SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
8 Cub Cadet SCR:TT:5/16-18:1.250:HXINDWSH710-0817SCR:TT:5/16-18:1.250:HXINDWSH
9 710-0859SCREW HHCS:3/8-16:2.50:GR5:STD
10 710-1807SCREW, HEX CAP 1/2-13X4.5 GR5
11 Cub Cadet HHCS:3/8-16:2.00:GR5:STD710-3144HHCS:3/8-16:2.00:GR5:STD
12 710-3157AHEX.SCREW HHCS:7/16-20:3.25GR5
13 Cub Cadet BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
14 711-06200BPIN DECK
15 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
16 712-04150NUT:FLGLK:1/2-13:GRF:NYLON
17 714-0220APIN:LYNCH:.1875
18 Cub Cadet PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
19 717-05188CLU ASM:LONG
20 732-04927SPR:EXT:1.25 OD x 8.5 LG:RZTS
21 735-05147DAMPER
22 736-0208WASHER-FL
23 Cub Cadet WASH:FLAT:.450 x1.250 x.164:HD736-0322WASH:FLAT:.450 x1.250 x.164:HD
24 736-0344WASHER:FLAT:.385x1.000x.030
25 736-04606FLAT WASHER
26 Cub Cadet WASH:FLAT:.406 x.875 x.105736-3004WASH:FLAT:.406 x.875 x.105
28 741-05211SHOULDER SPACER
29 Cub Cadet BLADE, MOWER742-04417BLADE, MOWER
30 747-05608HOOK:ROD:SPRING:DECK
31 754-05012ABELT-V
32 756-05062PULLEY-IDLER-FLAT
33 756-05213IDLER PULLEY 5.0"
35 Cub Cadet CAP:PULLEY:HD783-08389CAP:PULLEY:HD
36 783-09087CAP PULLEY
