Deflector, Deck housing, Mulching flap, Washer nozzle 12AYPV7E650 (2018)

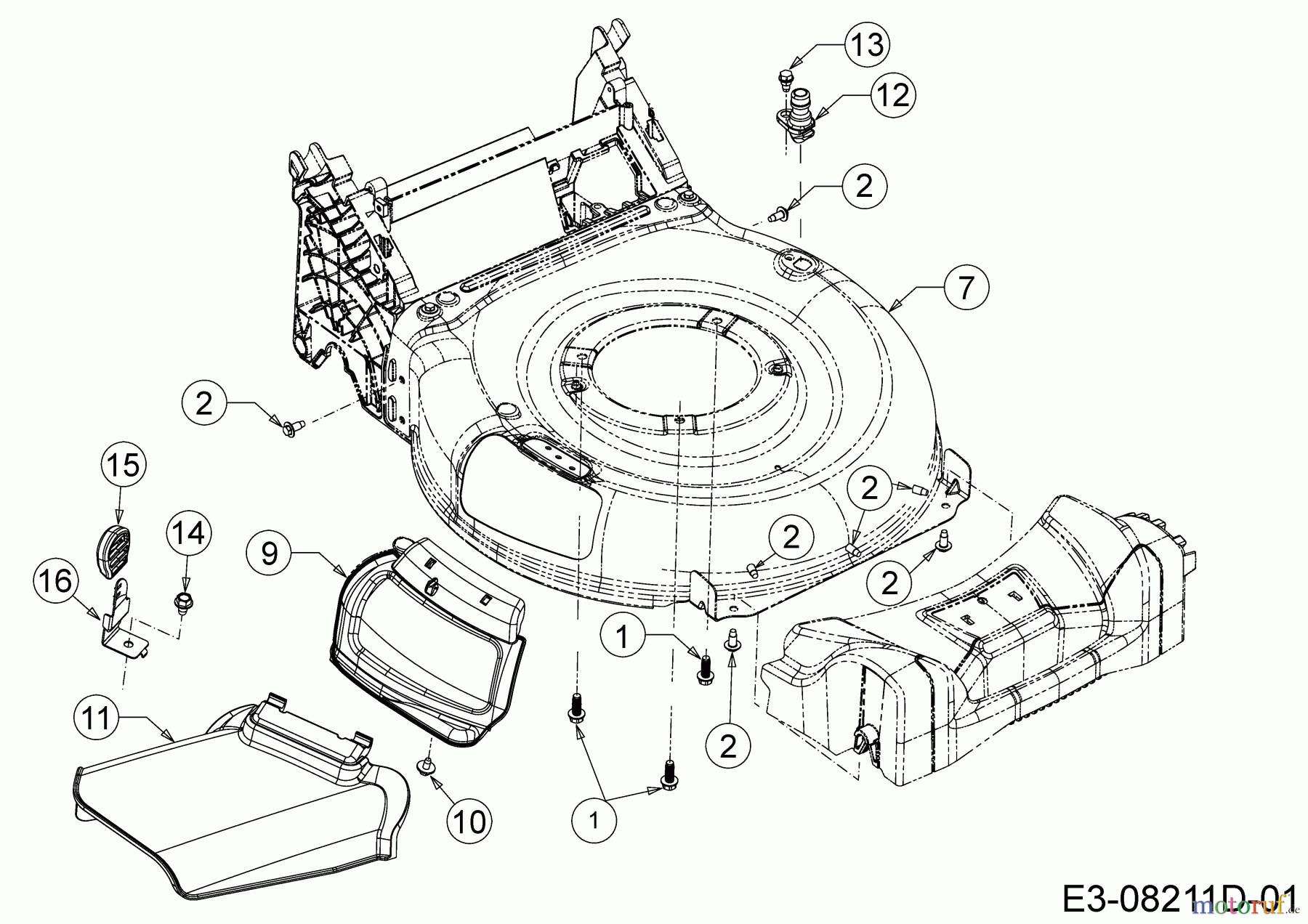

Wolf-Garten Petrol mower self propelled A 530 ASPHWIS 12AYPV7E650 (2018) Deflector, Deck housing, Mulching flap, Washer nozzle
PosizioneArticolo numeroDescrizione
1 Wolf-Garten SCR.TT:3/8-16:1.000:HEXINDWSH710-04683CSCR.TT:3/8-16:1.000:HEXINDWSH
2 Wolf-Garten SCREW:BOSSCREW:5/16-14:.750710-05425ASCREW:BOSSCREW:5/16-14:.750
7 787-03084AWRSHELL 21" 3IN1
9 Wolf-Garten PLUG MULCH ASSY.687-05315PLUG MULCH ASSY.
10 Wolf-Garten SCREW 1/4-20X.50710-05073SCREW 1/4-20X.50
11 Wolf-Garten CHUT:SD:EURO731-09431ACHUT:SD:EURO
12 731-07487NOZ:DECK WSH
13 Wolf-Garten SCR:SHLDR:1/4-20:0.50:HXINDWSH738-04502SCR:SHLDR:1/4-20:0.50:HXINDWSH
14 Wolf-Garten SCREW:TT:1/4-20:0.375:HXINDWSH710-0653SCREW:TT:1/4-20:0.375:HXINDWSH
15 720-04130KNOB-T
16 732-05610LEVER HEIGHT LOCK
