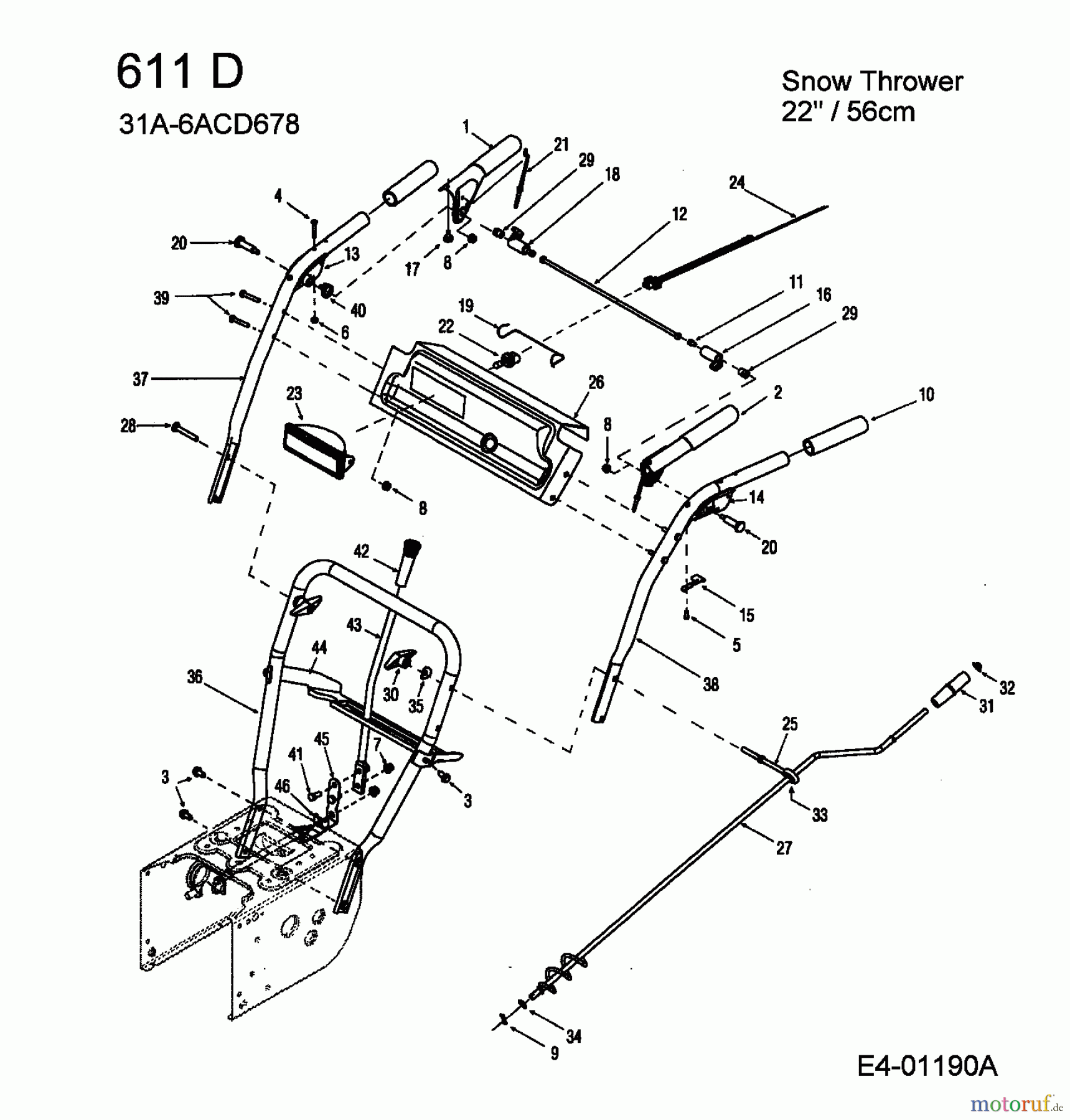

Handle, Crank 31A-6ACD678 (2005)

Posizione		Articolo numero	Descrizione
1		684-04106A	HANDLE ASSY ENGAGEMENT RH
2		684-04105A	HANDLE ASSY ENGAGEMENT LH
3		710-0726	SCR:AB:5/16-12:0.750:HXINDWSH
4		710-1233	SCR:MACH:#10-24:1.375:OVALCSK
5		710-04164	SCREW
6		712-0161	NUT:HEXLK:#10-24:GR2:NYLON
7		712-04063	FLANGED NUT 5/16-18:GRF:NYLON
8		712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
9		714-0104	PIN:COT:.072 DIA x 1.13 LG
10		720-0274	GRIP:1.0 ID x 5.0 LG
11		710-04354	SHCS:1/4-20:.375
12		753-04882	KIT-CLU INTERLOCK
13		631-04134A	HANDLE, CLUTCH LOCK, RH
14		731-04785	HANDLE, CLUTCH LOCK, LH
15		732-04219	Spring
16		731-04896A	CAM, LOCK
17		735-0199A	BUMPER-RUBBER:.62 OD x.22 THK
18		731-04894A	PLATE, LOCK
19		747-1136	RETAINING BRACKET: HEADLAMP
20		738-04122	SCR:SHLDR:.437x 1.345:1/4-20
21		746-0778	THREADED ROD
22		725-1658	BULB HEADLAMP: 12V,27W:#890
23		725-1672	HOUSING:LAMP/LENS ASSY:#890
24		725-04220	CORD ASSY
25		747-04263	BOLT-EYE
26		790-00100	DASH PANEL
27		684-04104	CRANK ASM-CHUTE
28		710-0572	BOLT:CRG:5/16-18:2.50:GR1
29		712-04081A	NUT:HEX:1/4-20:SHLDR
30		720-0284	WING NUT
31		720-0201A	KNOB:CRK:1.00 DIA x 3.2 CHUTE
32		726-0100	CAP
33		735-0234	GROM:RUBBER:.44 IDx.94 ODx.50
34		736-0185	WASH-FLAT:.375x.738x.063
35		736-0451	WASH:SDL:.320 x.93 x.060
36		749-04138	LOWER HANDLE
37		749-04141	HANDLE UPPER RH
38		749-04142	HANDLE UPPER LH
39		710-0606	SCREW HHCS:1/4-20:1.50:GR5:STD
40		732-04238	SPRING:TORSION:0.8156IDx.3038
41		710-0376	HHCS:5/16-18:1.00:GR5:STD
42		720-0223	GRIP: .5 ID x 3.45
43		747-04243	LEVER ASSY-SHIFT
44		790-00099638	PANEL, SPEED SELECTOR
45		732-04205	SPRING SHIFT LEVER
46		790-00156	SPACER-PULLEY
