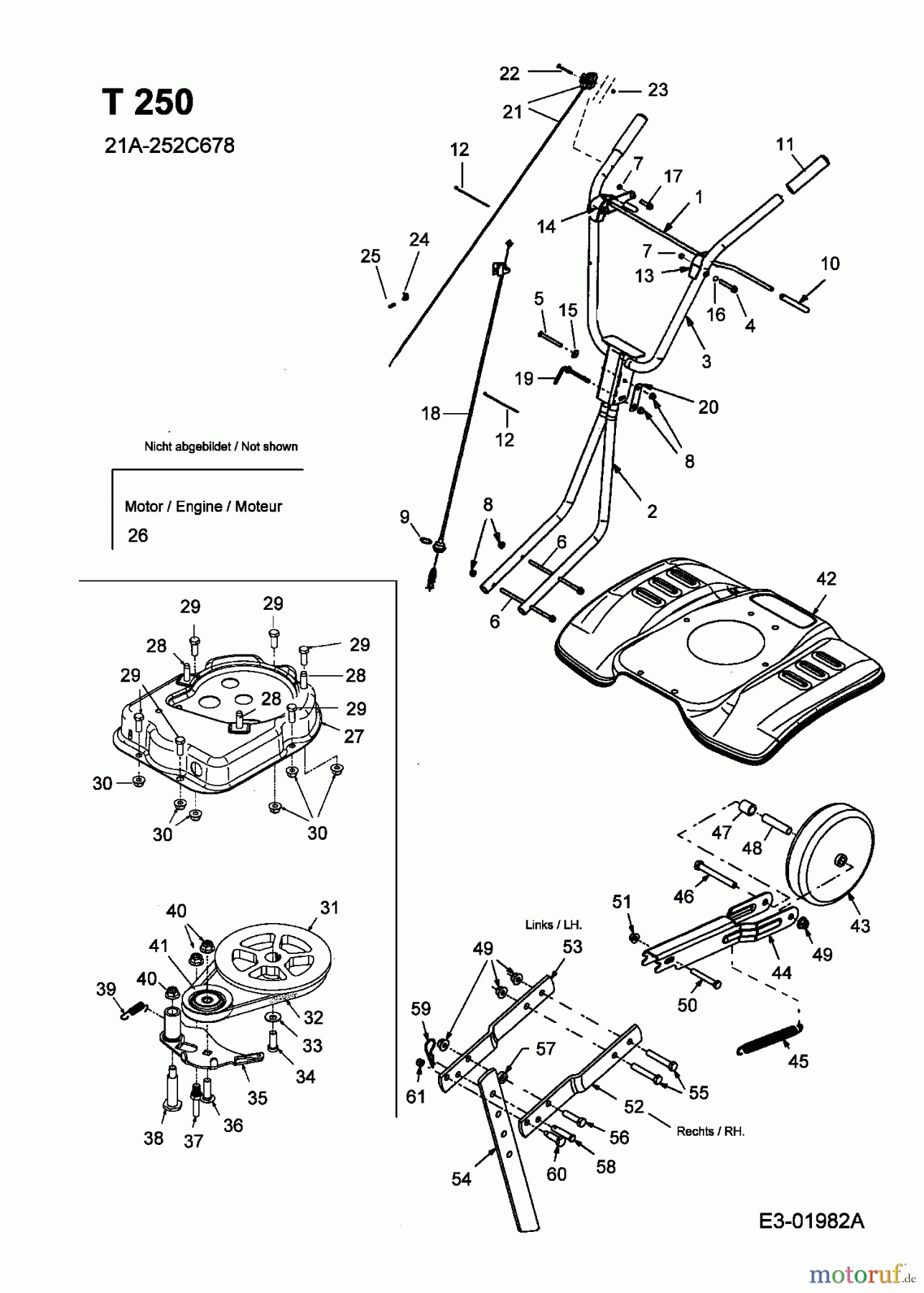

Basic machine 21A-252C678 (2005)

Posizione		Articolo numero	Descrizione
1		647-04047	BAIL-CLUTCH
2		649-04029	LOWER HANDLE
3		649-04030	Upper handle
4		710-0136	HHCS:1/4-20:1.75:GR5:STD
5		710-0189	HHCS:5/16-18:3.00:GR5:STD
6		710-04398	HEX BOLT
7		712-0324	NUT:HEXLK:1/4-20:GR8:NYLON
8		712-04063	FLANGED NUT 5/16-18:GRF:NYLON
9		716-0102	RING SNAP:1.00 DIA SHAFT
10		720-0269	GRIP:HNDL:CLU
11		720-0274	GRIP:1.0 ID x 5.0 LG
12		725-0157	CBL:TIE: 3/16 X .05 X 7.4
13		731-05095	BAILHOLDER LH
14		731-05096	BAIL HOLDER RH
15		736-0242	PLATE WASHER .340X.872X.060
16		736-0463	WASH:FLAT: .250 x .630 x .052
17		738-1023	SHOULDER SCREW
18		746-04180	CLUTCH KABEL, FORW
19		786-0340	ADJUSTING LEVER
20		786-0341	786-0341
21		746-04191	THROTTLE CONTROL
22		710-0641	SCREW HHCS:1/4-20:2.25:GR5:STD
23		712-0324	NUT:HEXLK:1/4-20:GR8:NYLON
24		751B221535	CLAMP:CASING
25		710-0899A	SCR:#10-32:.62:HXSEMS:GR5.1
26		752B0367B1	ENGINE
27		786-04222	DRIVE HOUSING ASSY
28		710-1315	SCREW TT:3/8-16:1.25HXINDWSH:S
29		710-0514	HHCS:3/8-16:1.00:GR5:STD
30		712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
31		756-04145	PULLEY
32		754-04061	V-Belt
33		736-0105	SPRING WASHER .401 x.870 x.063
34		710-04453	SCREW
35		686-04054	FLAT IDLER BRACKET
36		710-04396	CARRIAGE BOLT
37		738-04139	BOLT
38		738-04131	SHOULDER SCREW
39		732-0418	SPR:EXTN:.38 OD X 2.10
40		712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
41		756-04163	PULLEY-IDLER-FLAT
42		786-04256	TINE SHIELD MTD RED
43		734-1988	WHEEL COMP. 7X1.8
44		786-04232	WHEEL BRACKET FRONT
45		732-0384	SPRING EXTENSION
46		710-3130	SCREW HHCS:3/8-16:3.25:GR8:STD
47		750-04432	SPACER
48		749-04204	SHAFT-WHEEL AXLE 1"X20.46
49		712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
50		710-0395	SCRE.HHCS:5/16-18:2.25:GR2:STD
51		712-04063	FLANGED NUT 5/16-18:GRF:NYLON
52		786-04238	BRACKET-TAILPIECE-RH
53		786-04239	BRACKET-TAILPIECE-LH
54		786-04257	SHAFT ASSY-WHL BRKT
55		710-3011	HHCS:3/8-16:2.25:GR5:STD
56		710-0520	HHCS:3/8-16:1.50:GR5:STD
57		750-04380	SPACER
58		711-0415	PIN:CLEVIS: .375 x 1.75
59		714-3020	PIN-COTTER
60		738-04125	SCR:SHLD:.374 DIA x 1.05 LG
61		712-0324	NUT:HEXLK:1/4-20:GR8:NYLON
