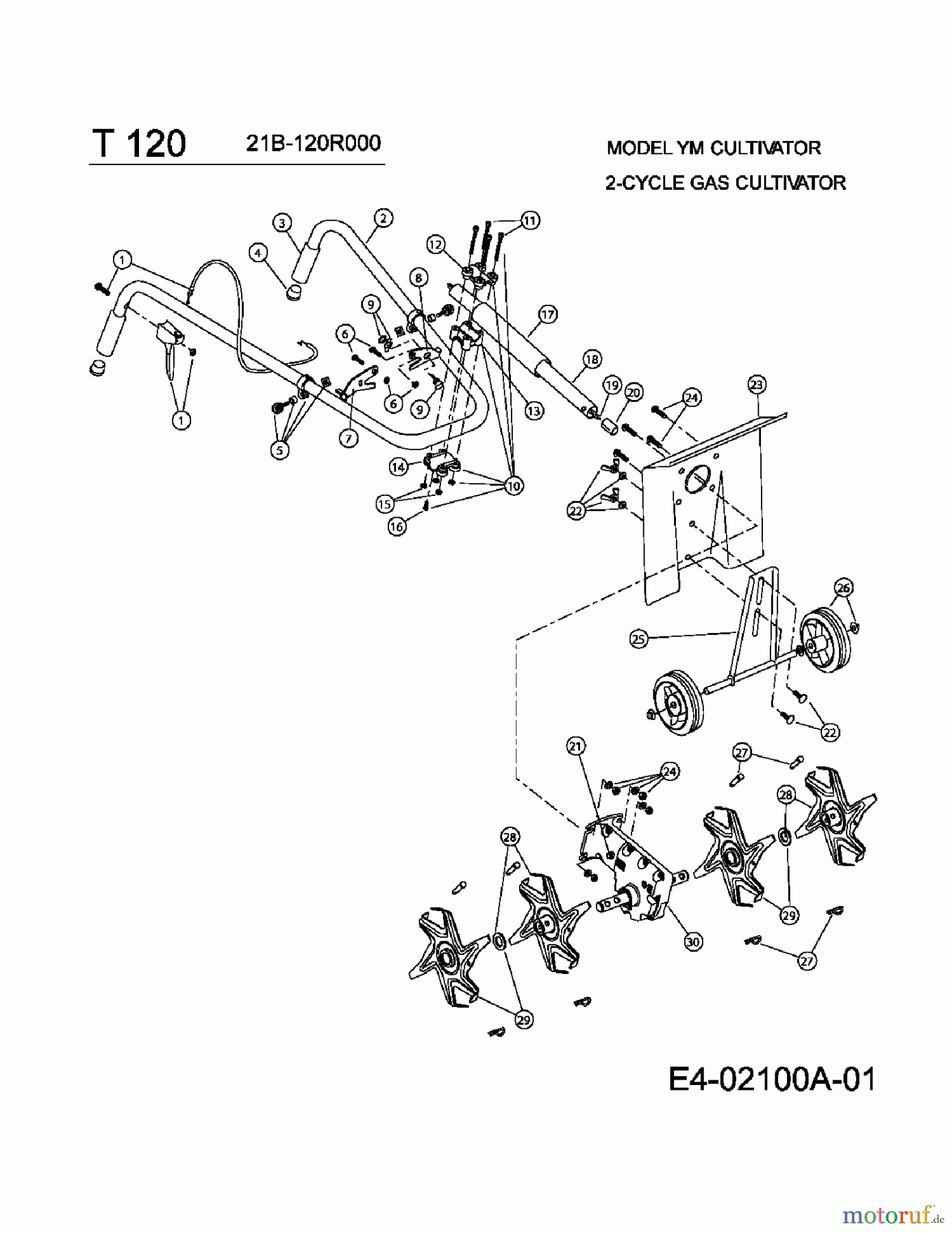

Basic machine 21B-120R000 (2004)

Posizione		Articolo numero	Descrizione
1		791-181573	THROTTLE TRIGGER & CABLE ASSY
2		791-180942	HANDLE BAR w/CLAMP ASSY
3		791-612831	GRIP
4		791-612021	TUBE CLOSURE
5		791-181503	CLAMP ASSY
6		791-147501	ENGINE BRACKET MOUNTING HARDW.
7		791-181574	ENGINE MOUNT BRACKET RH
8		791-181504	ENGINE MOUNT BRACKET LH
9		791-682035	SWITCH ASSY.
10		791-683295	HANDLE BRACKET ASSEMBLY
11		791-181811	Screw
12		791-181812	UPPER HANDLE CLAMP
13		791-181813	MIDDLE HANDLE CLAMP
14		791-181814	LOWER HANDLE CLAMP
15		791-181815	Nut
16		791-145569	Screw
17		791-181575	GRIP
18		791-180943	DRIVE HOUSING
19		791-181577	SHF: FLEX 15.44":SS
20		791-181578	RETAINER SLEEVE
21		791-180288	BOLT, RETAINER SLEEVE
22		791-147467	HARDWARE WHEEL BRKT. MOUNTING
23		791-182781
24		791-181579	GUARD MOUNTING HARDWARE SET
25		791-180320	WHEEL BRACKET
26		791-180944	WHEEL ASSY
27		791-147473	STUD-CLUTCH STOP
28		791-182729	TINE LT/OUTER OR RT/INNER
29		791-182730	TINE LT/OUTER OR RT/INNER
30		791-147474	GEAR BOX ASSY
