Toro 38587 - Power Clear Snowthrower, 2011 (311000001-311020000) ROTOR DRIVE ASSEMBLY Ricambi

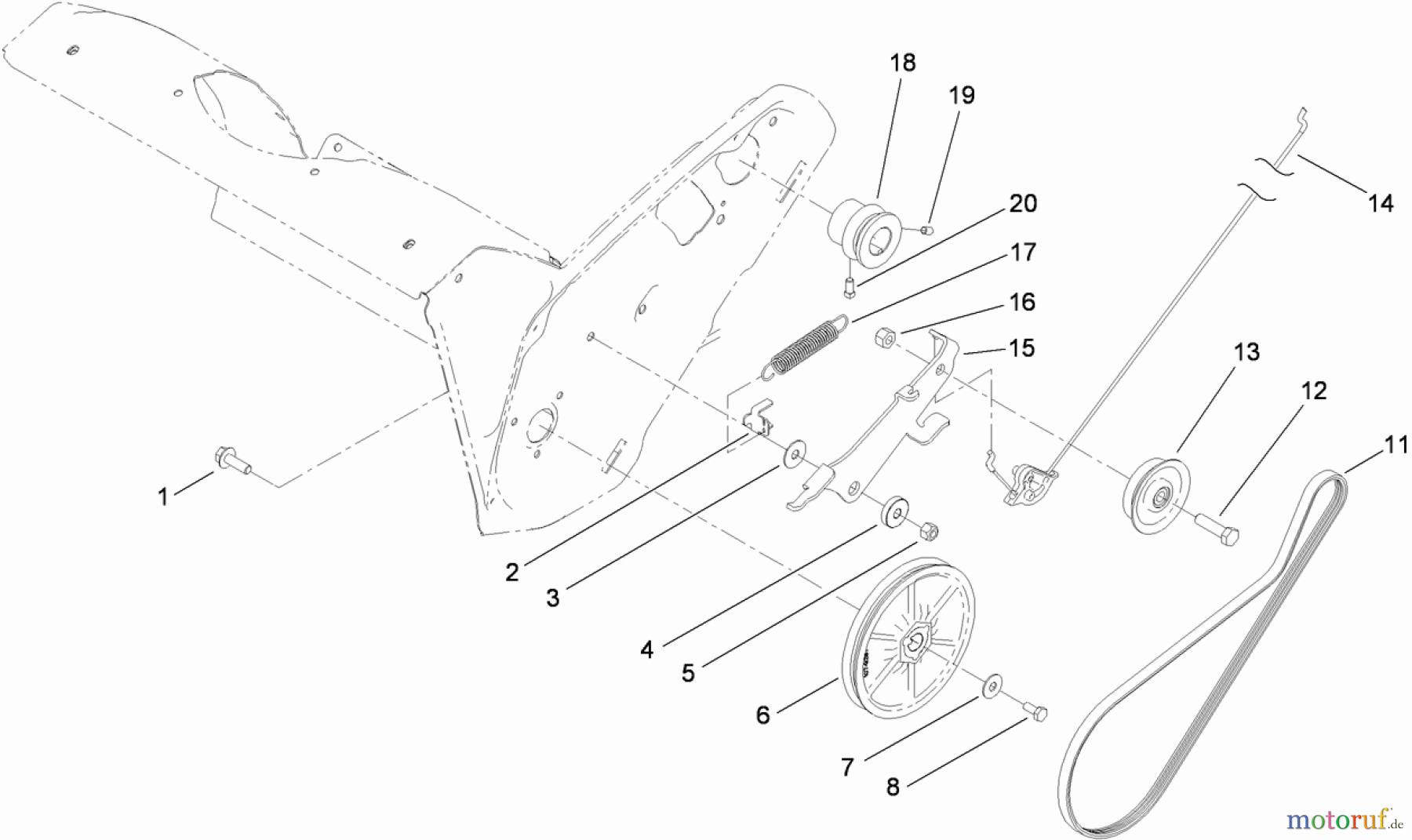

ROTOR DRIVE ASSEMBLY 38587 - Toro Power Clear Snowthrower, 2011 (311000001-311020000)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38587 - Toro Power Clear Snowthrower, 2011 (311000001-311020000) ROTOR DRIVE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR3234-29SCREW-HHF
2 TR108-4938CLIP-SPRING, BRAKE
3 TR108-4925WASHER
4 TR108-4916BUSHING-PIVOT
5 Toro MutterTR3296-29Mutter
6 TR107-9287ROTOR PULLEY ASM
7 TR3290-456Tellerscheibe
8 TR110-9381SCREW-HH
11 TR108-4921BELT-DRIVE
12 TR323-29Schraube
13 TR114-3785PULLEY-IDLER
14 TR117-9145CABLE-CLUTCH
15 TR114-3782ARM-IDLER
16 TR32152-2NUT-LOCK, CONE
17 TR114-3788121-6630
18 TR107-9291PULLEY-3 GROOVE
19 TR3245-32Schraube
20 TR3241-7Schraube
