Toro 38515 (2450) - CCR 2450 GTS Snowthrower, 2010 (310006876-310999999) SHROUD AND CONTROL PANEL ASSEMBLY Ricambi

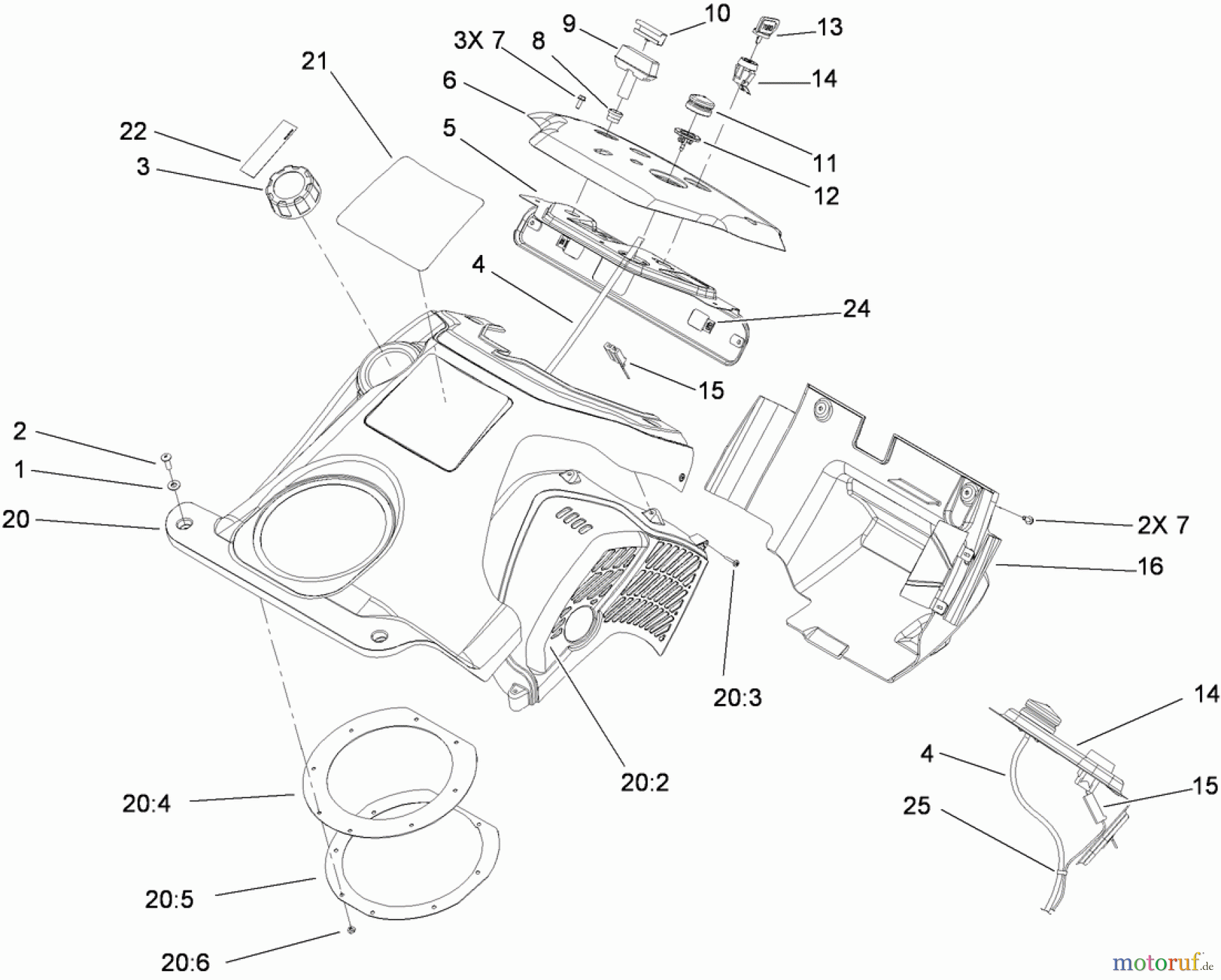

SHROUD AND CONTROL PANEL ASSEMBLY 38515 (2450) - Toro CCR 2450 GTS Snowthrower, 2010 (310006876-310999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38515 (2450) - Toro CCR 2450 GTS Snowthrower, 2010 (310006876-310999999) SHROUD AND CONTROL PANEL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR3256-22Scheibe
2 TR3250-32Schraube
3 TR104-4133GAS CAP ASM
4 TR98-1372HOSE-PRIMER
5 TR105-1999-03Konsole
6 TR105-3521PANEL-CONTROL
7 TR32144-112Schraube
8 TR55-9410Seilfuehrung
9 TR612825Startergriff
10 TR612824CLIP-STARTER
11 Toro PrimerknopfTR66-7460Primerknopf
12 Toro Primer-KoerperTR44-2750Primer-Koerper
13 Toro SchluesselTR63-8360Schluessel
14 TR40-5940Zuendschloss
15 TR218-532Steckverbindung
16 TR108-7335LOWER SHROUD/BAFFLE ASM
20 TR110-2187UPPER SHROUD ASM
20:2 TR108-7333SHIELD-HEAT
20:3 TR94-4496SCREW-PPH
20:4 TR105-3543SEAL-CHUTE
20:5 TR55-9540-03Halter
20:6 TR3290-474Hutmutter
21 TR114-9268DECAL
22 TR104-9748
24 TR100-9889Mutter
25 TR250-4TIE-CABLE
