Toro 38282 (418 ZE) - Power Clear 418 ZE Snowthrower, 2013 (SN 313000001-313999999) HANDLE ASSEMBLY Ricambi

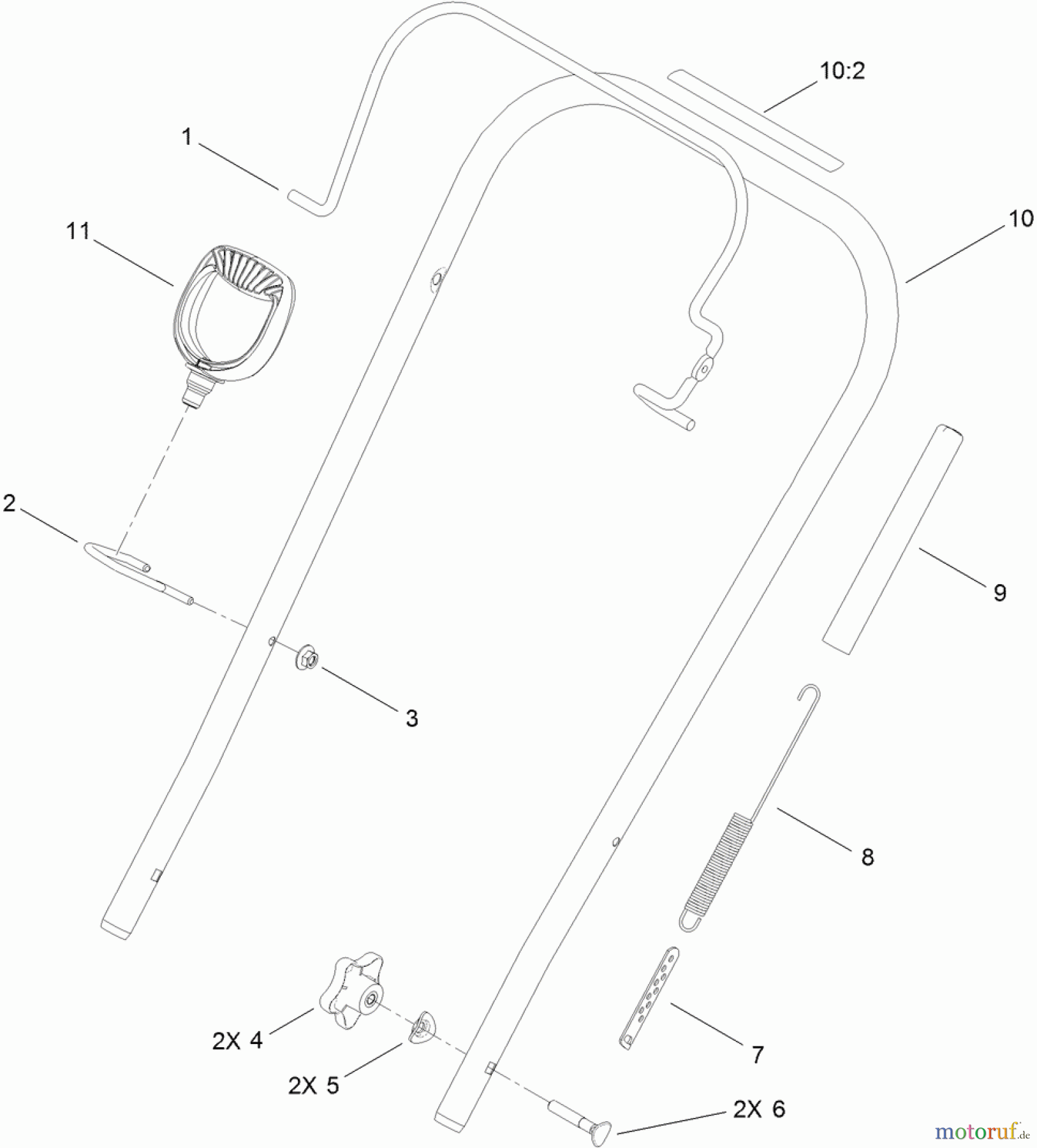

HANDLE ASSEMBLY 38282 (418 ZE) - Toro Power Clear 418 ZE Snowthrower, 2013 (SN 313000001-313999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38282 (418 ZE) - Toro Power Clear 418 ZE Snowthrower, 2013 (SN 313000001-313999999) HANDLE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR117-7718-03BAIL-CLUTCH
2 TR120-9804GUIDE-ROPE
3 TR114-3778NUT-LOCK, NI
4 TR106-4161KNOB-HANDLE
5 TR107-3844Formscheibe
6 Toro SCREW-HANDLETR92-2260SCREW-HANDLE
7 TR71-5330Stellplatte
8 TR119-2913SPRING-CLUTCH
9 TR114-3796COVER-SPRING
10 TR117-7743UPPER HANDLE ASM
10:2 TR117-7713DECAL-SAFETY
11 TR117-9104HANDLE-RECOIL, BLUE
