Toro 38085C (824) - 824 Snowthrower, 1987 (7000001-7999999) ENGINE, TECUMSEH MODEL NO. HM80-155291L Ricambi

ENGINE, TECUMSEH MODEL NO. HM80-155291L 38085C (824) - Toro 824 Snowthrower, 1987 (7000001-7999999)

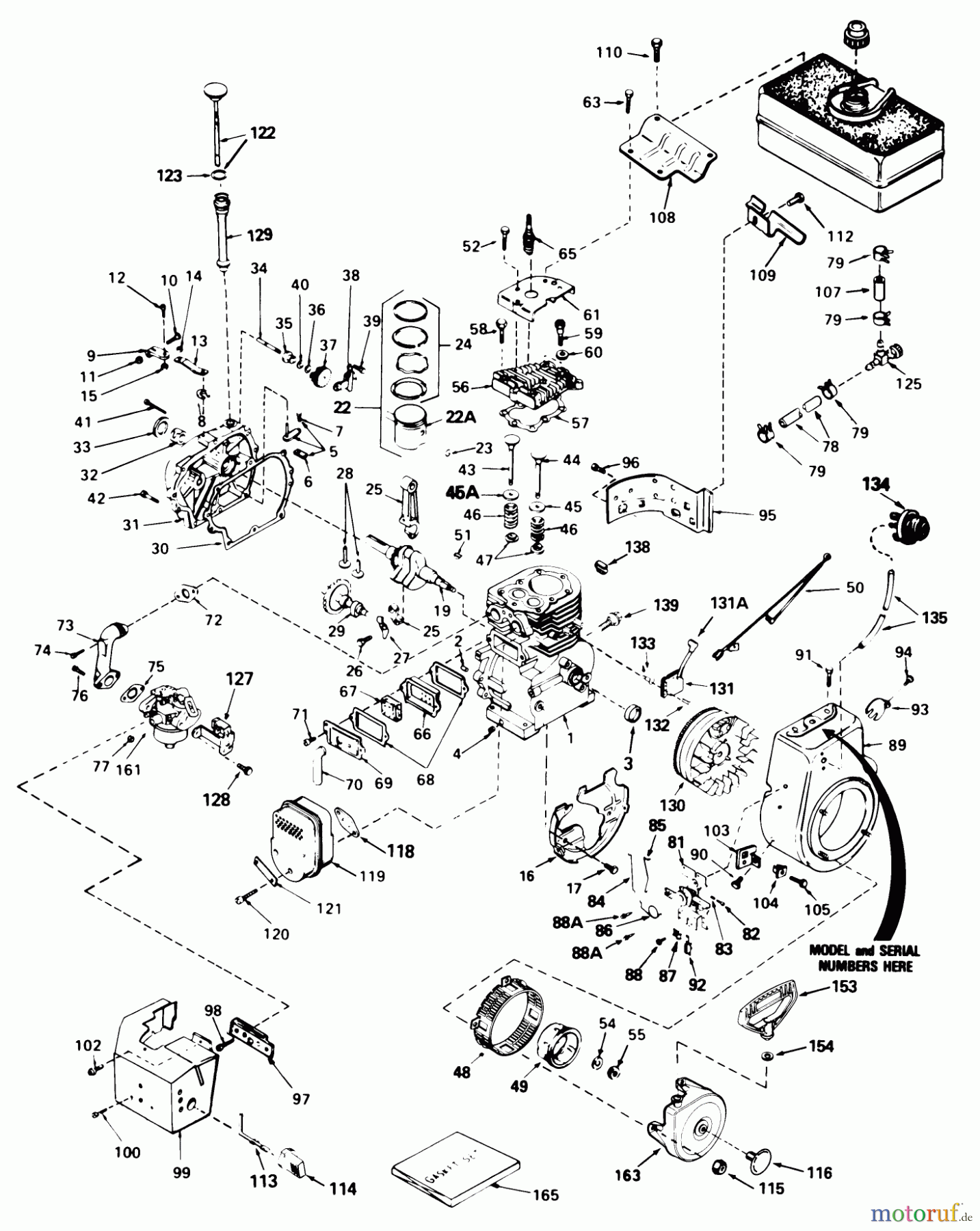

Toro Neu Snow Blowers/Snow Throwers Seite 1 38085C (824) - Toro 824 Snowthrower, 1987 (7000001-7999999) ENGINE, TECUMSEH MODEL NO. HM80-155291L
PosizioneArticolo numeroDescrizione
1 TC35385ZYLINDER
2 TC27652STIFT
33 TC35319SIMMERRING
4 TC27642PIPE PLUG
5 TC30699CGOVERNOR ROD
6 TC30700REGLERHEBEL
7 TC650494SCHRAUBE
8 TC29642SICHERUNGSRING
9 TC29916KLAMMER
10 TC29826SCHRAUBE
11 TC29216MUTTER
12 TC650548SCREW
13 TC33454USE 33454A
14 TC29918WASHER
15 TC30322MUTTER
16 TC37853BAFFLE
112 TC650561SCHRAUBE
19 TC35372CRANKSHAFT*
22 TC40049PISTON ASSY STD
22 TC34553PISTON ASSY 010
22 TC34554PISTON ASSY 020
22A TC40049PISTON ASSY STD
22A TC34330AUSE 40012
22A TC34331APISTON & PIN 20
23 TC27888RET RING
24 TC40049PISTON ASSY STD
24 TC34333KOLBENRINGSATZ
24 TC34334RING SET 020
25 TC36897ACONN ROD
26 TC650882SCREW
27 TC35374OELSCHLEUDER
28 TC34034VENTILSTOESSEL
29 TC35375NOCKENWELLE
30 TC37342GASKET TC-37342
31 TC35376ZYLINDERDECKEL
32 TC35377BUSHING
33 TC35319SIMMERRING
34 TC37587GOV SHAFT
35 TC30588AREGLERSPULE
36 TC29193SICHERUNGSRING
37 TC35378ZAHNRAD
38 TC33369HALTER
39 TC650836SCREW
40 TC30590AWASHER
41 TC650833SCHRAUBE
42 TC650832SCHRAUBE
43 TC34035EINLASSVENTIL
43 TC34036EINLASSVENTIL
44 TC27878AEXH VALVE STD
44 TC27880AAUSLASSVENTIL +
45 TC27882VENTILTELLER
45A TC34689INT VALVE SEAL
46 TC27881VALVE SPRING
47 TC32581VENTILTELLER
48 TC35446SIEB
49 TC37966STARTER CUP
50 TC35253GROUND WIRE
51 TC32589KEIL
52 TC650738SCREW
54 TC650880WASHER
55 TC650881MUTTER
56 TC34030USE 00034030A
57 TC34923ADICHTUNG
58 Toro SCHRAUBETC6021ASCHRAUBE
59 TC650727SCREW
60 TC650691SCHEIBE
61 TC33272DDECKEL
63 TC650273SCHRAUBE
65 TC35395ZUENDKERZE
66 TC28423BREATHER
67 TC28424ENTLUEFTEREINSATZ
68 TC27896USE 27896A
69 TC28425VALVE COVER
70 TC27627TUBE
96 TC650128SCHRAUBE
72 TC27915GASKET
73 TC33877EINLASSROHR
74 TC650378SCREW
75 TC33263DICHTUNG
76 TC30088ASCHRAUBE
115 TC29752NUT
78 TC30705FUEL LINE
79 TC26460CLAMP
81 TC34664VERGASERVERKLEIDUNG
82 TC650549SCREW
83 TC31342FEDER
84 TC34667REGLERGELENK
85 TC33878REGLERGELENK
86 TC34663FEDER
87 TC27793KLEMME
100 TC28942SCREW
88A TC650821SCHRAUBE
89 TC37961BLOWER HSG
90 TC29747BSCHRAUBE
91 TC650788SCREW
92 TC610973TERMINAL
93 TC33013DECKEL
94 TC650760SCHRAUBE
95 TC33273AVERLKLEIDUNG
96 TC650128SCHRAUBE
97 TC33377USE 37659
98 TC650767SCHRAUBE
99 TC36547AVERGASERDECKEL
100 TC28942SCREW
102 TC650765SCHRAUBE
103 TC34126HALTER
104 TC28545GROMMET
105 TC650643SCREW
107 TC29774KRAFTSTOFFLEITUNG
108 TC34154TANKHALTER
109 TC34155TANKHALTER
110 TC650665SCHRAUBE
112 TC650561SCHRAUBE
113 TC34586CHOKE ROD
114 TC35438KNOPF
115 TC29752NUT
116 TC35392STARTER PLUG
118 TC35865DICHTUNG
119 TC35056SCHALLDAEMPFER
120 TC792093SCHRAUBE
121 TC31588LOCK PLATE
122 TC34011ASIEHE 34011B-TEE
123 TC33590O-RING
125 TC32961USE 35857
127 TC34587BBRACKET
128 TC651081SCHRAUBE
129 TC33893AEINFUELLROHR
130 TC611091FLYWHEEL
131 TC35135BLAMINATION
131A TC610118KERZENSTECKER
132 TC650814SCREW
133 TC650872USE 651024
134 TC34814PRIMER
135 TC32180CPRIMERLEITUNG
138 TC29443KLEMME
139 TC650820SCHRAUBE
153 TC590574STARTERGRIFF
154 TC650168SCHEIBE
161 TC632334SIEHE 632334A-TEE
163 TC590689BSTARTER
165 TC33279LDICHTUNGSATZ
