Toro 37771 - Power Max 726 OE Snowthrower, 2013 (SN 313000001-313999999) HANDLE ASSEMBLY Ricambi

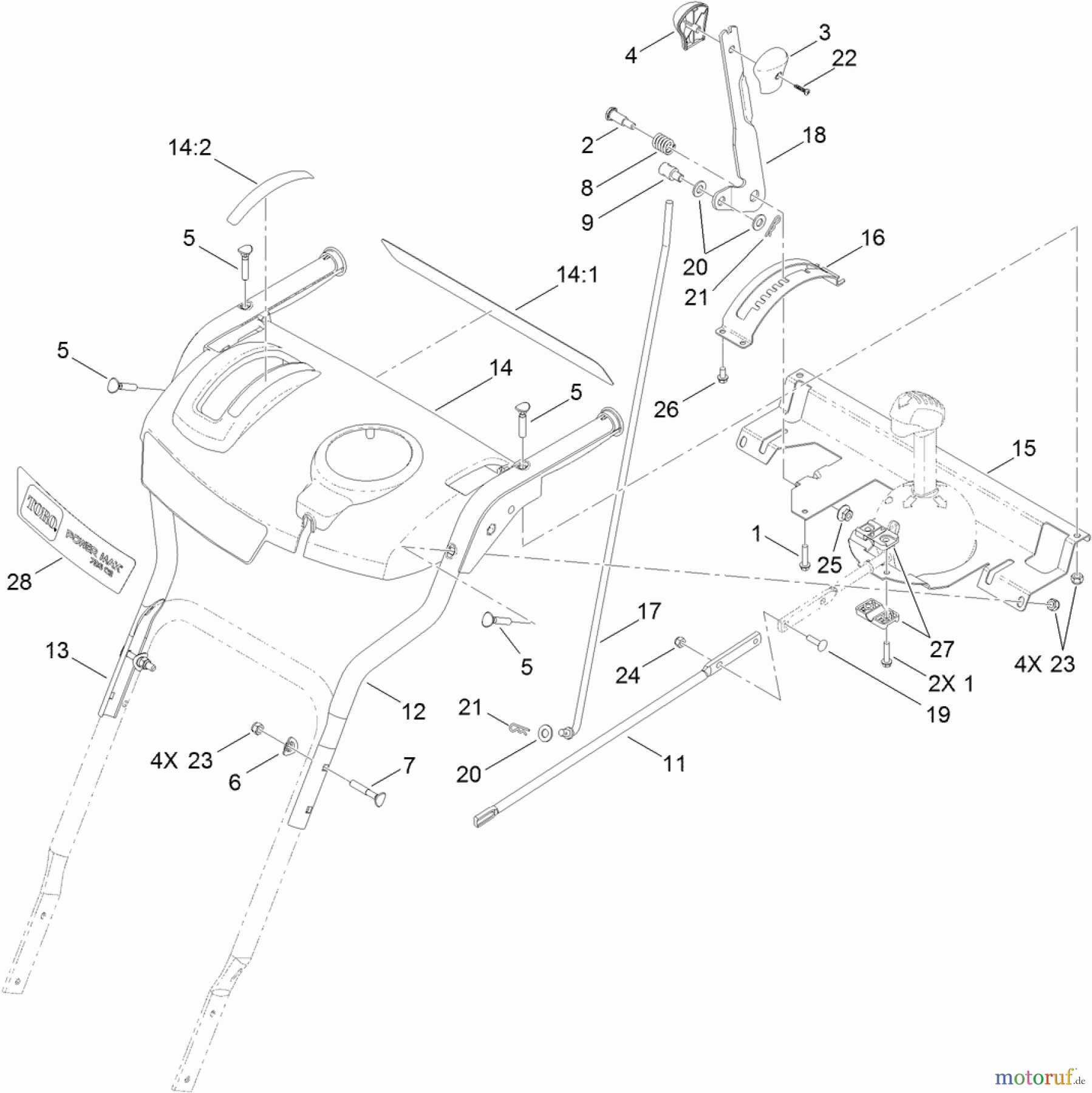

HANDLE ASSEMBLY 37771 - Toro Power Max 726 OE Snowthrower, 2013 (SN 313000001-313999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 37771 - Toro Power Max 726 OE Snowthrower, 2013 (SN 313000001-313999999) HANDLE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR46-8092Schraube
2 TR63-2650Bolzen
3 TR105-9999KNOB-SHIFT, LH
4 TR106-4423KNOB-SHIFT, RH
5 TR107-3018Schraube
6 TR107-3844Formscheibe
7 TR112-8876SCREW-HANDLE
8 TR108-7313SPRING-COMPRESSION
9 TR110-3446TRUNNION-ROD
11 TR120-3881ROD-CHUTE, FRONT
12 TR120-7173-03HANDLE-UPPER, LH
13 TR120-7174-03HANDLE-UPPER, RH
14 TR120-7194PANEL-CONTROL, MASTER
14:1 TR121-6845
14:2 TR121-6846
15 TR120-9251-03SUPPORT-PANEL, CONTROL
16 TR120-9258-03MOUNT-SELECTOR, SPEED
17 TR121-6829ROD-SELECTOR, GEAR
18 TR121-1242-03SELECTOR-SPEED
19 TR3229-30SCREW-CARR
20 Toro WASHER-FLATTR3256-24WASHER-FLAT
21 TR3290-307Stift
22 TR94-4496SCREW-PPH
23 TR3296-72Stopmutter
24 TR3296-73MUTTER F. KLEMME
25 TR32128-13Flanschmutter
26 TR46-8093SCREW-PLASTITE
27 TR105-9987SUPPORT-ROD
28 TR121-1241DECAL-MODEL
