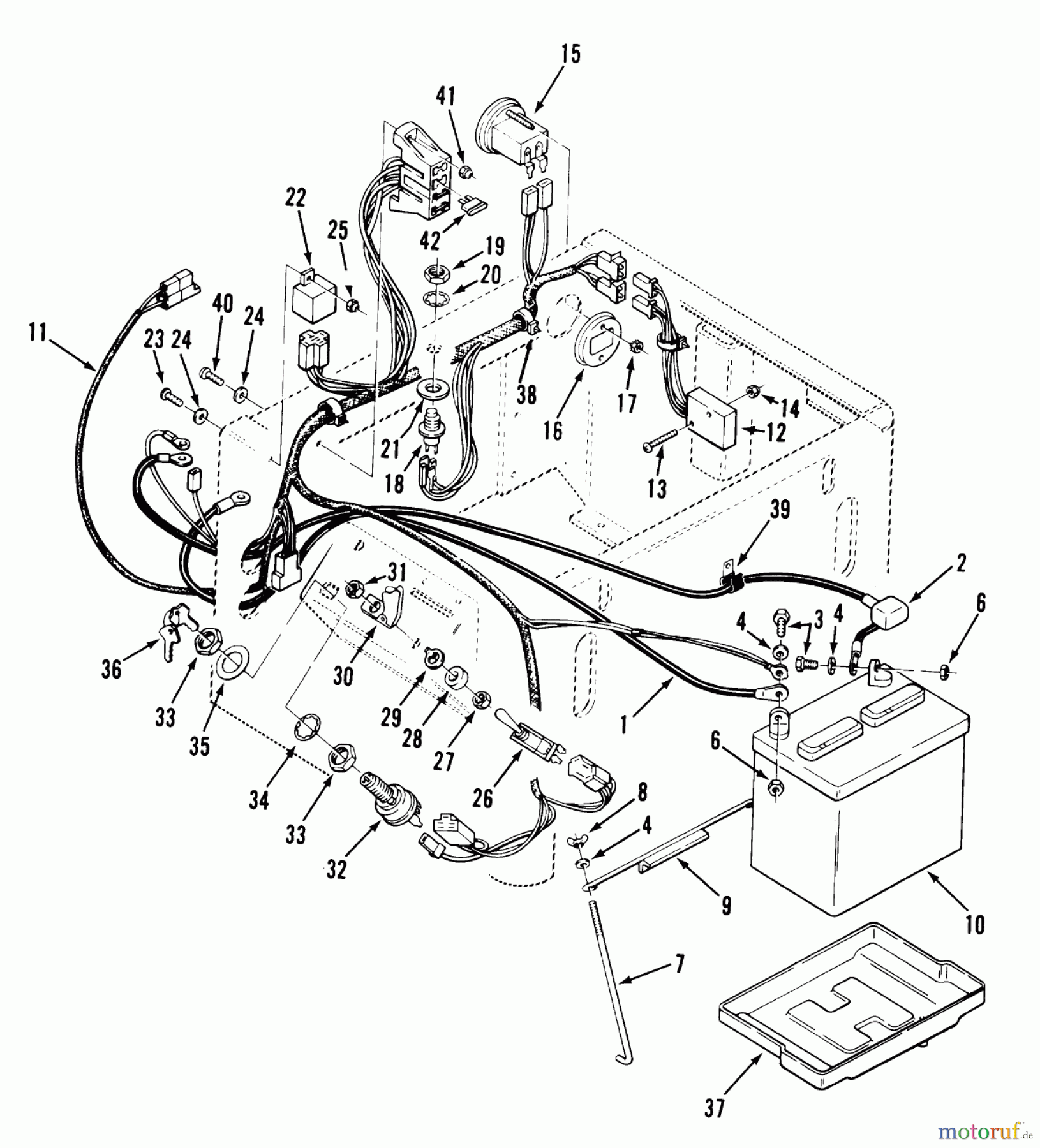

Toro Y1-16OE01 (616-Z) - 616-Z Tractor, 1989 SECTION 11-ELECTRICAL SYSTEM Ricambi

SECTION 11-ELECTRICAL SYSTEM Y1-16OE01 (616-Z) - Toro 616-Z Tractor, 1989

Toro Neu Mowers, Zero-Turn Y1-16OE01 (616-Z) - Toro 616-Z Tractor, 1989 SECTION 11-ELECTRICAL SYSTEM
PosizioneArticolo numeroDescrizione
1 TR111075Kabel
2 TR10955328-8080
3 TR908003321-4
4 TR920007SCHEIBE 20
6 TR9156613296-42
7 TR113969HOOK-BATTERY RETAIN
8 TR116497
9 TR113010Batteriehalter
10 TR105842BATTERIE
11 TR115676DISCONTINUED
12 TR116237DISCONTINUED
13 TR9107973250-23
14 TR915740MUTTER
15 TR113469GAUGE-HOURMETER
16 TR114017BRKT-GAUGE MOUNTING
17 TR91596232149-9
18 TR116194SWITCH-PLUNGER
19 TR116238HEX-NUT 5/8-24 F/W 116194
20 TR920160Zahnscheibe
21 TR9200133256-27
22 TR116397Schaltrelais
23 TR910794BOLT
24 TR920005WASHER
25 TR915740MUTTER
26 TR115643SWITCH-ELEC. CLUTCH
27 TR105805218-498
28 TR920242Scheibe 2000 (20)
29 TR102950Scheibe
30 TR11-3050Huelse
31 TR113179Mutter
32 TR11-6100DISCONTINUED
33 TR116154HEX-NUT 13/16 UNEF
34 TR920163117292
35 TR920273WASHER-SPECIAL
36 TR116692KEY-IGNITION
37 TR106948Batterieplatte
38 TR115860CLIP-SNAP IN
38 TR115858CLIP-SNAP IN
39 TR111392J-CLIP
40 TR910794BOLT
41 TR915740MUTTER
42 TR114594DUP PART SEE $BOOK
42 TR109101FUSE-BLADE, 20 AMP
42 TRNN10277FUSE-30 AMP
