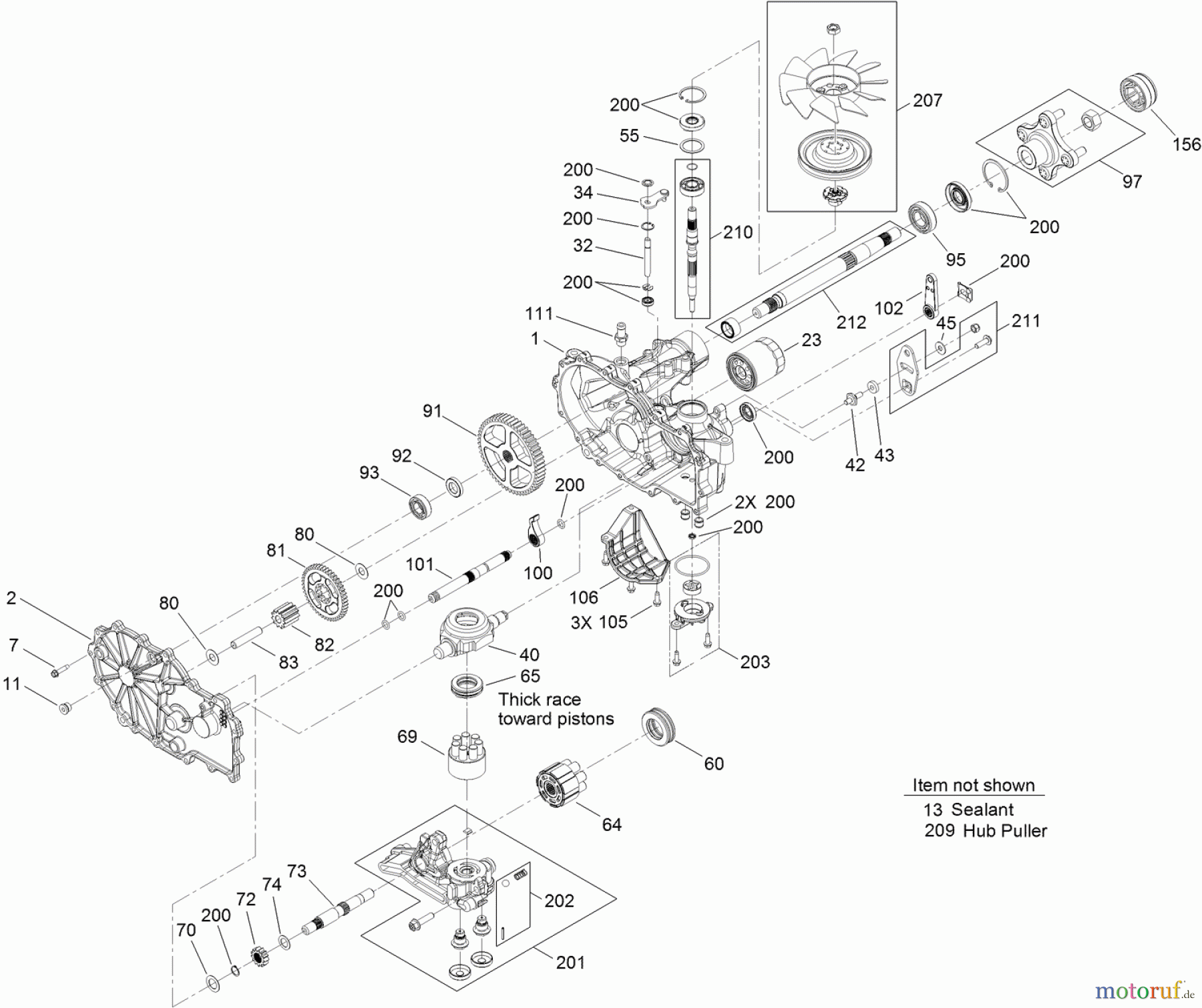

LH HYDRO TRANSMISSION ASSEMBLY NO. 119-8892 74871 (MX4880) - Toro TITAN MX4880 Zero-Turn-Radius Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74871 (MX4880) - Toro TITAN MX4880 Zero-Turn-Radius Riding Mower, 2012 (SN 312000001-312999999) LH HYDRO TRANSMISSION ASSEMBLY NO. 119-8892
PosizioneArticolo numeroDescrizione
1 TR114-8471MAIN HOUSING KIT
2 TR114-8472SIDE COVER KIT
7 TR117-5359SCREW-HHF
11 TR104-2189PLUG-THREAD, STRAIGHT
13 TR104-2147Dichtungsmasse
23 TR109-3321ELEMENT-OIL FILTER, HYD
32 TR114-1685ROD-BYPASS
34 TR107-2490Schaltarm
40 TR104-5304SWASHPLATE-TRUNNION
42 TR104-2116STEHBOLZEN
43 TR112-9853PUCK-FRICTION
45 TR114-8491WASHER
55 TR104-5308Distanzscheibe
60 TR109-2865BEARING-THRUST
64 TR114-1689MOTOR CYLINDER BLOCK KIT
65 TR94-6922BEARING-THRUST
69 TR110-8561PUMP BLOCK ASM
70 TR104-5339SCHEIBE
72 TR120-7972GEAR-13T
73 TR114-1691SHAFT-MOTOR
74 TR104-5360WASHER
80 TR94-1933SCHEIBE
81 TR120-7973GEAR-46T
82 TR120-7974GEAR-11T
83 TR104-5329PIN-JACKSHAFT
91 TR114-1694GEAR-54T
92 TR120-7975SPACER
93 TR114-1696BEARING-BALL
95 TR120-7976BEARING-BALL
97 TR109-5939HUB KIT
100 TR114-1697PAWL-BRAKE
101 TR120-7977
102 TR125-0021
105 TR104-2120SCHRAUBE
106 TR120-7979GUARD-FILTER, LH
111 TR109-3278ADAPTER-STRAIGHT
156 TR115-5057COVER-NUT, AXLE
200 TR109-3537COMPLETE SEAL KIT
201 TR120-7980
202 TR114-8464CHARGE RELIEF KIT
203 TR114-8465CHARGE KIT
207 TR109-5938FAN AND PULLEY KIT
209 TR114-8467HUB-PULLER, 4 BOLT
210 TR117-5361
211 TR117-5362ARM CONTROL KIT
212 TR114-8470AXLE SHAFT KIT
