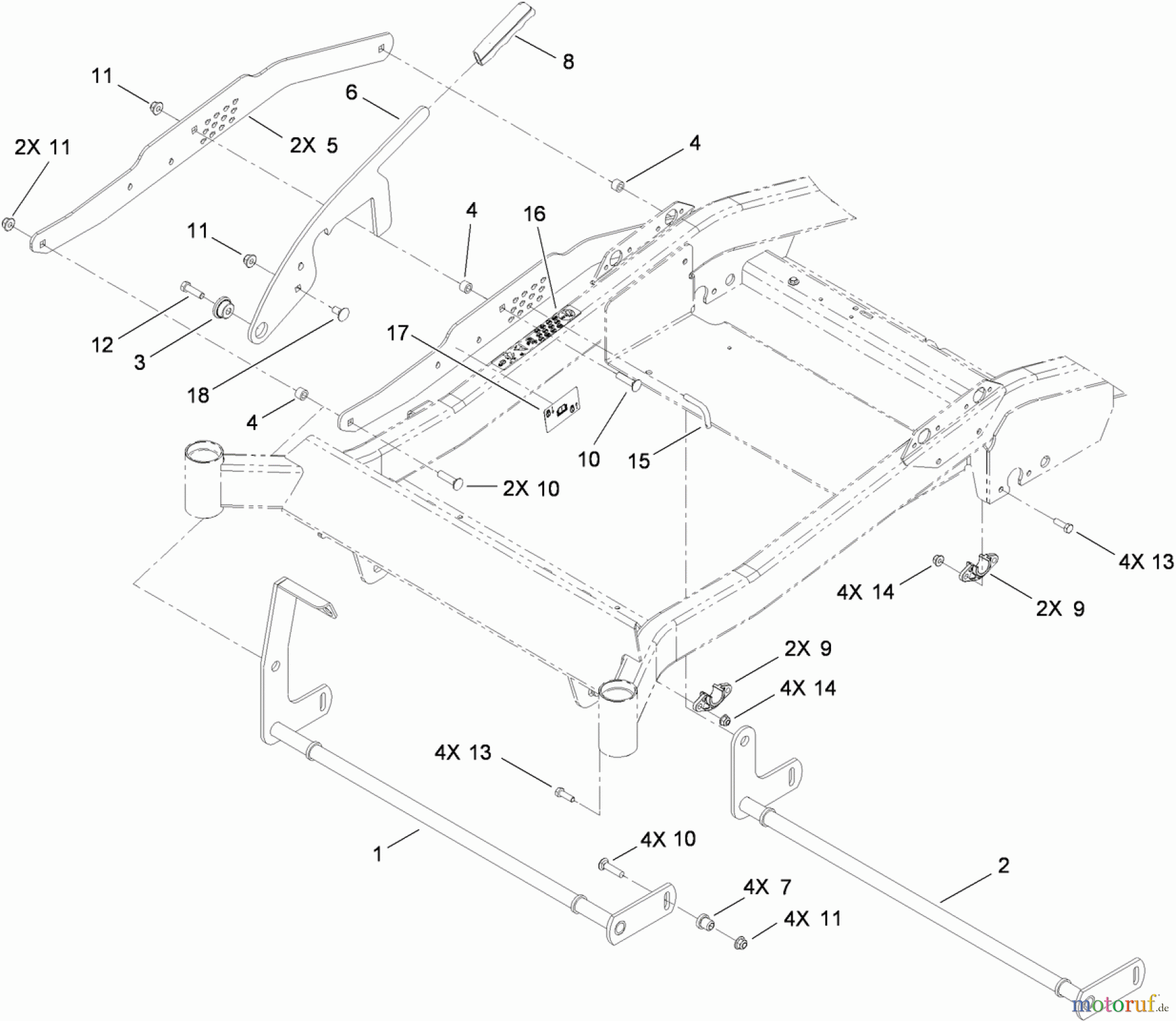

Toro 74830 (ZX4800) - TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) DECK LIFT ASSEMBLY Ricambi

DECK LIFT ASSEMBLY 74830 (ZX4800) - Toro TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74830 (ZX4800) - Toro TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) DECK LIFT ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR115-2495-03PIVOT-FRONT
2 TR115-2498-03PIVOT-REAR
3 TR117-1281BUSHING-MOUNT, HOC
4 TR115-4986SPACER
5 TR115-2503-03PLATE-LIFT, FOOT
6 TR115-2504PLATE-STOP, HOC
7 TR65-5950Buechse
8 TR115-5033GRIP
9 TR115-5065BUSHING-FLANGE
10 TR3231-4Schraube
11 TR104-8301Mutter
12 TR323-7Schraube
13 TR322-5Schraube
14 TR104-8300Mutter
15 TR117-1280PIN-KEYED
16 TR115-9644DECAL-HOC
17 TR117-5344DECAL-LOCK, DECK
18 TR3231-1Schraube
