Toro 74824 (ZX6050) - TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999) FRAME AND CASTOR WHEEL ASSEMBLY Ricambi

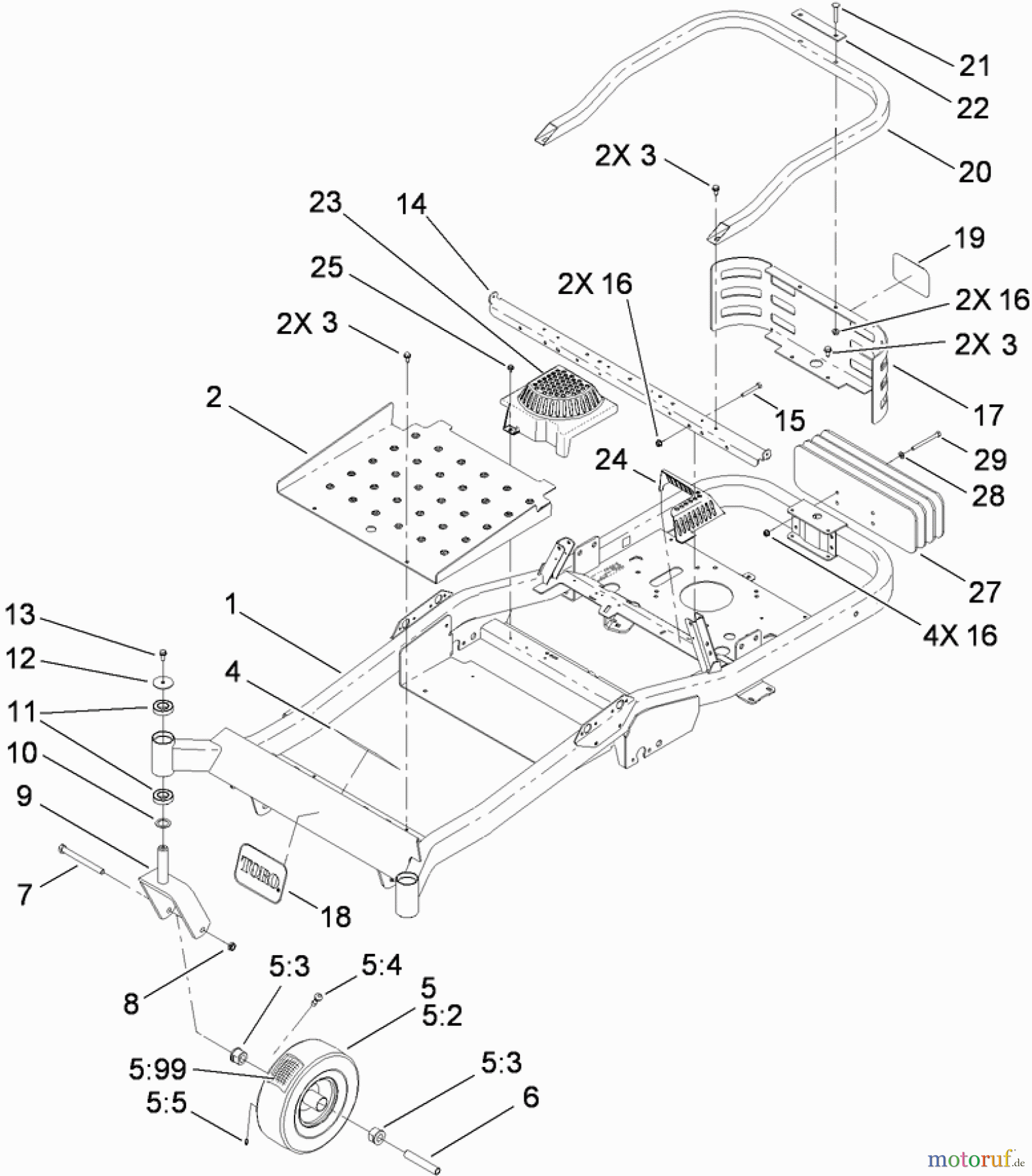

FRAME AND CASTOR WHEEL ASSEMBLY 74824 (ZX6050) - Toro TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 74824 (ZX6050) - Toro TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999) FRAME AND CASTOR WHEEL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR117-7356-01FRAME ASM
2 TR115-2531-03115-2531-05
3 TR32144-70Schraube
4 TR109-8965DECAL-SAFETY
5 TR115-2554TIRE AND WHEEL ASM (KENDA)
5:2 TR115-2557TIRE-SMOOTH
5:3 TR114-1640BUSHING-FLANGE
5:4 TR232-27Ventil
5:5 Toro SchmiernippelTR302-5Schmiernippel
5:99 TR117-1234TUBE-INNER
6 TR104-3667Radbuechse
7 TR3252-2SCHRAUBE
8 TR3296-45NUT-LOCK, NI
9 TR110-6634-01CASTER FORK ASM
10 TR10-8110Scheibe
11 TR109-3678BEARING-BALL
12 TR109-3724WASHER
13 TR3234-47SCREW-HHF
14 TR115-2566-03SUPPORT-SEAT
15 TR322-11SCREW-HH
16 TR104-8300Mutter
17 TR115-2632-03GUARD-REAR, SHIELD
18 TR62-5550Toro-Schild
19 TR105-8278Klebeschild
20 TR115-2565-01GUARD-REAR, TUBE
21 TR3230-6SCREW-CARR
22 TR115-5061-01PLATE-SPACER
23 TR117-1241COVER-FAN, RH
24 TR117-1242COVER-FAN, LH
25 TR46-8560SCREW-HHFTF
27 TR117-5396-03PLATE-WEIGHT, 60 INCH
28 TR3256-23Scheibe
29 TR321-6Schraube
