Toro 74813 (Z4800) - TITAN Z4800 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999) MOTION CONTROL AND BRAKE ASSEMBLY Ricambi

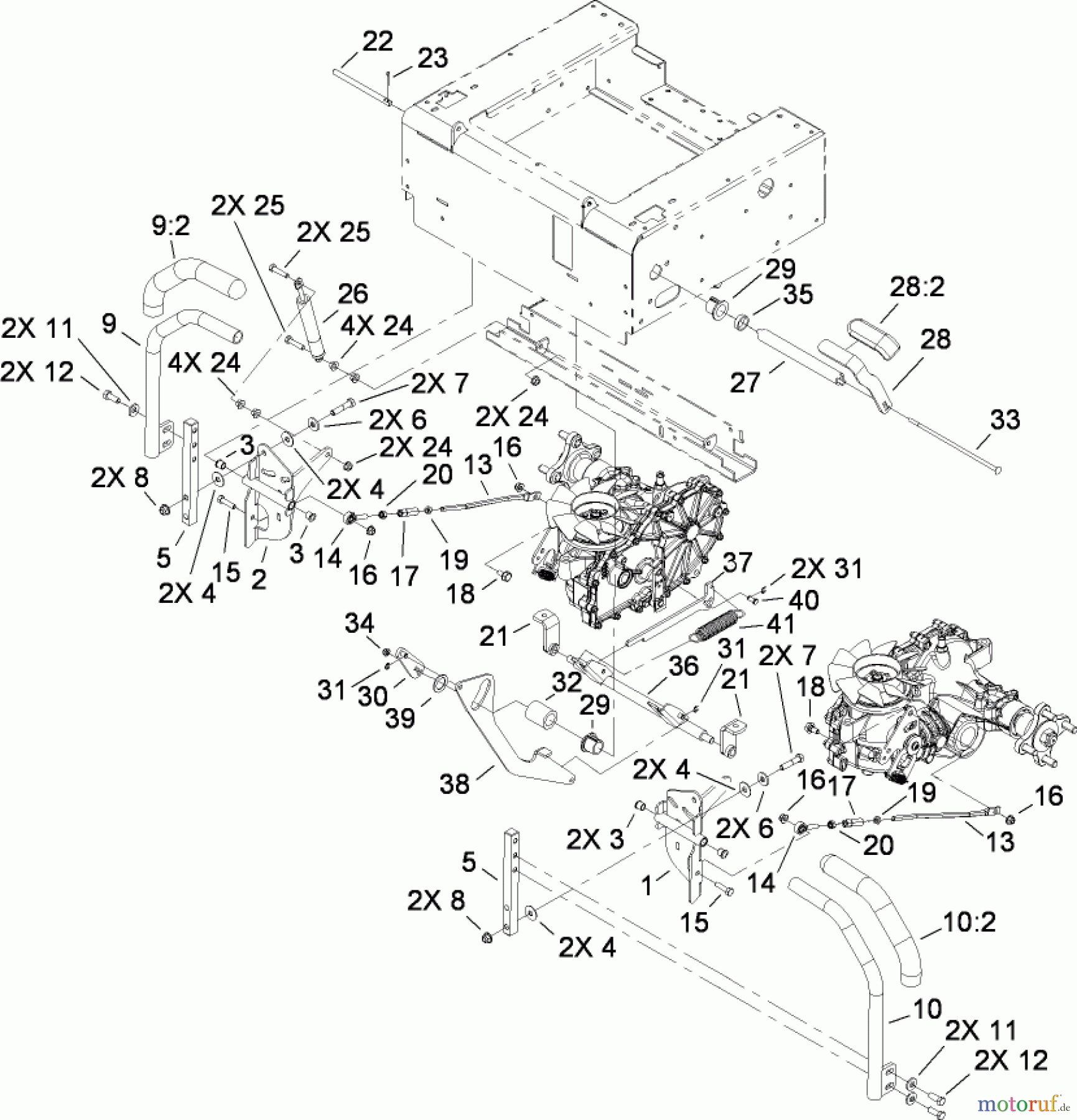

MOTION CONTROL AND BRAKE ASSEMBLY 74813 (Z4800) - Toro TITAN Z4800 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 74813 (Z4800) - Toro TITAN Z4800 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999) MOTION CONTROL AND BRAKE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR109-6915LH MOTION CONTROL PIVOT ASM
2 TR109-6914RH MOTION CONTROL PIVOT ASM
3 TR103-9928BEARING
4 TR52-2900Plastikscheibe
5 TR109-3689POST-LEVER MOUNT
6 TR5-0838Scheibe
7 TR323-9Schraube
8 TR104-8301Mutter
9 TR109-7098RH LEVER AND GRIP ASM
9:2 TR109-5192GRIP-CONTROL LEVER
10 TR109-7099LH LEVER AND GRIP ASM
10:2 TR109-5192GRIP-CONTROL LEVER
11 TR98-5975Wellenscheibe
12 TR323-6Schraube
13 TR109-3414ROD-STEERING
14 TR2411-53BEARING-ROD END, LH
15 TR322-6Schraube
16 TR104-8300Mutter
17 TR109-3728NUT-ROD ADJUSTMENT
18 TR37-8771Schraube
19 TR3220-2Mutter
20 TR3220-20NUT-JAM
21 TR109-6220BRAKE PIVOT ASM
22 TR109-3705PIN-CONTROL PIVOT
23 TR3272-10PIN-COTTER
24 Toro MutterTR32128-20Mutter
25 TR1-403180SCREW-HH
26 TR109-5957DAMPER-MOTION CONTROL
27 TR109-5825TUBE-BRAKE PIVOT
28 TR109-5918LEVER ASM
28:2 TR1-633268GRIP-LEVER
29 TR107-7581Flanschbuechse
30 TR109-5824BELLCRANK ASM
31 TR701197E-RING
32 TR109-5834SPACER
33 TR109-5868BOLT-CARR
34 TR104-7201Mutter
35 TR109-5914SPACER
36 TR109-8765BRAKE SHAFT ASM
37 TR109-6907LINK-BRAKE ACTUATION
38 TR109-5833ARM-BRAKE
39 TR99-4958SPACER
40 TR109-6887PIN-CLEVIS
41 TR1-603693SPRING-EXTENSION
