Toro 74704 (ZX480) - TimeCutter ZX480 Riding Mower, 2005 (250000001-250999999) FUEL TANK ASSEMBLY Ricambi

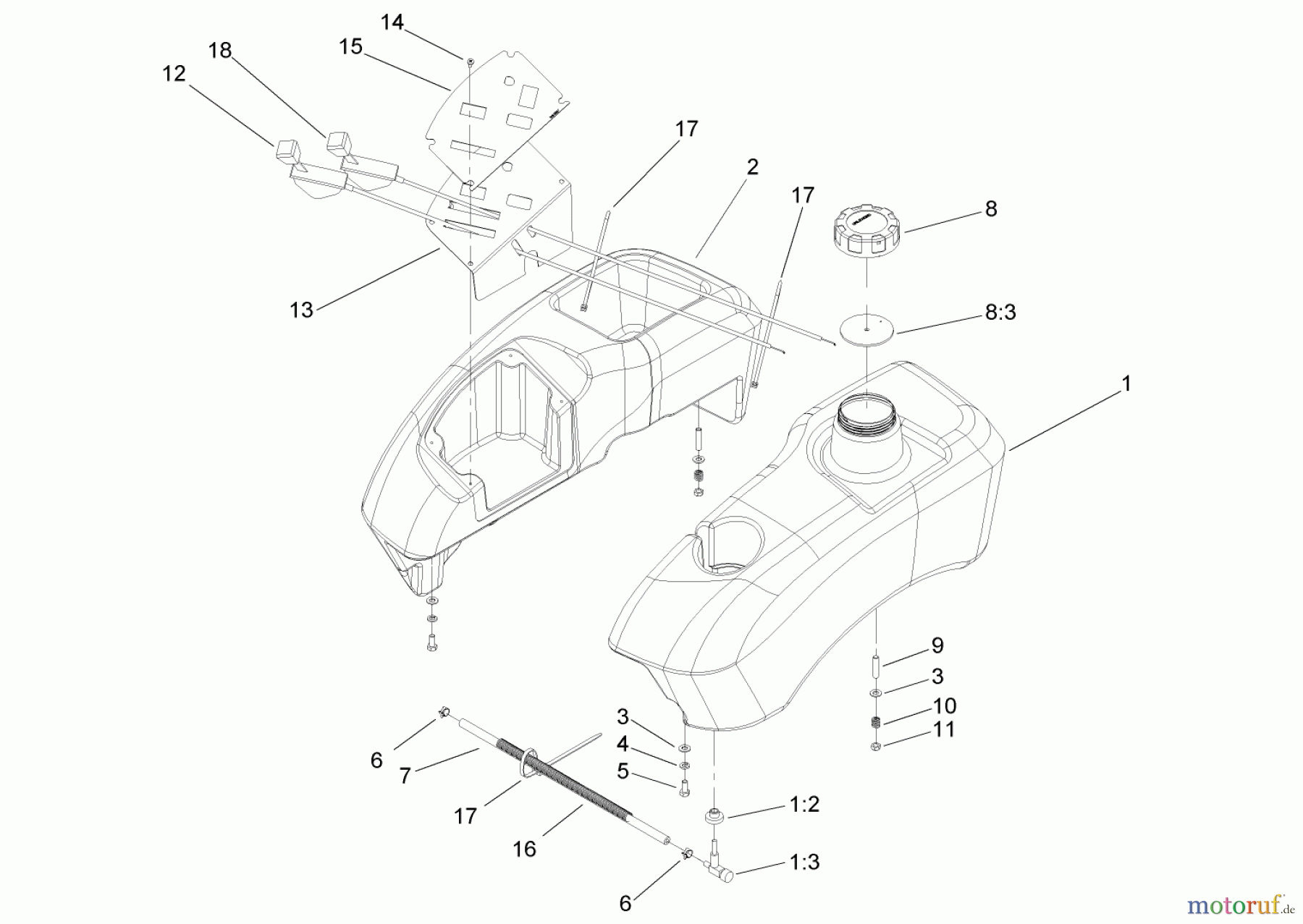

FUEL TANK ASSEMBLY 74704 (ZX480) - Toro TimeCutter ZX480 Riding Mower, 2005 (250000001-250999999)

Toro Neu Mowers, Zero-Turn 74704 (ZX480) - Toro TimeCutter ZX480 Riding Mower, 2005 (250000001-250999999) FUEL TANK ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR105-3494FUEL TANK ASM
1:2 TR46-6560BUSHING
1:3 TR104048Benzinhahn
2 TR105-1918TANK-CONSOLE
3 TR3256-23Scheibe
4 TR3253-4Federring
5 TR322-3Schraube
6 TR702355BRACKET-THATCHER
7 TR104-8010109-0301
8 TR88-3980Tankdeckel
8:3 TR88-4010Deckeldichtung
9 TR1-633023STUD
10 TR1-633349Feder
11 TR3296-47Mutter
12 TR107-9107110-1861
13 TR104-8054-03PANEL-CONTROL
14 TR3250-14Schraube
15 TR108-2338DECAL-PANEL, CONTROL
16 TR105-1854Schutzhuelle
17 TR614249Kabelband
18 TR107-9108CABLE-CHOKE
