Toro 74704 (ZX480) - TimeCutter ZX480 Riding Mower, 2005 (250000001-250999999) DECK ASSEMBLY Ricambi

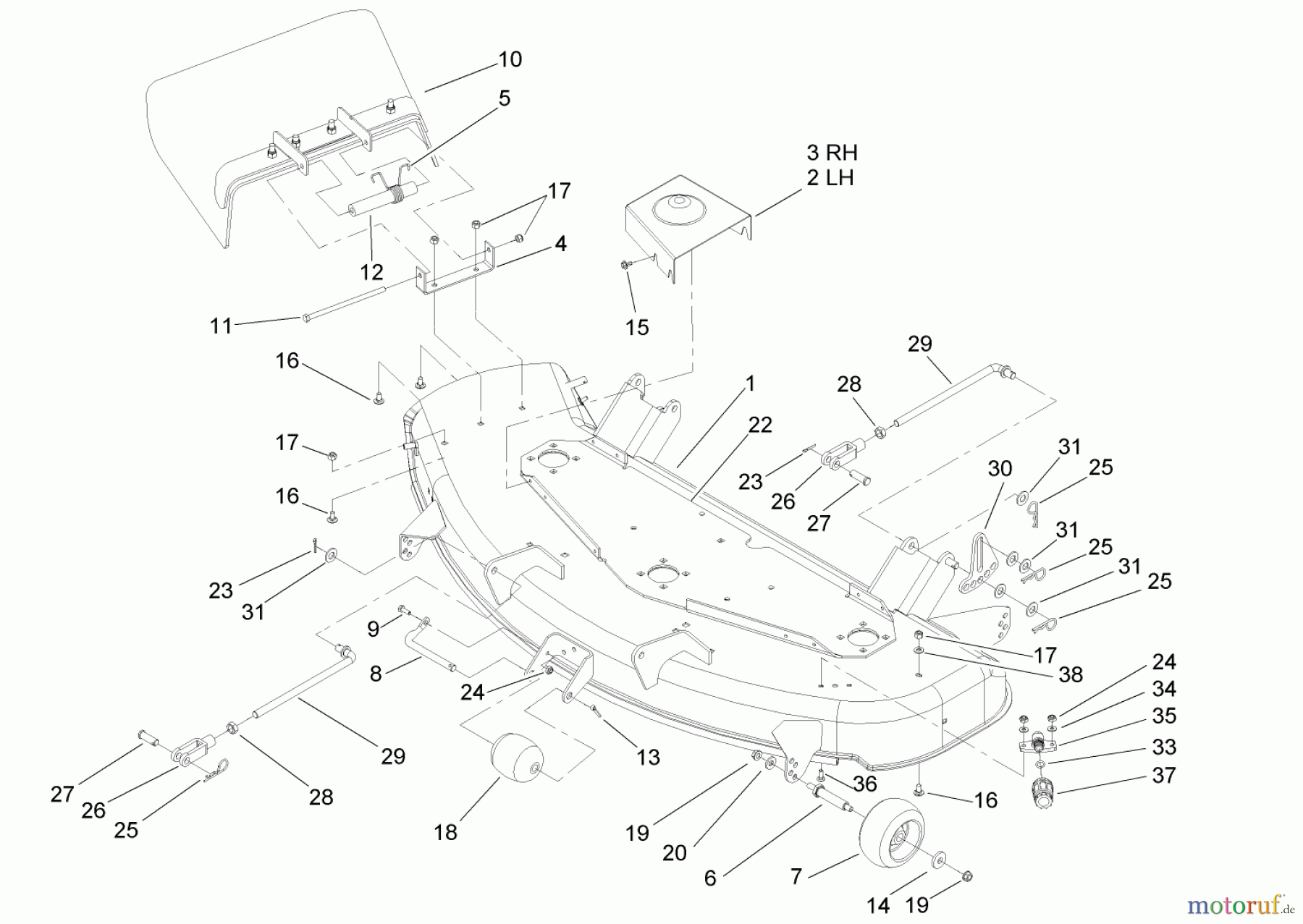

DECK ASSEMBLY 74704 (ZX480) - Toro TimeCutter ZX480 Riding Mower, 2005 (250000001-250999999)

Toro Neu Mowers, Zero-Turn 74704 (ZX480) - Toro TimeCutter ZX480 Riding Mower, 2005 (250000001-250999999) DECK ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR108-7174DECK ASM
2 TR108-7167-03COVER-BELT, LH
3 TR108-7166-03COVER-BELT, RH
4 TR108-8581-03BRACKET-PIVOT
5 TR108-4052SPRING-TORSION
6 TR99-2842Radbolzen
7 TR68-2730Rad
8 TR110847Achse
9 Toro SchraubeTR321-4Schraube
10 TR108-8591DEFLECTOR ASM
11 TR108-8539BOLT-HH
12 TR108-7159SPACER-DEFLECTOR
13 TR3272-21Splint
14 TR1-373034Abdeckscheibe
15 TR46-8560SCREW-HHFTF
16 TR3230-18SCHRAUBE
17 Toro MutterTR3296-29Mutter
18 TR94-1599Laufrolle
19 TR3290-357NUT-HHF, WHIZ
20 TR98-5975Wellenscheibe
22 TR108-7168-01PLATE-REINFORCEMENT, DECK
23 TR3272-10PIN-COTTER
24 TR3296-16Mutter
25 TR1-806005PIN-HAIR
26 TR100-7338Einstellgabel
27 TR104-3634PIN-CLEVIS
28 TR3220-5Mutter
29 TR104-8047Gestaenge
30 TR104-3699-01Einstellplatte
31 TR3256-26WASHER-FLAT
33 TR46-6290O-RING, SEAL
34 TR3256-1SCHEIBE F. KLEMME
35 TR95-2747FITTING-WASHOUT
36 TR3229-1Schraube
37 TR95-3270SCHLAUCHFITTING
38 TR3256-23Scheibe
