Toro 74630 (5000) - TimeCutter SS 5000 Riding Mower, 2011 (311000001-311999999) BATTERY AND ELECTRICAL ASSEMBLY Ricambi

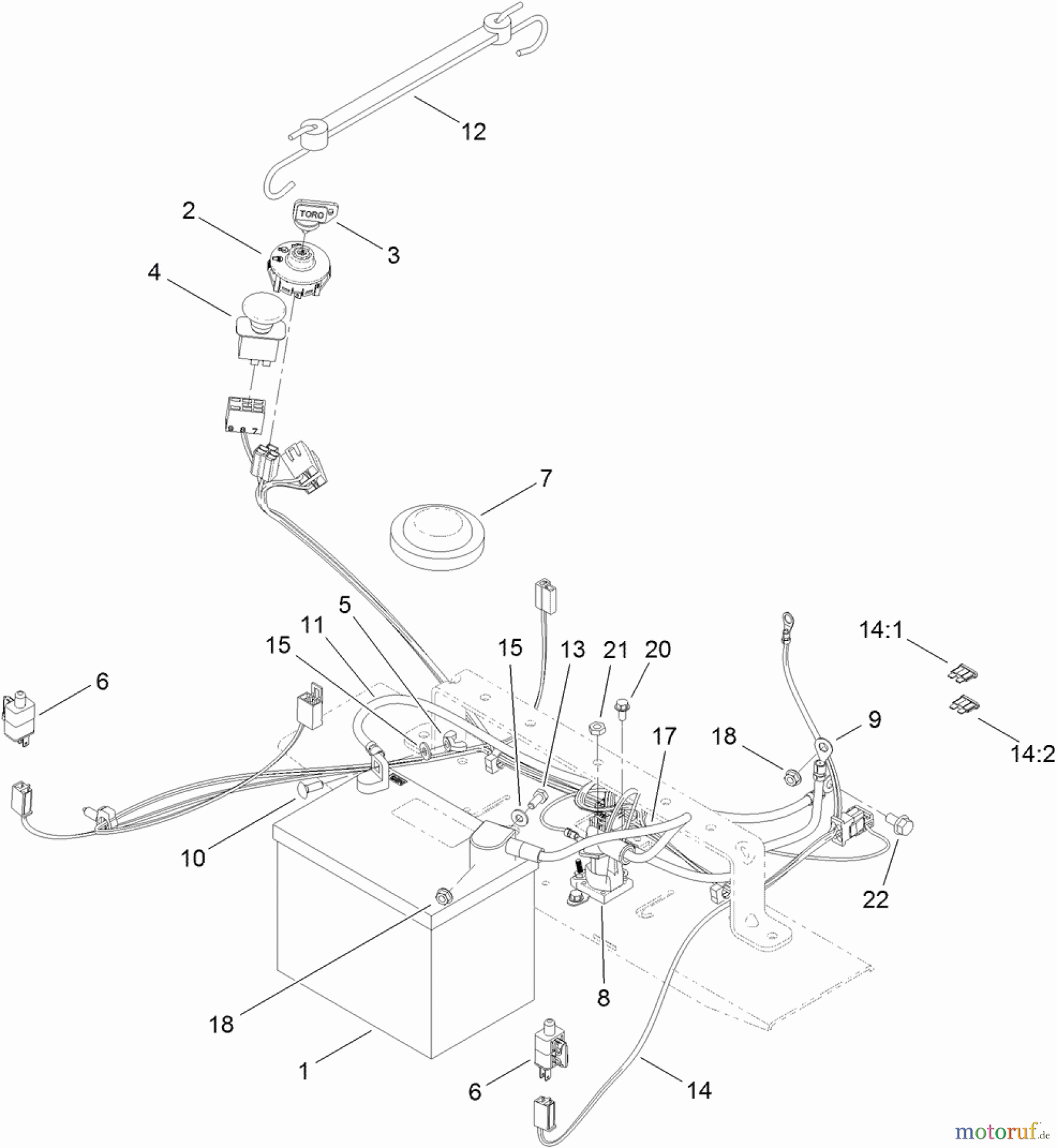

BATTERY AND ELECTRICAL ASSEMBLY 74630 (5000) - Toro TimeCutter SS 5000 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74630 (5000) - Toro TimeCutter SS 5000 Riding Mower, 2011 (311000001-311999999) BATTERY AND ELECTRICAL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR104-2493105-1692
2 TR117-2221SWITCH-IGNITION
3 Toro SchluesselTR63-8360Schluessel
4 TR93-9998Schalter-Messerkuppl.
5 TR32103-22Fluegelmutter
6 TR110-6765SWITCH-SINGLE POLE NO
7 TR100-3524Sitzschalter
8 TR117-1197SOLENOID
9 TR119-8898CABLE-BATTERY, RED
10 TR3229-1Schraube
11 TR119-8899CABLE-BATTERY, BLACK
12 TR104-2466Batteriehalterung
13 TR321-3SCREW-HH
14 TR121-5652HARNESS-WIRE
14:1 TR109103Sicherung 30a
14:2 TR109102Sicherung (20)
15 TR3256-22Scheibe
17 TR119-8897CABLE-BATTERY, RED
18 TR32128-33Mutter
20 TR32144-4Schraube
21 TR3220-2Mutter
22 TR33104-016Schraube
