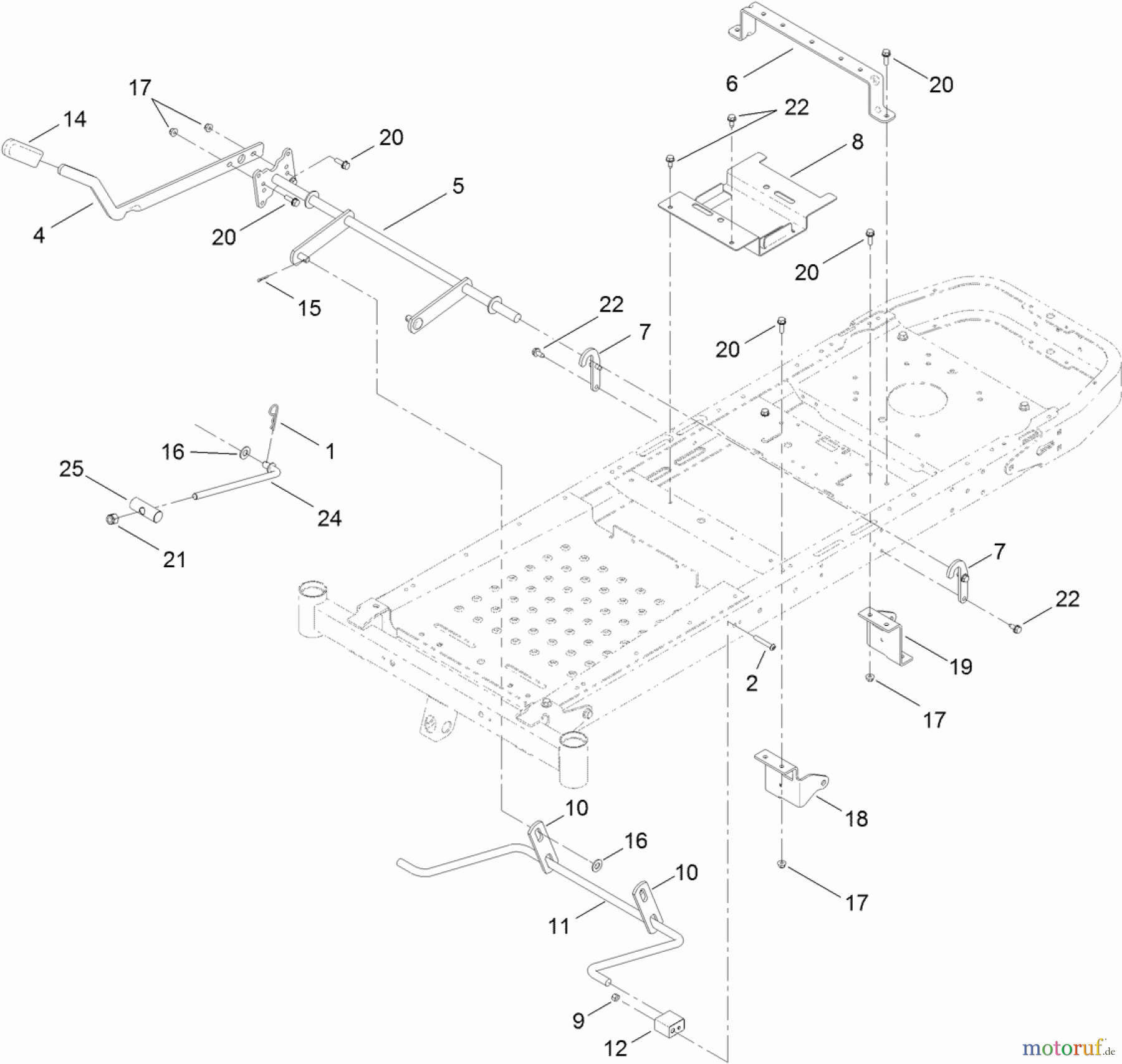

DECK LIFT ASSEMBLY 74623 (4200) - Toro TimeCutter SS 4200 Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74623 (4200) - Toro TimeCutter SS 4200 Riding Mower, 2012 (SN 312000001-312999999) DECK LIFT ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR1-806005PIN-HAIR
2 TR120-5499SCREW-HSBH
4 TR119-3427-03LEVER-LIFT
5 TR117-7346-03DECK LIFT ASM
6 TR119-3435-03BRACE-SEAT, REAR
7 TR119-8875BRACKET-LIFT
8 TR119-3406-03BRACKET-BATTERY
9 Toro MutterTR3296-29Mutter
10 TR108-7840LINK-LIFT
11 TR108-7839ARM-LIFT, REAR
12 TR108-7845BLOCK-PIVOT
14 TR1-633268GRIP-LEVER
15 TR3272-10PIN-COTTER
16 TR3256-26WASHER-FLAT
17 TR104-8300Mutter
18 TR119-8861-01MOUNT-HYDRO, FRONT RH
19 TR119-8862-01MOUNT-HYDRO, FRONT LH
20 TR3234-29SCREW-HHF
21 TR3296-19Mutter
22 TR32144-70Schraube
24 TR104-8047Gestaenge
25 TR119-8810PIN-PIVOT
