Toro 74620 (3200) - TimeCutter SS 3200 Riding Mower, 2011 (311000001-311999999) 32 INCH DECK, BELT AND BLADE ASSEMBLY Ricambi

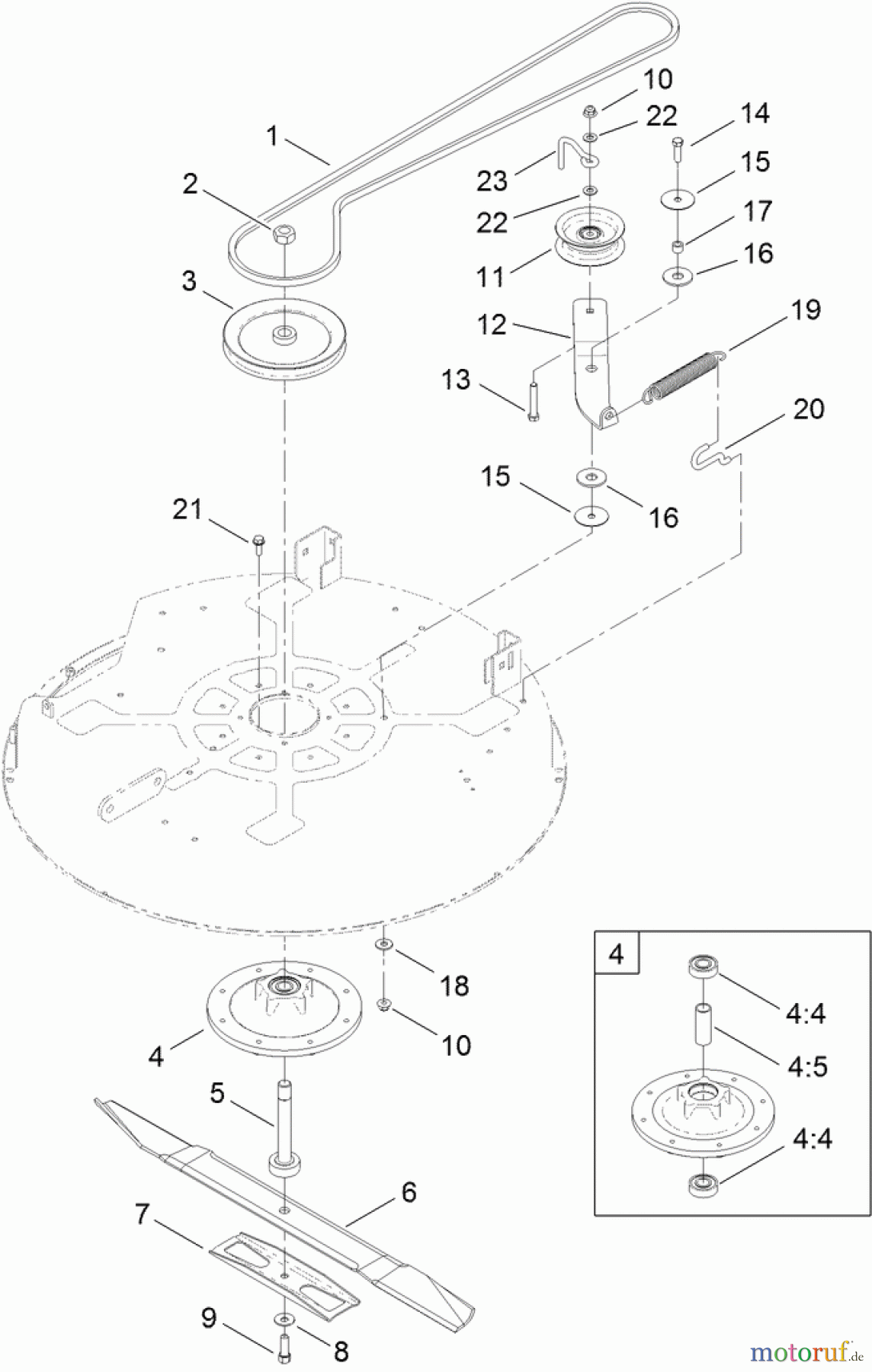

32 INCH DECK, BELT AND BLADE ASSEMBLY 74620 (3200) - Toro TimeCutter SS 3200 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74620 (3200) - Toro TimeCutter SS 3200 Riding Mower, 2011 (311000001-311999999) 32 INCH DECK, BELT AND BLADE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR119-8821V-BELT, 81.8 INCH
2 TR3219-7Mutter
3 TR119-8804PULLEY-DECK
4 TR119-0368SPINDLE HOUSING ASM
4:4 TR251-297BEARING-BALL
4:5 TR83-7020Buechse
5 TR119-8825SHAFT-SPINDLE
6 TR80-4430-03Recycler-Messer
7 TR80-4570-03Messernabe
8 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
9 Toro SCHRAUBETR26-0671SCHRAUBE
10 TR104-8301Mutter
11 TR106-2175Spannrolle
12 TR119-8966ARM-IDLER
13 TR3231-1Schraube
14 TR323-7Schraube
15 TR120-2229WASHER-IDLER PIVOT
16 Toro WASHER-FRICTION, COMPOSITETR114-0463WASHER-FRICTION, COMPOSITE
17 TR115-4986SPACER
18 TR80-6990Scheibe
19 TR106-2177SPRING-EXTENSION
20 TR88-5970HOOK-RETURN, SPRING
21 Toro SchraubeTR32144-41Schraube
22 Toro WASHER-FLATTR3256-24WASHER-FLAT
23 TR107-7307Riemenfuehrung
