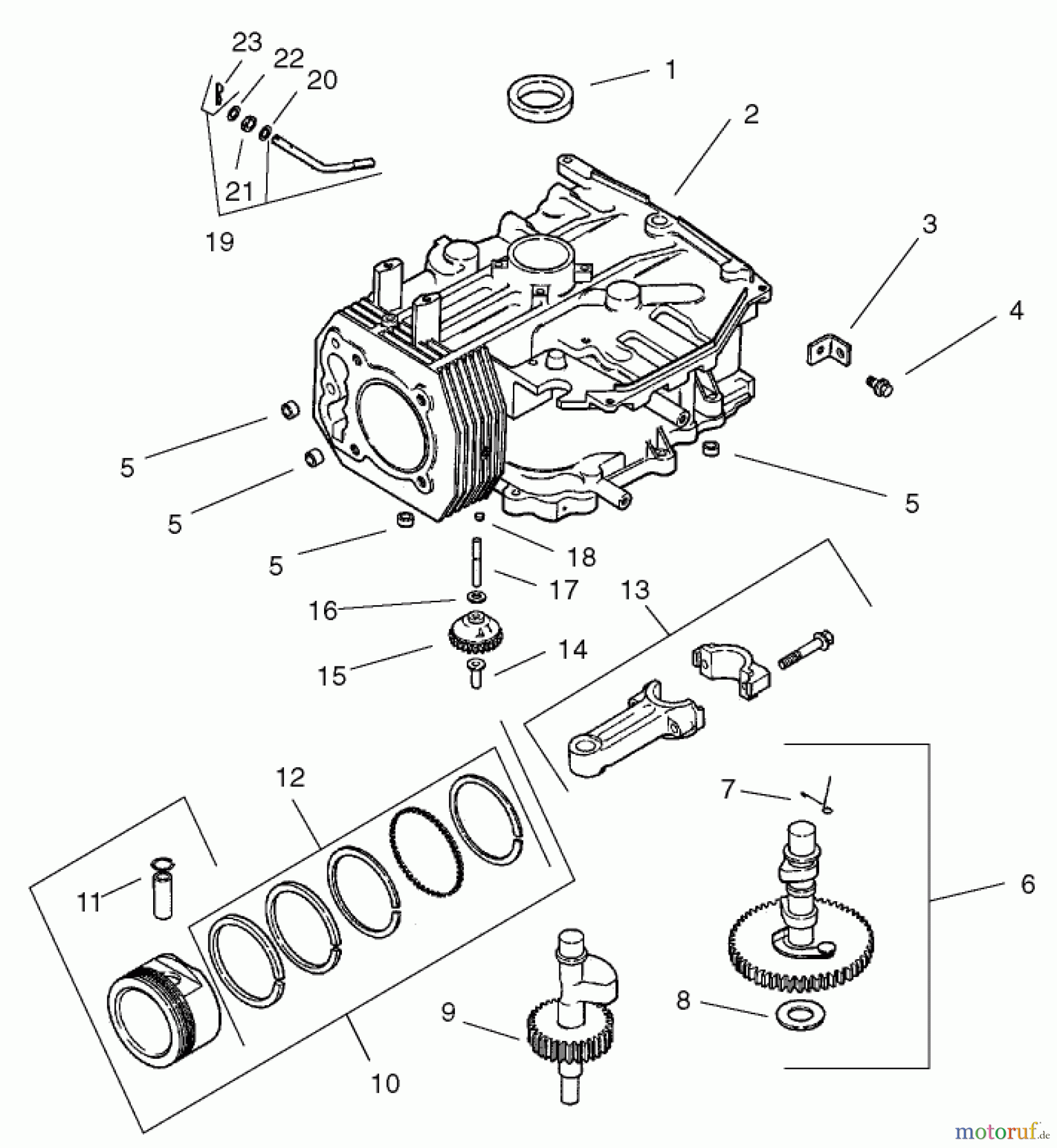

Toro 74601 (Z17-44) - Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220000912) CRANKCASE ASSEMBLY KOHLER CV 490-27503 Ricambi

CRANKCASE ASSEMBLY KOHLER CV 490-27503 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220000912)

Toro Neu Mowers, Zero-Turn 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220000912) CRANKCASE ASSEMBLY KOHLER CV 490-27503

Posizione		Articolo numero	Descrizione
1		KH1203203-S	SEAL, OIL
3		KH1244502-S	STRAP
4		KHM-839025-S	SCREW, FLG M8X1.25X25
5		KH2438013-S	USE 24 380 16-S PIN
6		KH1275549-S	KIT, CAMSHAFT
7		KH1208937-S	SPRING, ACTUATING
8		KH1242208-S	SHIM, CAMSHAFT (BLUE .03")
		KH1242209-S	SHIM, CAMSHAFT (RED .032")
		KH1242210-S	SHIM, CAMSHAFT (YELLOW .034")
		KH1242211-S	SHIM, CAMSHAFT (GREEN .036")
		KH1242212-S	SHIM, CAMSHAFT (GRAY .038")
		KH1242213-S	SHIM, CAMSHAFT (BLACK .04")
		KH1242207-S	SHIM, CAMSHAFT (WHITE .028")
9		KH1214428-S	SHAFT, BALANCE
10		KH1287407-S	KIT, PISTON W/RING SET (STD)
		KH1287408-S	KIT, PISTON W/RING SET (.25)
		KH1287409-S	KIT, PISTON W/RING SET (.50)
		KH1287411-S	KIT, PISTON W/RING SET (.08)
11		KH1201802-S	RETAINER
12		KH1210807-S	RING SET (STD & .08)
		KH1210808-S	RING SET (.25)
		KH1210809-S	RING SET (.50)
13		KH1206711-S	ROD ASSY, CONNECTING (STD)
		KH1206712-S	ROD ASSY, CONNECTING(.25)
14		KH1238001-S	PIN, GOVERNOR REGULATING
15		KH1204305-S	GOVERNOR GEAR ASSEMBLY
16		KHM-631005-S	WASHER, FLAT 6 MM
17		KH1214402-S	SHAFT, GOVERNOR GEAR
18		KH5213909-S	PLUG, CUP
19		KH1275564-S	KIT, GOVERNOR CROSS SHAFT
20		KHX-25-102-S	WASHER, FLAT 1/4"
21		KH1203201-S	SEAL, GOVERNOR CROSS SHAFT
22		KHM-631015-S	WASHER, FLAT 6 MM
23		KH1215405-S	CLIP, HITCH PIN
