Toro 74601 (Z17-44) - Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999) ENGINE AND CLUTCH ASSEMBLY Ricambi

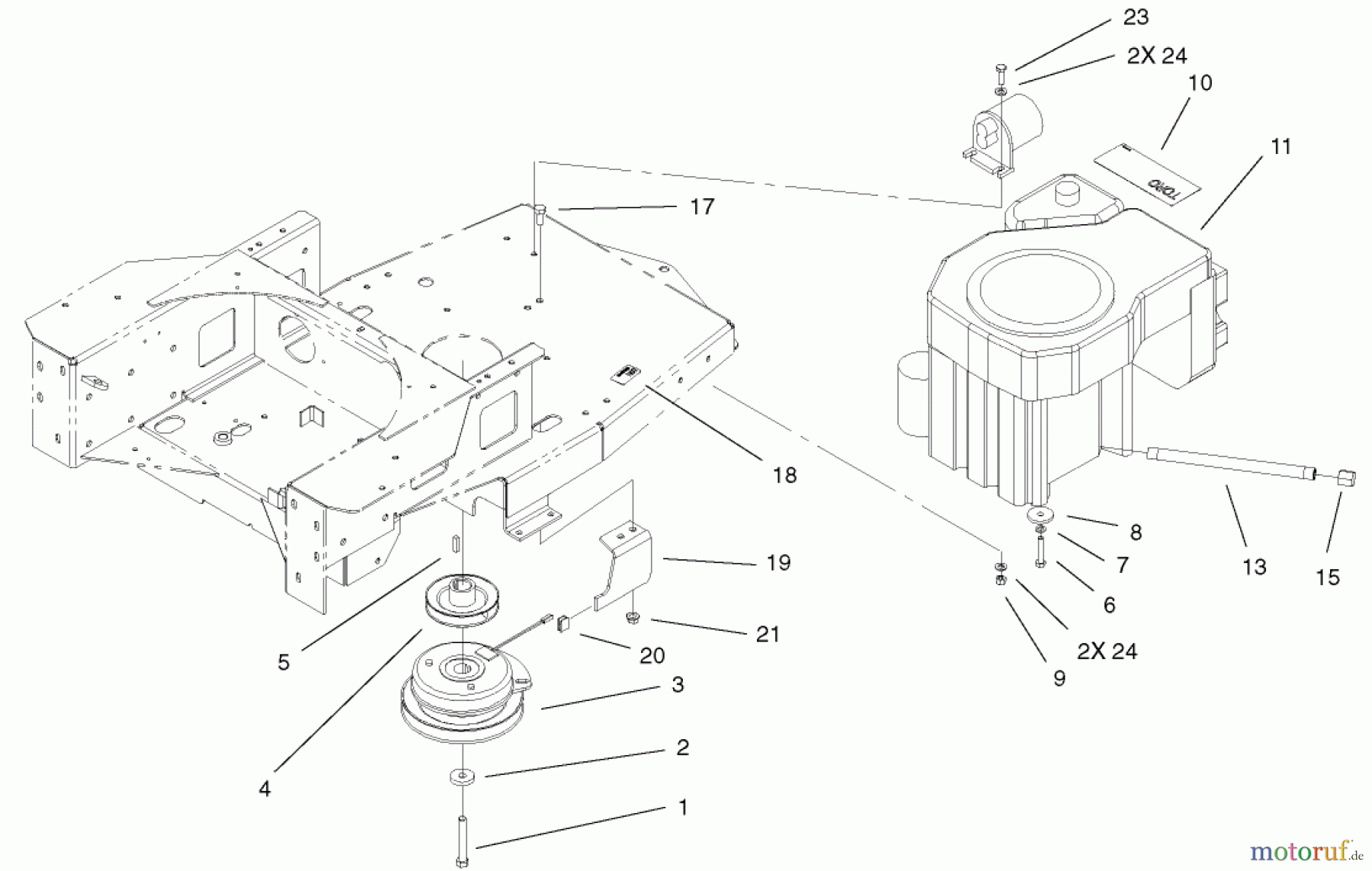

ENGINE AND CLUTCH ASSEMBLY 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999)

Toro Neu Mowers, Zero-Turn 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999) ENGINE AND CLUTCH ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR32121-2Spannstift
2 TR112843WASHER
3 TR104-3624CLUTCH
4 TR100-7314Riemenscheibe
5 TR5-7280KEY
6 TR33114-030SCREW-HH
7 TR3253-4Federring
8 TR62-7190Distanzscheibe
9 Toro MutterTR3296-29Mutter
10 TR105-7034DECAL-ENGINE, KOHLER
11 TR
13 TR104-8018NIPPLE-PIPE
15 TR288-10Kappe
17 TR323-4Schraube
18 TR65-2690DECAL-SURFACE, HOT
19 TR104-3613-03STOP-CLUTCH
20 TR98-5023Gummipuffer
21 TR32128-21Mutter
23 TR322-5Schraube
24 TR3256-23Scheibe
