Toro 74437 (ZD420T) - TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999) RH HYDRO TRANSAXLE ASSEMBLY NO. 112-4761 Ricambi

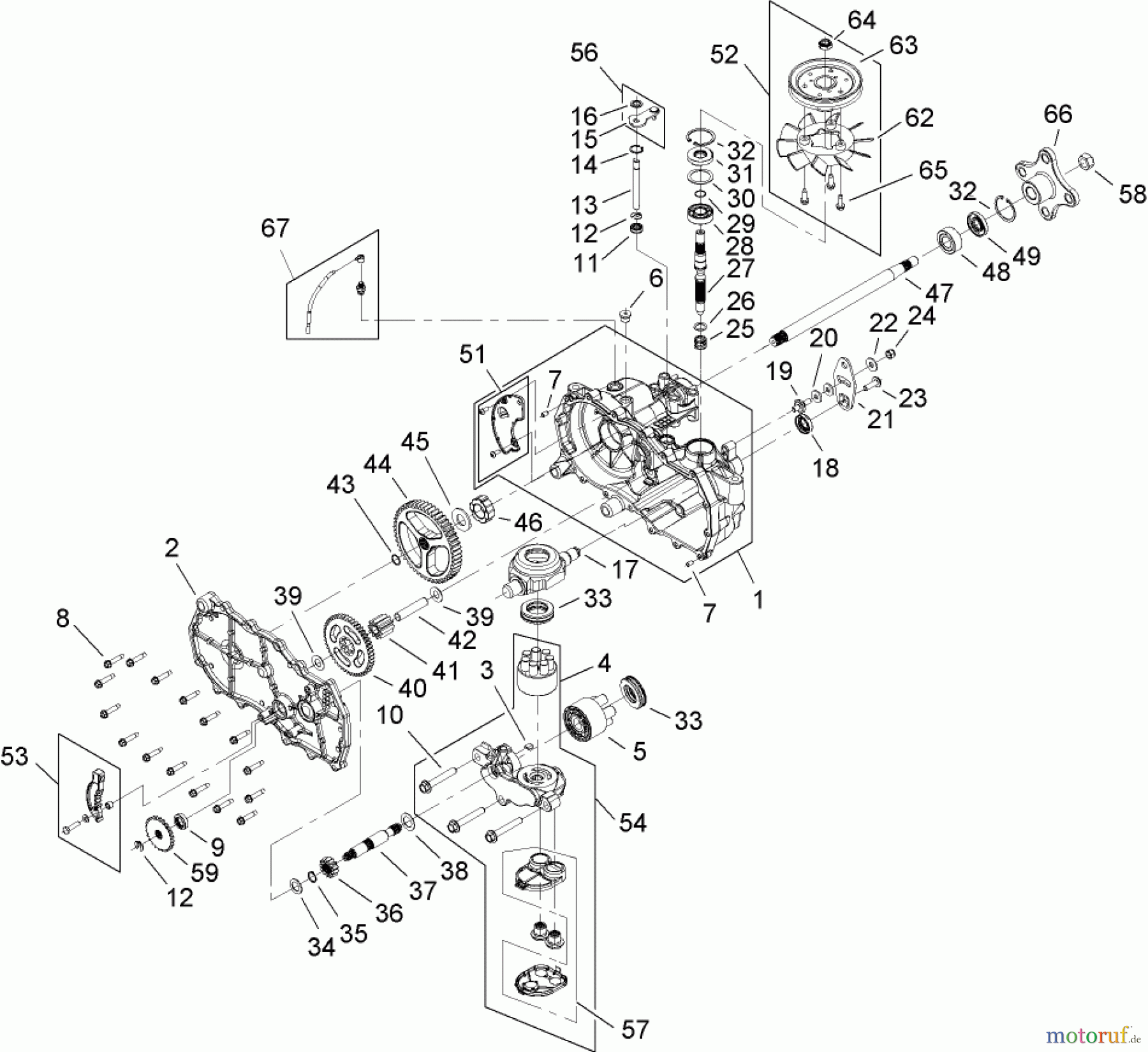

RH HYDRO TRANSAXLE ASSEMBLY NO. 112-4761 74437 (ZD420T) - Toro TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 74437 (ZD420T) - Toro TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999) RH HYDRO TRANSAXLE ASSEMBLY NO. 112-4761
PosizioneArticolo numeroDescrizione
1 TR106-8674MAIN HOUSING ASM
2 TR106-8675SIDE ASM
3 TR110-8560PLATE-BYPASS
4 TR110-8561PUMP BLOCK ASM
5 TR103-2666CYLINDER BLOCK KIT
6 TR104-2189PLUG-THREAD, STRAIGHT
7 TR104-2170STIFT
8 TR104-5305Schraube
9 TR104-5347Simmering
10 TR94-6926BOLZEN
11 TR106-8676SEAL-LIP
12 TR106-8677Sicherungsring
13 TR106-8678ROD-BYPASS
14 TR106-8679RING-RETAINING, INT
15 TR107-2489BYPASS ARM KIT
16 TR106-8681RING-RETAINING, EXT
17 TR104-5304SWASHPLATE-TRUNNION
18 TR104-5313SEAL-LIP
19 TR104-2116STEHBOLZEN
20 TR112-9853PUCK-FRICTION
21 TR106-8747ARM-CONTROL
22 TR5-4460Scheibe
23 TR107-2488Schraube
24 TR105-1872NUT
25 TR94-1936SPRING-BLOCK
26 TR94-1937SCHEIBE
27 TR104-5306Zahnwelle
28 TR104-5311Kugellager
29 TR104-5307RING-RETAINING
30 TR104-5308Distanzscheibe
31 TR104-5310SEAL-LIP
32 TR104-5309Seegerring
33 TR94-6922BEARING-THRUST
34 TR104-5339SCHEIBE
35 TR104-5340RING-RETAINING
36 TR104-5316ZAHNRAD
37 TR106-8683SHAFT-MOTOR
38 TR104-5360WASHER
39 TR94-1933SCHEIBE
40 TR104-5317ZAHNRAD
41 TR104-5318GEAR-JACKSHAFT, 10T
42 TR104-5329PIN-JACKSHAFT
43 TR112-9854RING-SPIRAL, RETAINING
44 TR112-9855GEAR-52T, BULL
45 TR112-9856WASHER
46 TR112-9857BEARING-SLEEVE
47 TR120-7932KIT-AXLE, LONG
48 TR112-9859BUSHING-AXLE
49 TR112-9860SEAL-LIP
50 TR106-8686SEAL KIT
51 TR106-8687EXPANSION PLATE KIT
52 TR121-5729FAN PULLEY KIT
53 TR106-8688Bremsarm
54 TR112-9862CENTER SECTION FILTER KIT
55 TR104-2147Dichtungsmasse
56 TR107-2489BYPASS ARM KIT
57 TR106-8693FILTER KIT
58 TR105-1895NUT
59 TR106-8694Scheibe
60 TR112-9865HOSE
61 TR108-8562PINCH-CLAMP, SINGLE EAR
62 TR105-1927121-5729
63 TR105-1896121-5729
64 TR105-1875NUT-LOCK
65 TR104-2120SCHRAUBE
66 TR105-1894Nabe
67 TR112-9866BREATHER KIT
