Toro 74437 (ZD420T) - TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999) 42 INCH TOP DECK ASSEMBLY Ricambi

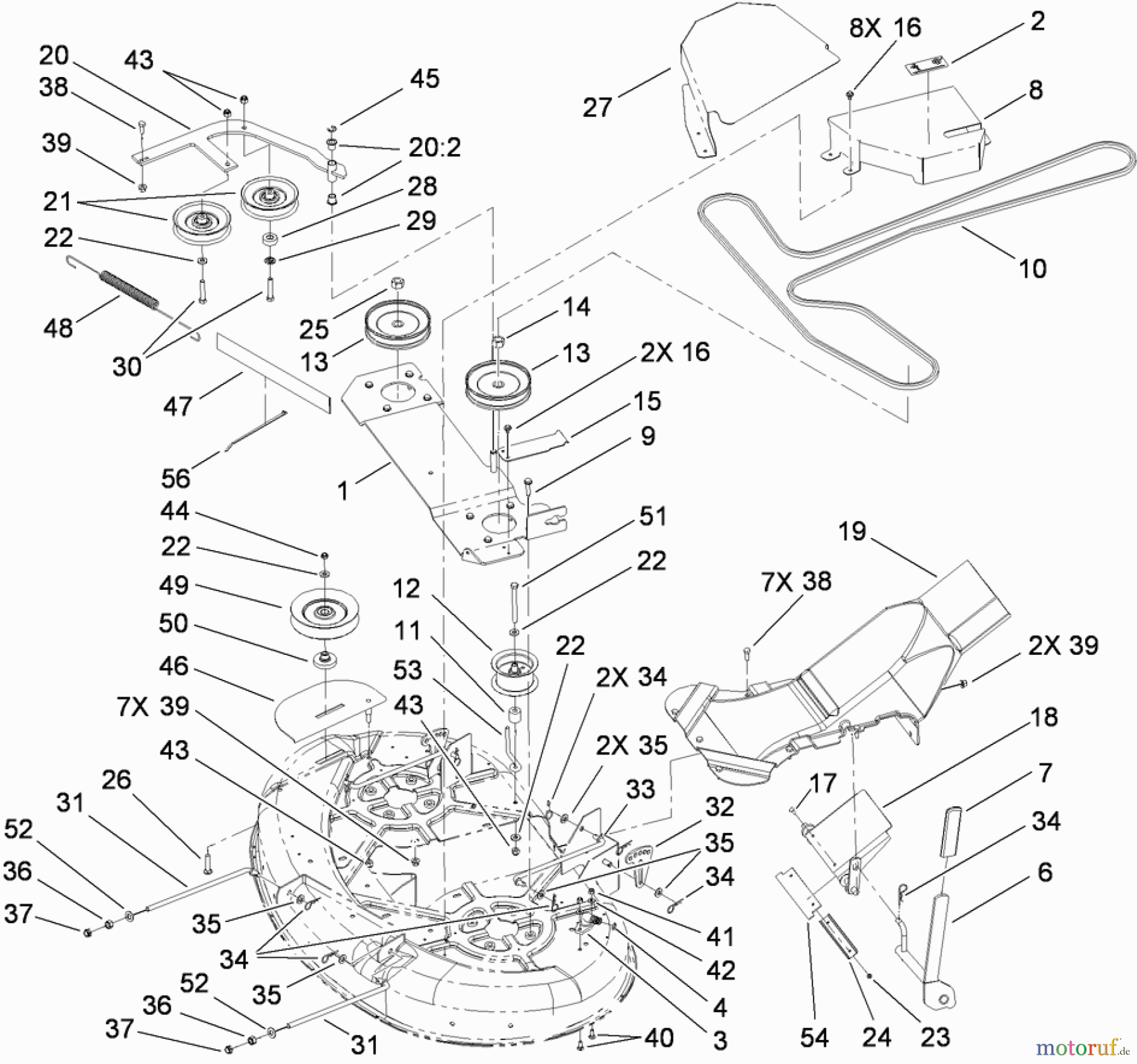

42 INCH TOP DECK ASSEMBLY 74437 (ZD420T) - Toro TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 74437 (ZD420T) - Toro TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999) 42 INCH TOP DECK ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-6737-03STIFFENER ASM
2 TR108-8769DECAL-BAG ON DEMAND
3 TR95-2747FITTING-WASHOUT
4 TR46-6290O-RING, SEAL
6 TR110-8811-03CONTROL LEVER ASM
7 TR105-3450GRIP-LEVER, LIFT
8 TR112-3481-03COVER-BELT, LH
9 TR32144-57SCHRAUBE
10 TR108-9459BELT-AA
11 TR61-2220SPACER-ENGINE
12 TR107280Riemenscheibe
13 TR88-5330PULLEY ASM
14 TR3219-6Mutter
15 TR112-6675SPRING-DETENT
16 TR46-8560SCREW-HHFTF
17 TR3229-34Schraube
18 TR112-3428-0338 INCH DOOR ASM
19 TR108-8865ADAPTER-DISCHARGE
20 TR110-3681IDLER ARM W/BUSHINGS ASM
20:2 TR256-219BUSHING
21 TR94-2447Keilriemenscheibe
22 TR65-9130WASHER
23 TR3296-12Mutter
24 TR110-8575PLATE-SEAL, DOOR
25 TR3219-16NUT-HEX
26 TR323-15Schraube
27 TR112-3480-03COVER-BELT, RH
28 TR108-8807SLIDER
29 TR108-8808WASHER-SHOULDER
30 TR323-10Schraube
31 TR105-3437Gestaenge
32 TR88-5570-03Einstellplatte
33 TR108-8834ROD-LIFT, DECK
34 TR9335054Haarnadelsicherung
35 Toro WASHER-FLATTR3256-24WASHER-FLAT
36 TR3219-4Mutter
37 TR3296-38Mutter
38 TR322-4Schraube
39 Toro MutterTR3296-58Mutter
40 TR3229-1Schraube
41 Toro MutterTR3296-42Mutter
42 TR3256-1SCHEIBE F. KLEMME
43 TR32-9639
44 TR3296-59Mutter
45 TR32120-47RING-RETAINING, EXTERNAL
46 TR110-3625-03IDLER BRACKET ASM
47 TR74-3280GUARD-SPLASH
48 TR112-4763SPRING-ARM, IDLER
49 TR1-633166Spannrolle
50 TR108-8802IDLER BUSHING AND SPACER ASM
51 TR323-42Schraube
52 TR3256-25Scheibe
53 TR112-4787GUIDE-BELT, IDLER
54 TR114-3600SEAL-DOOR, RECYCLE
56 TR614249Kabelband
