Toro 74433 (ZD420) - TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999) STYLING ASSEMBLY Ricambi

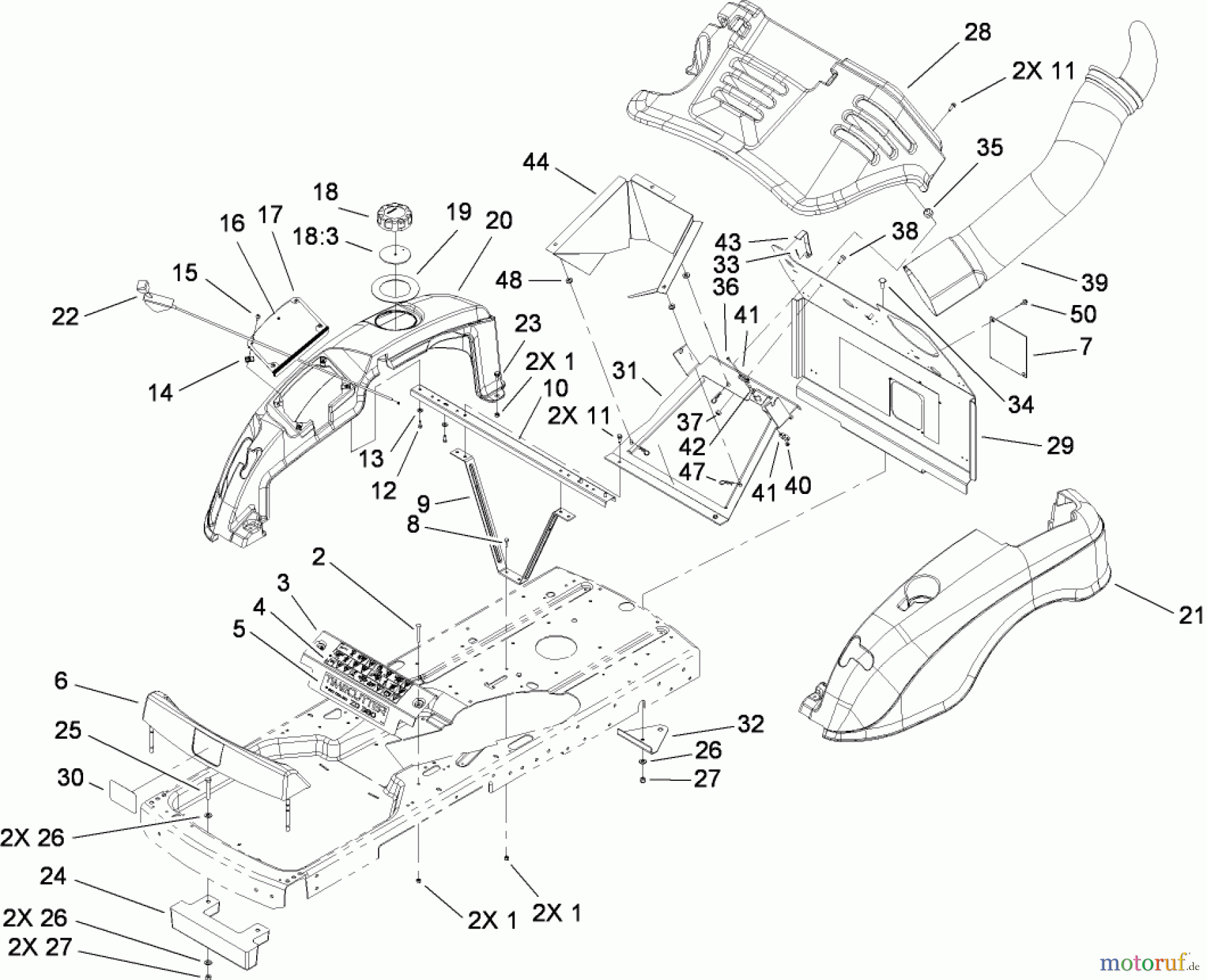

STYLING ASSEMBLY 74433 (ZD420) - Toro TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74433 (ZD420) - Toro TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999) STYLING ASSEMBLY
PosizioneArticolo numeroDescrizione
1 Toro MutterTR3296-42Mutter
2 TR3229-7Mutter
3 TR106-2164-03BRACKET-SUPPORT, FRONT
4 TR110-6567DECAL-DANGER
5 TR108-8765DECAL
6 TR105-6965FOOTREST ASM
7 TR112-6702-03DOOR-PLUG ACCESS
8 Toro SchraubeTR321-4Schraube
9 TR106-6994-03U-BUEGEL
10 TR108-2313-03CHANNEL-CROSS
11 TR32144-44SCHRAUBE
12 TR46-8090Schraube
13 TR3256-22Scheibe
14 TR107069Mutter (20)
15 TR3258-166Schraube
16 TR106-2224Klebeschild
17 TR106-2167-03PANEL-CONTROL
18 TR88-3980Tankdeckel
18:3 TR88-4010Deckeldichtung
19 TR106-7042SEAL-RUBBER
20 TR106-2161ABDECKUNG
21 TR108-8824COVER-SIDE, LH
22 TR104-3626CABLE-THROTTLE
23 TR11-9030Schraube
24 TR105-6972-03WEIGHT-BAGGER
25 Toro SchraubeTR3231-2Schraube
26 Toro WASHER-FLATTR3256-24WASHER-FLAT
27 TR32-9639
28 TR110-3647COVER-ENGINE
29 TR114-3694-03SHIELD-HEAT, BAG
30 TR105-6971KLEBESCHILD
31 TR112-7565-03OFFSET HINGE ASM
32 TR114-3658-03HITCH-TRAILER
33 TR3272-6Splint
34 TR3231-22Schraube
35 TR108-2305GROMMET
36 TR3274-39Schraube
37 Toro MutterTR3296-29Mutter
38 TR322-3Schraube
39 TR110-3626TUBE-DISCHARGE
40 TR3296-12Mutter
41 TR107-9199PLATE
42 TR107-9198PIN-HOOD
43 TR114-3603TAB-SWITCH
44 TR112-7555-03DUCT-FAN, ENGINE
47 TR3290-467Haarnadelsicherung
48 TR62-1230Scheibe
50 TR46-8560SCREW-HHFTF
