Toro 74401 (Z17-44) - Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220999999) ENGINE AND CLUTCH ASSEMBLY Ricambi

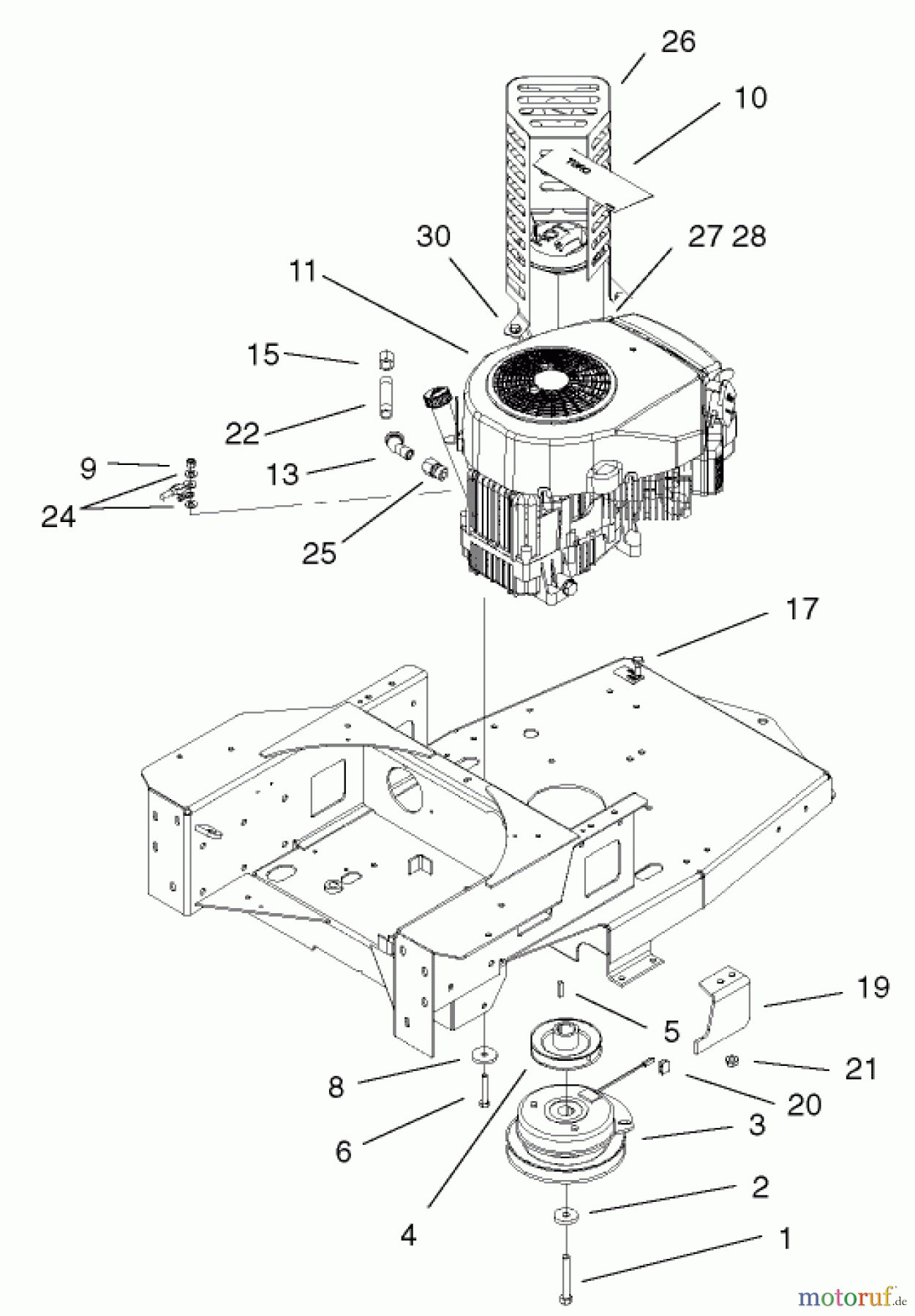

ENGINE AND CLUTCH ASSEMBLY 74401 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220999999)

Toro Neu Mowers, Zero-Turn 74401 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220999999) ENGINE AND CLUTCH ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR32121-2Spannstift
2 TR112843WASHER
3 TR104-3624CLUTCH
4 TR100-7314Riemenscheibe
5 TR5-7280KEY
6 TR322-9Schraube
8 TR62-7190Distanzscheibe
9 Toro MutterTR3296-29Mutter
10 TR105-1862KLEBESCHILD
11 TR
13 TR2811-3Winkel
15 TR288-10Kappe
17 TR323-4Schraube
19 TR104-3613-03STOP-CLUTCH
20 TR98-5023Gummipuffer
21 TR32128-21Mutter
22 TR105-1936PIPE-NIPPLE
24 TR3256-23Scheibe
25 TR103-1966Adapter
26 TR110-1888DEFLECTOR / GUARD ASM
27 TR100-6467DISCONTINUED
28 TR100-6468CLAMP-MUFFLER
30 TR322-3Schraube
