Toro 74399 (Z5020) - TimeCutter Z5020 Riding Mower, 2009 (290000001-290000439) 50 INCH DECK AND SIDE DICHARGE ASSEMBLY Ricambi

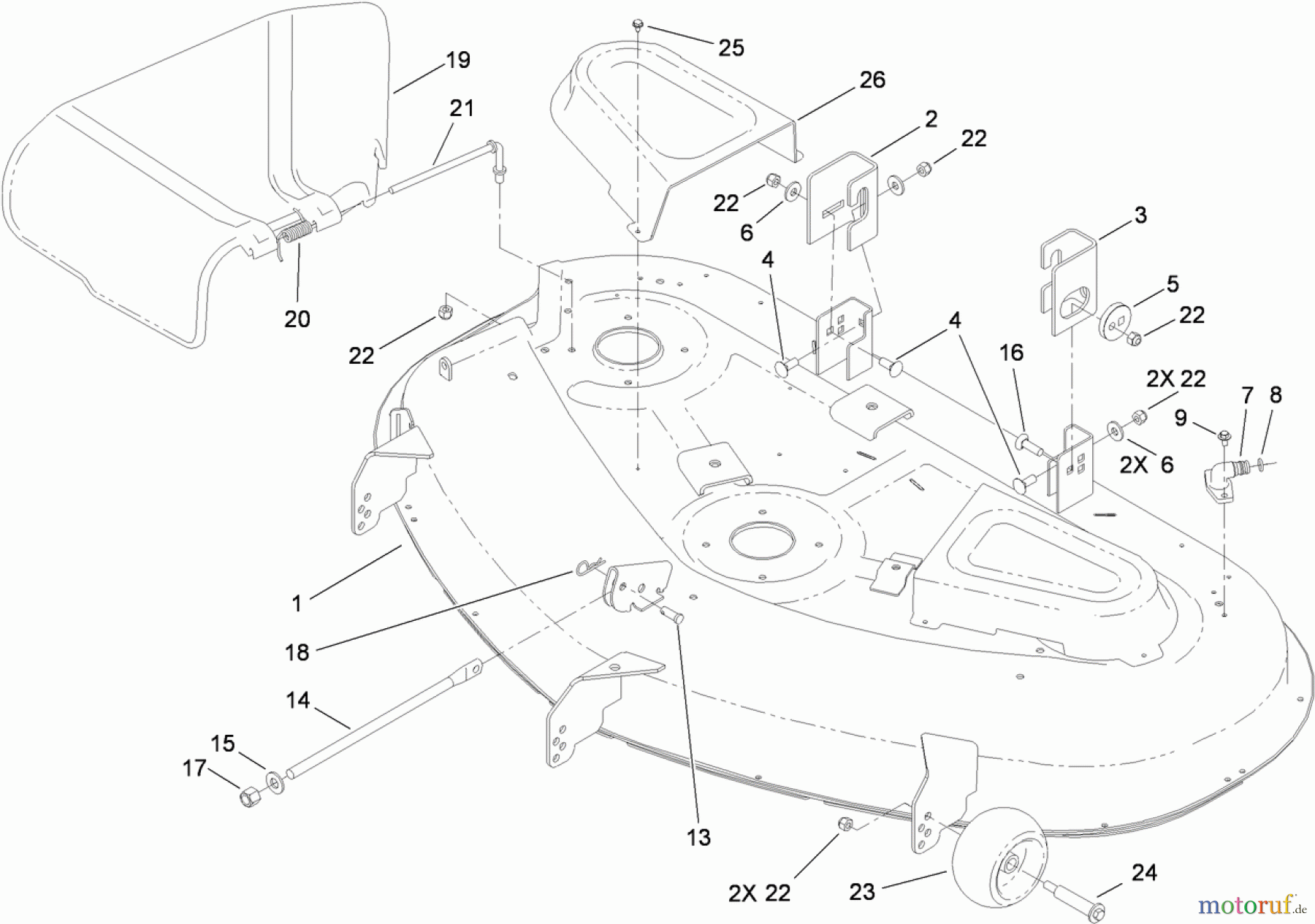

50 INCH DECK AND SIDE DICHARGE ASSEMBLY 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2009 (290000001-290000439)

Toro Neu Mowers, Zero-Turn 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2009 (290000001-290000439) 50 INCH DECK AND SIDE DICHARGE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR117-129150 INCH DECK ASM
2 TR108-7836BRACKET-HANGER, RIGHT REAR
3 TR108-7838BRACKET-HANGER, LEFT REAR
4 Toro SchraubeTR3231-2Schraube
5 TR112-3980ECCENTRIC
6 TR80-6990Scheibe
7 TR95-2747FITTING-WASHOUT
8 TR46-6290O-RING, SEAL
9 TR46-8560SCREW-HHFTF
13 TR1-808284PIN-CLEVIS
14 TR108-7847ROD-LIFT
15 TR87-7270Scheibe
16 TR3231-28SCREW-CARR
17 TR3296-23Mutter
18 TR9335054Haarnadelsicherung
19 TR108-7895DEFLECTOR
20 TR110-6694SPRING-TORSION
21 TR112-3950ROD-PIVOT
22 TR32-9639
23 TR1-603299LAUFROLLE
24 TR112-3977BOLT-SHOULDER
25 TR32104-76Schraube
26 TR108-7890COVER-BELT
