Toro 74390 (ZS 4200TF) - TimeCutter ZS 4200TF Riding Mower, 2012 (SN 312000001-312999999) MAIN FRAME AND FRONT AXLE ASSEMBLY Ricambi

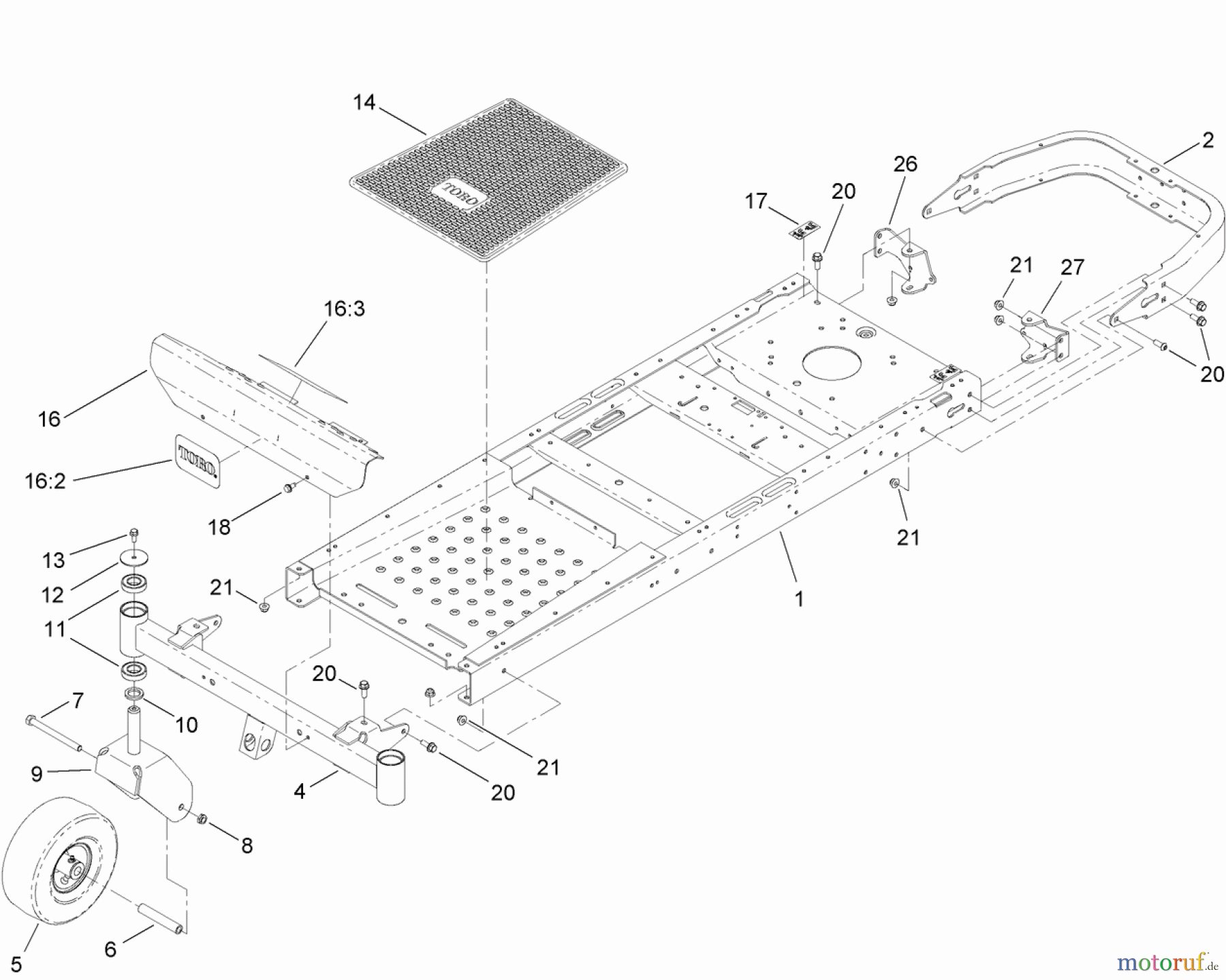

MAIN FRAME AND FRONT AXLE ASSEMBLY 74390 (ZS 4200TF) - Toro TimeCutter ZS 4200TF Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74390 (ZS 4200TF) - Toro TimeCutter ZS 4200TF Riding Mower, 2012 (SN 312000001-312999999) MAIN FRAME AND FRONT AXLE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR121-2970-01FRAME
2 TR110-1920-01BUMPER-REAR
4 TR120-5516-01AXLE-FRONT
5 TR120-5515CASTER WHEEL ASM
6 TR104-3667Radbuechse
7 TR3252-2SCHRAUBE
8 TR3296-45NUT-LOCK, NI
9 TR120-2266-01FORK-CASTER
10 TR117-7394WASHER-THRUST
11 TR109-3678BEARING-BALL
12 TR119-8915WASHER
13 TR3234-47SCREW-HHF
14 TR120-5455MAT-FLOOR
16 TR125-0072
16:2 TR105-8278Klebeschild
16:3 TR120-2239DECAL-DANGER
17 TR121-2989DECAL-BYPASS
18 TR32144-70Schraube
20 TR3234-42Innensechskantschraube
21 TR104-8301Mutter
26 TR121-0737-01MOUNT-HYDRO, REAR RH
27 TR121-0738-01MOUNT-HYDRO, REAR LH
