Toro 74387 (ZS 5000) - TimeCutter ZS 5000 Riding Mower, 2012 (SN 312000001-312999999) 50 INCH DECK ASSEMBLY Ricambi

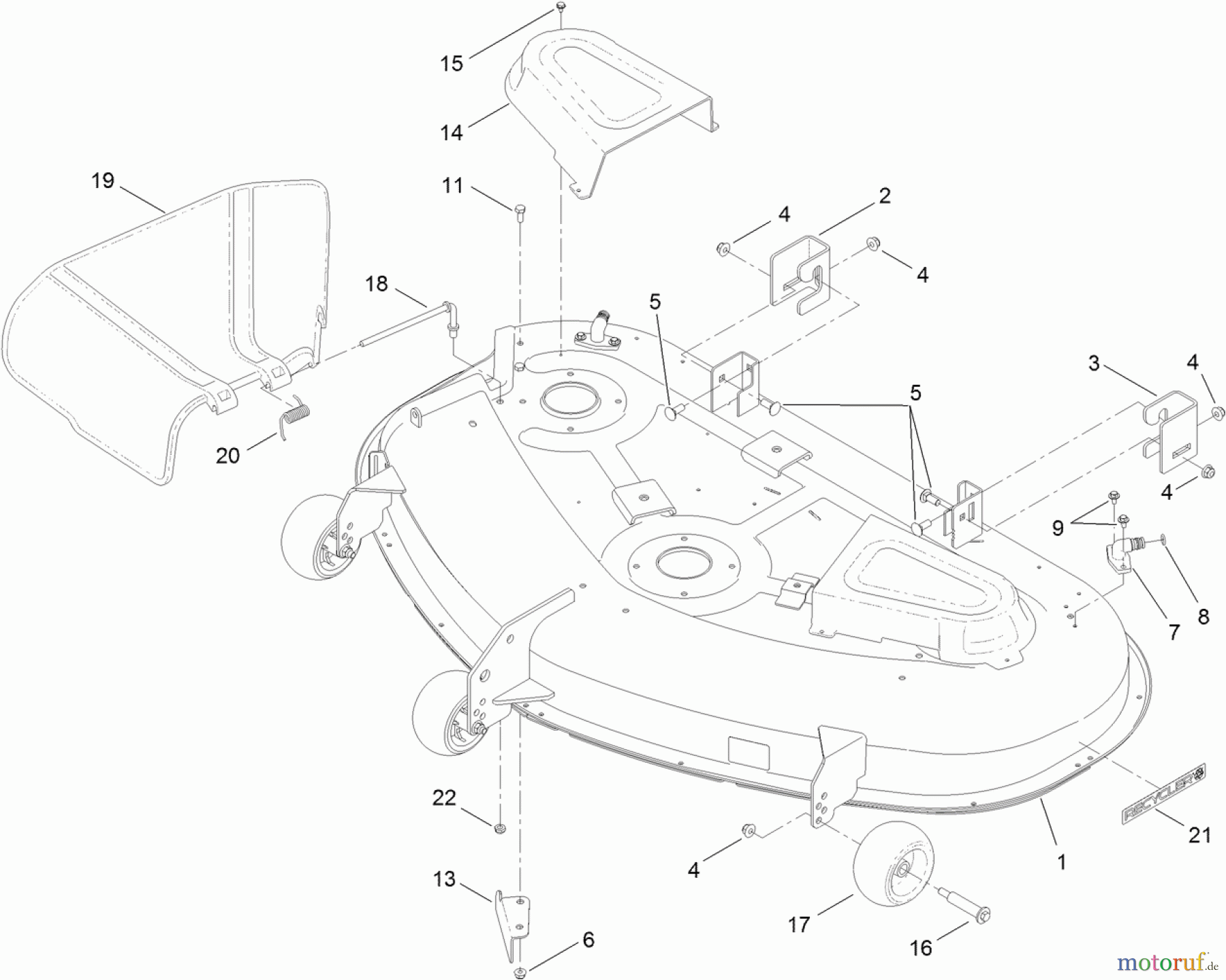

50 INCH DECK ASSEMBLY 74387 (ZS 5000) - Toro TimeCutter ZS 5000 Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74387 (ZS 5000) - Toro TimeCutter ZS 5000 Riding Mower, 2012 (SN 312000001-312999999) 50 INCH DECK ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR119-884150 INCH DECK AND DECAL ASM
2 TR119-3494BRACKET-HANGER, RH
3 TR119-3496BRACKET-HANGER, LH
4 TR104-8301Mutter
5 Toro SchraubeTR3231-2Schraube
6 TR104-8300Mutter
7 TR95-2747FITTING-WASHOUT
8 TR46-6290O-RING, SEAL
9 TR46-8560SCREW-HHFTF
11 TR322-3Schraube
13 TR112-3983-03BAFFLE-CUTOFF
14 TR108-7890COVER-BELT
15 TR32104-76Schraube
16 TR112-3977BOLT-SHOULDER
17 TR1-603299LAUFROLLE
18 TR112-3950ROD-PIVOT
19 TR108-7895DEFLECTOR
20 TR110-6694SPRING-TORSION
21 TR119-2368DECAL-RECYCLER
22 TR3296-59Mutter
