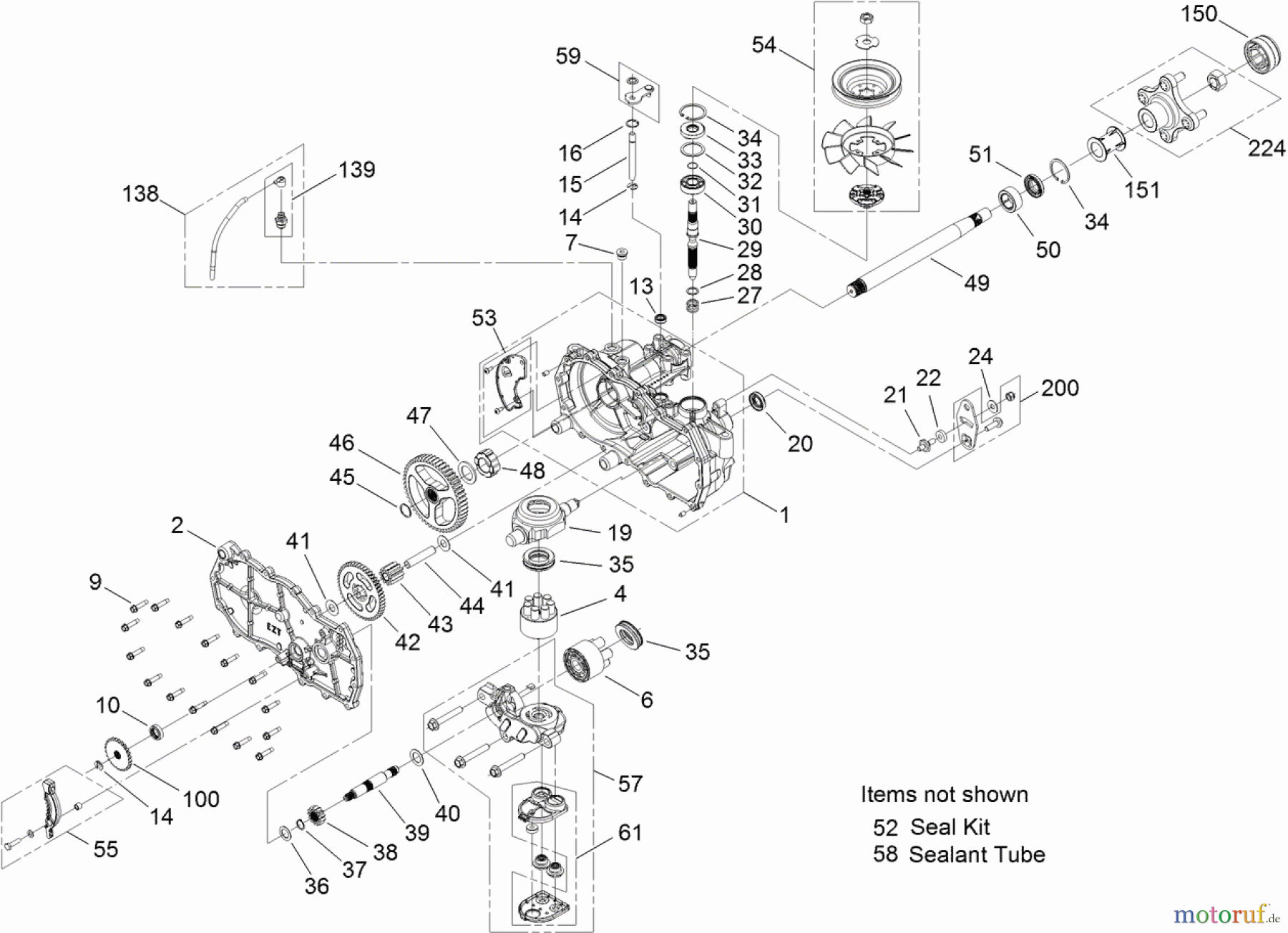

Toro 74387 (ZS 5000) - TimeCutter ZS 5000 Riding Mower, 2011 (311000001-311999999) RH HYDRO TRANSAXLE ASSEMBLY NO. 119-3351 Ricambi

RH HYDRO TRANSAXLE ASSEMBLY NO. 119-3351 74387 (ZS 5000) - Toro TimeCutter ZS 5000 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74387 (ZS 5000) - Toro TimeCutter ZS 5000 Riding Mower, 2011 (311000001-311999999) RH HYDRO TRANSAXLE ASSEMBLY NO. 119-3351
PosizioneArticolo numeroDescrizione
1 TR106-8674MAIN HOUSING ASM
2 TR106-8675SIDE ASM
4 TR110-8561PUMP BLOCK ASM
6 TR103-2666CYLINDER BLOCK KIT
7 TR104-2189PLUG-THREAD, STRAIGHT
9 TR104-5305Schraube
10 TR104-5347Simmering
13 TR106-8676SEAL-LIP
14 TR106-8677Sicherungsring
15 TR106-8678ROD-BYPASS
16 TR106-8679RING-RETAINING, INT
19 TR104-5304SWASHPLATE-TRUNNION
20 TR104-5313SEAL-LIP
21 TR104-2116STEHBOLZEN
22 TR112-9853PUCK-FRICTION
24 TR114-8491WASHER
27 TR120-5537SPRING-COMPRESSION
28 TR120-5538WASHER
29 TR104-5306Zahnwelle
30 TR104-5311Kugellager
31 TR104-5307RING-RETAINING
32 TR104-5308Distanzscheibe
33 TR104-5310SEAL-LIP
34 TR104-5309Seegerring
35 TR94-6922BEARING-THRUST
36 TR104-5339SCHEIBE
37 TR104-5340RING-RETAINING
38 TR104-5316ZAHNRAD
39 TR106-8683SHAFT-MOTOR
40 TR104-5360WASHER
41 TR119-5541
42 TR104-5317ZAHNRAD
43 TR104-5318GEAR-JACKSHAFT, 10T
44 TR104-5329PIN-JACKSHAFT
45 TR112-9854RING-SPIRAL, RETAINING
46 TR112-9855GEAR-52T, BULL
47 TR112-9856WASHER
48 TR112-9857BEARING-SLEEVE
49 TR120-7104SHAFT-AXLE
50 TR112-9859BUSHING-AXLE
51 TR112-9860SEAL-LIP
52 TR106-8686SEAL KIT
53 TR106-8687EXPANSION PLATE KIT
54 TR120-7105
55 TR106-8688Bremsarm
57 TR112-9862CENTER SECTION FILTER KIT
58 TR104-2147Dichtungsmasse
59 TR107-2489BYPASS ARM KIT
61 TR114-1634FILTER KIT
100 TR106-8694Scheibe
138 TR112-9866BREATHER KIT
139 TR114-1635BREATHER ASM
150 TR115-5057COVER-NUT, AXLE
151 TR120-7109TUBE-AXLE
200 TR117-5362ARM CONTROL KIT
224 TR109-5939HUB KIT
