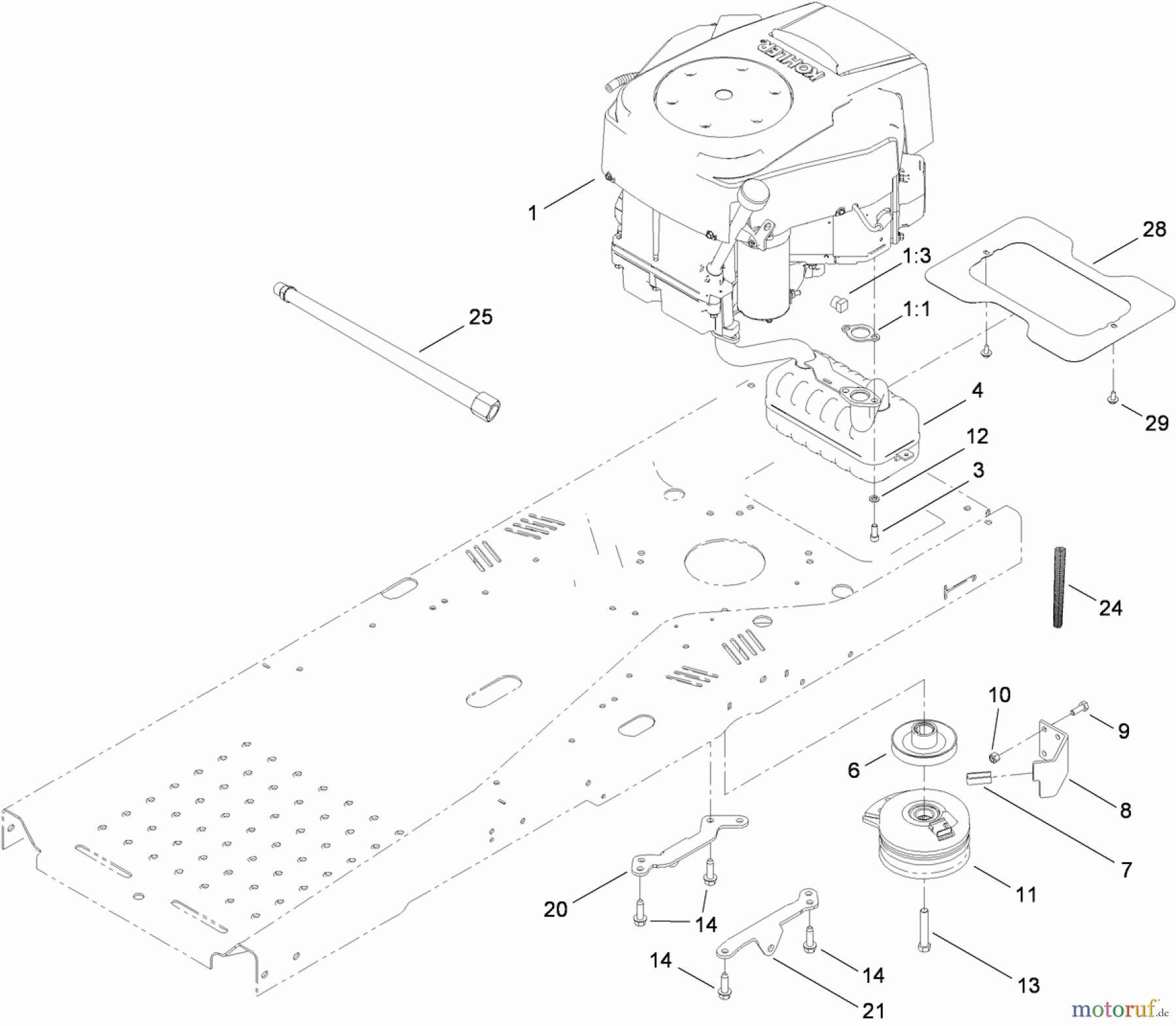

ENGINE AND CLUTCH ASSEMBLY 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2010 (310000001-310999999) ENGINE AND CLUTCH ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR
1:1 TR110-6697GASKET-EXHAUST
1:3 TR281-2Oelablass-Schraube
3 TR3274-10Schraube
4 TR117-7462MUFFLER-KOHLER TWIN
6 TR114-1622PULLEY-ENGINE
7 TR112-4033BUMPER-PAD
8 TR110-6896STOP-CLUTCH
9 TR322-4Schraube
10 Toro MutterTR3296-29Mutter
11 TR117-7468CLUTCH-ELECTRIC
12 TR3253-4Federring
13 TR3212-10SCREW-HH
14 TR32144-109Schraube
20 TR110-6798SUPPORT-HYDRO, RH
21 TR110-6799SUPPORT-HYDRO, LH
24 TR112-9849TUBING-CONVOLUTED
25 TR117-1261OIL DRAIN HOSE ASM
28 TR114-8544-03SHIELD-HEAT
29 TR46-8560SCREW-HHFTF
