Toro 74381 (Z4202) - TimeCutter Z4202 Riding Mower, 2009 (290000001-290000210) 42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Ricambi

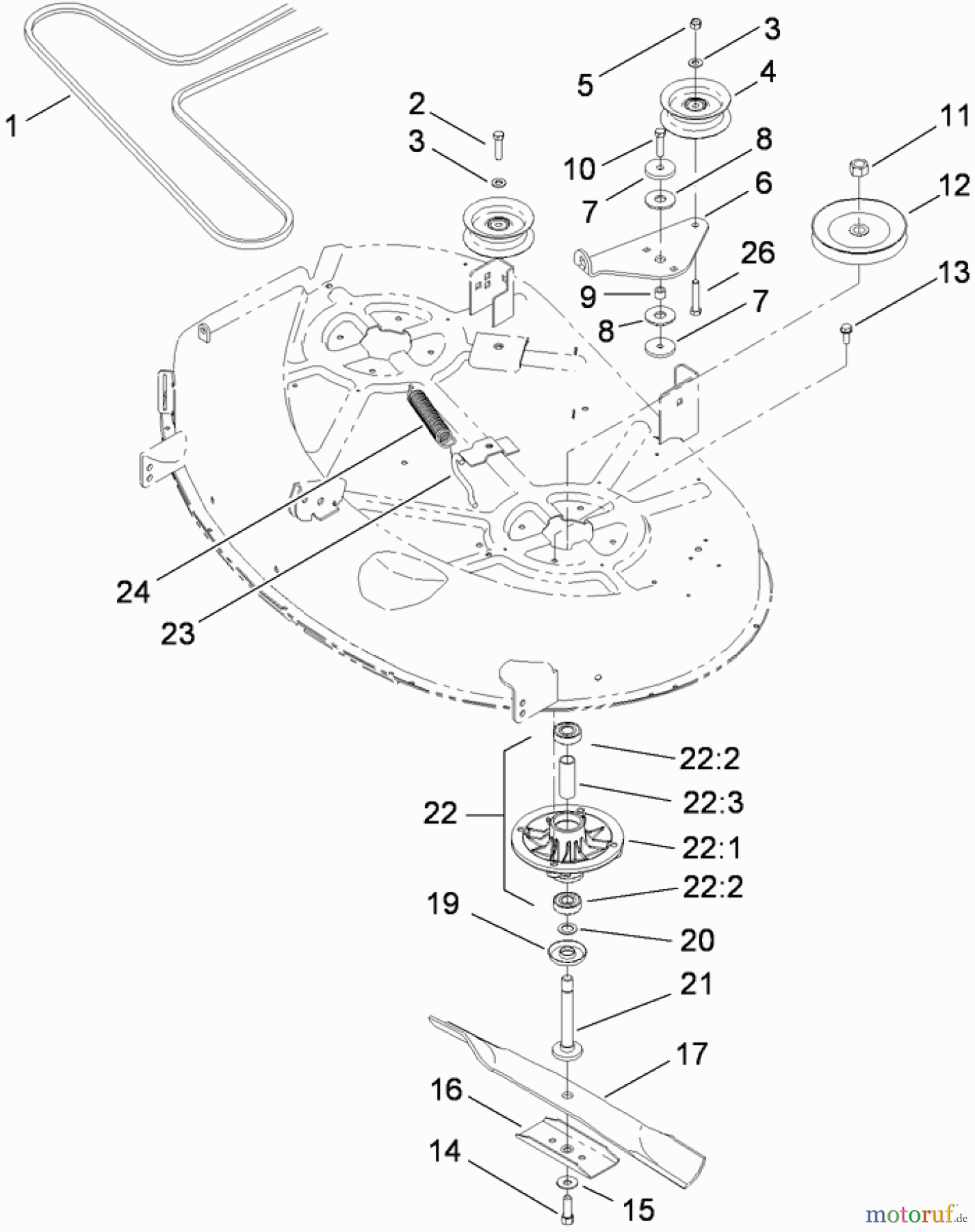

42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2009 (290000001-290000210)

Toro Neu Mowers, Zero-Turn 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2009 (290000001-290000210) 42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR110-6871V-BELT
2 TR323-9Schraube
3 Toro WASHER-FLATTR3256-24WASHER-FLAT
4 TR106-2175Spannrolle
5 TR32-9639
6 TR114-8540ARM-IDLER
7 TR110-9981WASHER-PLAIN
8 Toro WASHER-FRICTION, COMPOSITETR114-0463WASHER-FRICTION, COMPOSITE
9 TR115-4986SPACER
10 TR323-8SCREW-HH
11 TR3219-6Mutter
12 TR110-6864PULLEY
13 Toro SchraubeTR32144-41Schraube
14 Toro SCHRAUBETR26-0671SCHRAUBE
15 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
16 TR106-2248-03STIFFENER-BLADE
17 TR106-2247-03BLADE
19 TR80-4360SHIELD-BEARING
20 TR80-4380Distanzscheibe
21 TR117-1192SHAFT-SPINDLE
22 TR
22:1 TR88-4510Lagergehaeuse
22:2 TR100-1048Kugellager
22:3 TR62-3661Buechse
23 TR88-5970HOOK-RETURN, SPRING
24 TR106-2177SPRING-EXTENSION
26 TR323-10Schraube
