Toro 74376 (Z5035) - TimeCutter Z5035 Riding Mower, 2010 (310000001-310999999) FUEL DELIVERY AND BODY STYLING ASSEMBLY Ricambi

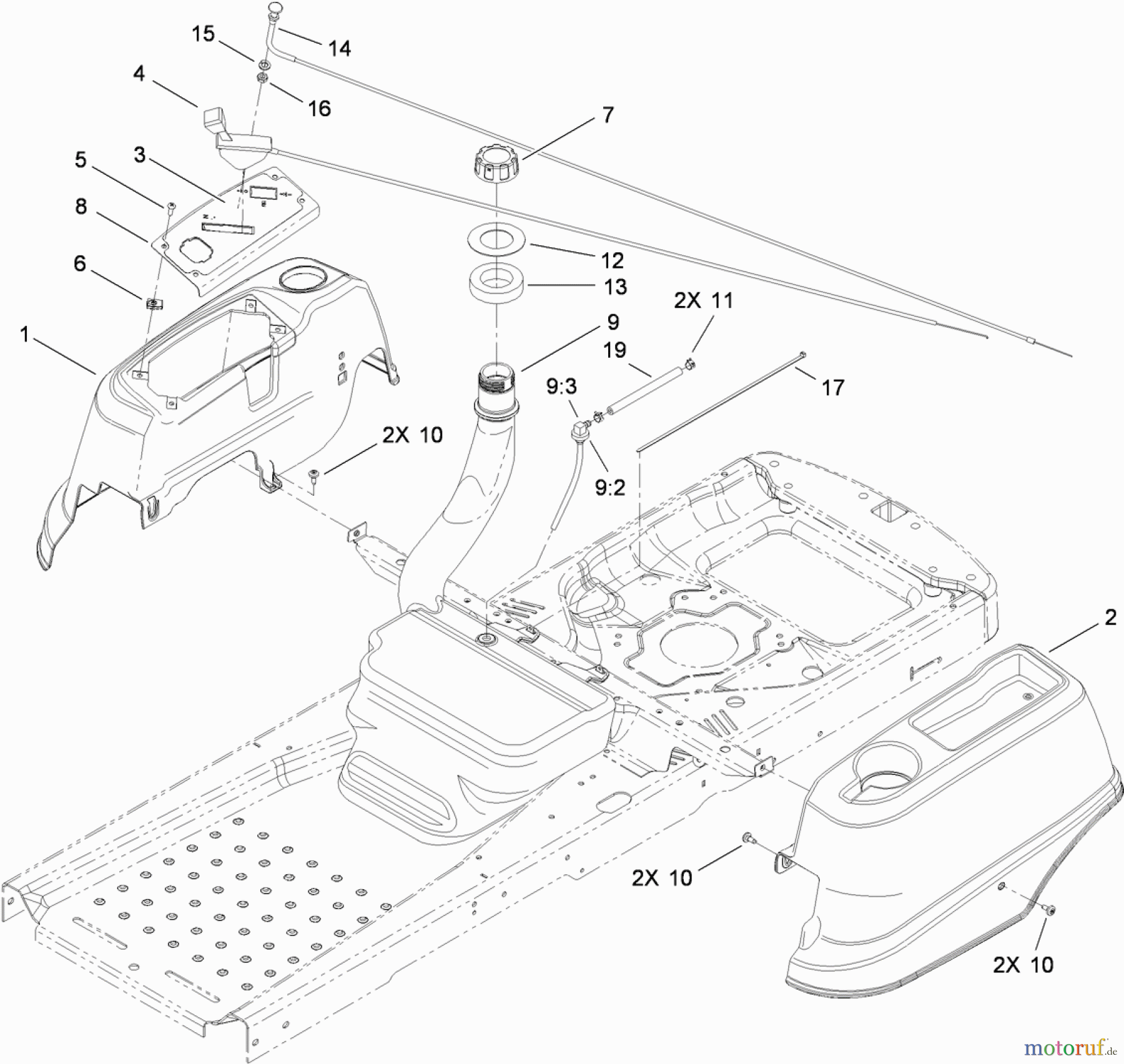

FUEL DELIVERY AND BODY STYLING ASSEMBLY 74376 (Z5035) - Toro TimeCutter Z5035 Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74376 (Z5035) - Toro TimeCutter Z5035 Riding Mower, 2010 (310000001-310999999) FUEL DELIVERY AND BODY STYLING ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR117-1219POD-RH
2 TR117-1220POD-LH
3 TR115-2501DECAL-PANEL, CONTROL
4 TR112-9752CABLE-THROTTLE
5 TR3258-166Schraube
6 TR107069Mutter (20)
7 TR93-7198GAS CAP ASM
8 TR110-1927-03PANEL-CONTROL
9 TR110-6890FUEL TANK ASM
9:2 TR46-6560BUSHING
9:3 TR95-3970FITTING-90 DEGREE
10 TR112-4004SCREW-SHOULDER
11 TR2412-98CLAMP-HOSE
12 TR112-9760WASHER-RUBBER
13 TR55-9310SEAL-FOAM
14 TR112-9753CABLE-CHOKE
15 TR3253-21Federring
16 TR3220-3Mutter
17 TR100-9064Kabelband
19 TR107-0589HOSE-FUEL
