Toro 74375 (Z5060) - TimeCutter Z5060 Riding Mower, 2009 (290000200-290999999) ENGINE AND CLUTCH ASSEMBLY Ricambi

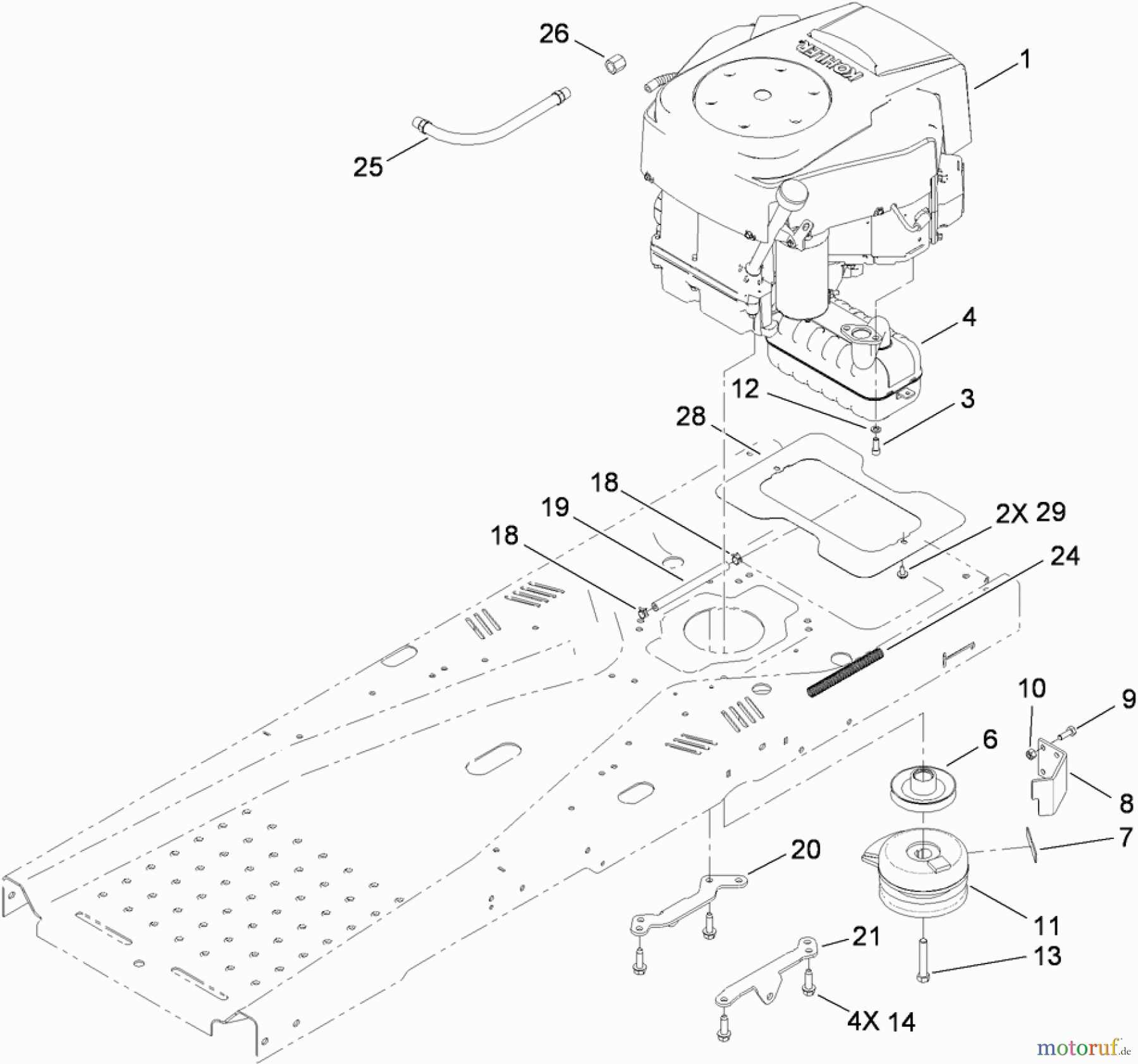

ENGINE AND CLUTCH ASSEMBLY 74375 (Z5060) - Toro TimeCutter Z5060 Riding Mower, 2009 (290000200-290999999)

Toro Neu Mowers, Zero-Turn 74375 (Z5060) - Toro TimeCutter Z5060 Riding Mower, 2009 (290000200-290999999) ENGINE AND CLUTCH ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR
3 TR3274-10Schraube
4 TR117-1271MUFFLER-KOHLER TWIN
6 TR114-1622PULLEY-ENGINE
7 TR112-4033BUMPER-PAD
8 TR110-6896STOP-CLUTCH
9 TR322-4Schraube
10 Toro MutterTR3296-29Mutter
11 TR110-6766CLUTCH-ELECTRIC, PTO
12 TR3253-4Federring
13 TR32121-1Stift
14 TR32144-109Schraube
18 TR2412-98CLAMP-HOSE
19 TR107-0589HOSE-FUEL
20 TR110-6798SUPPORT-HYDRO, RH
21 TR110-6799SUPPORT-HYDRO, LH
24 TR112-9849TUBING-CONVOLUTED
25 TR82-4201HYD HOSE ASM
26 TR288-10Kappe
28 TR114-8544SHIELD-HEAT
29 TR46-8560SCREW-HHFTF
