Toro 74373 (Z5030) - TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999) CRANKCASE ASSEMBLY KOHLER SV720-0039 Ricambi

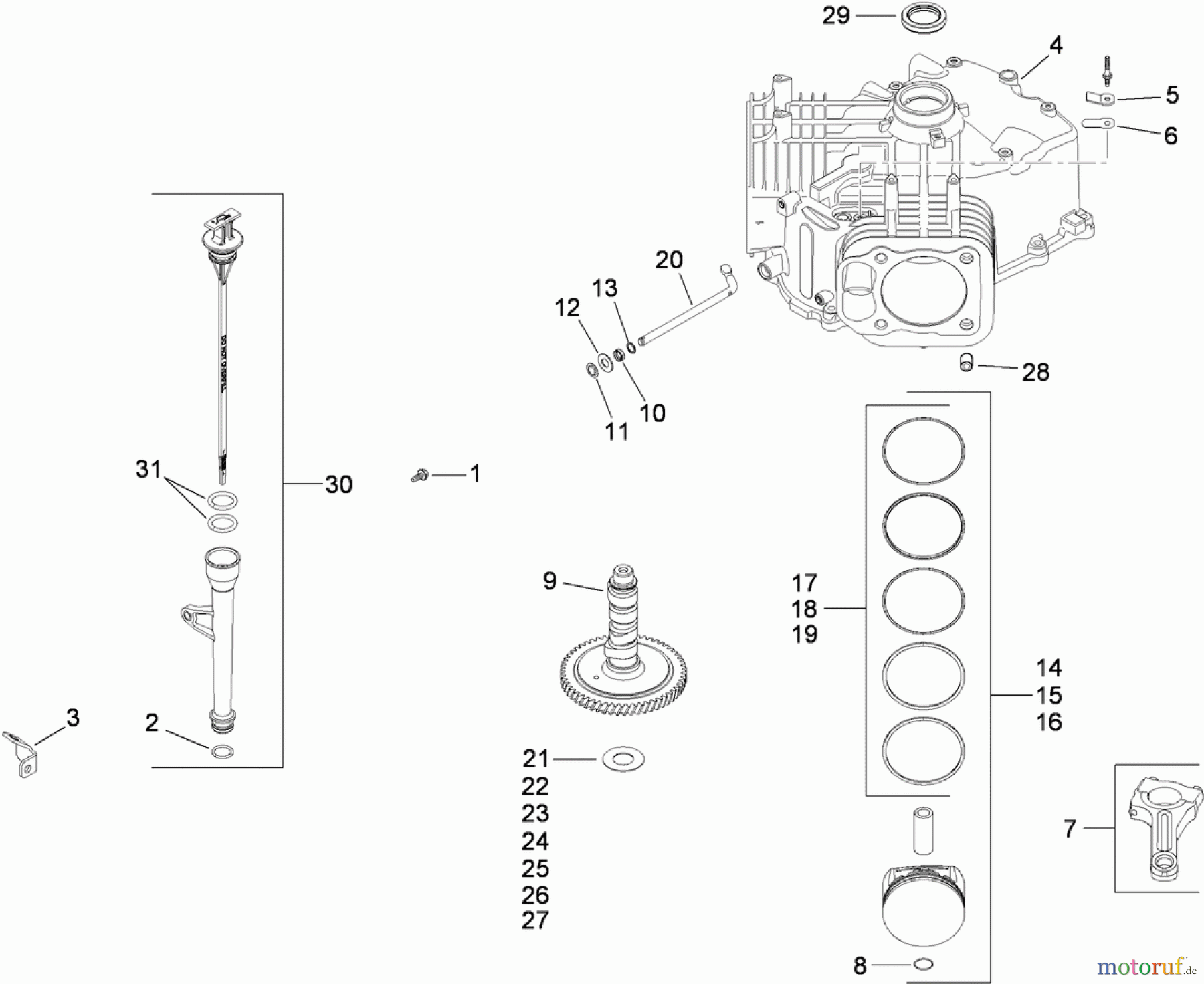

CRANKCASE ASSEMBLY KOHLER SV720-0039 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999)

Toro Neu Mowers, Zero-Turn 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999) CRANKCASE ASSEMBLY KOHLER SV720-0039
PosizioneArticolo numeroDescrizione
1 KHM-545013-SSCREW, FLG THD FRM M5X0.8X13
2 KH1215301-SO-RING, LOWER OIL FILL TUBE
3 KH2412619-SBRACKET, OIL FILL TUBE
4 KH3252203SV710-740 SHORTBLOCK
5 KH2401804-SRETAINER, BREATHER REED
6 KH1240202-SREED, BREATHER
7 KH2406724-SSIEHE 2406728-S-KOH
8 KH2401801-SRETAINER, PISTON PIN
9 KH3201201-SKIT, CAMSHAFT
10 KH2803209-SSEAL, GOVERNOR CROSS SHAFT
11 KH2401809-SRETAINER, RING
12 KHM-931010-SWASHER, FLAT 9 MM
13 KH2446815-SWASHER, FLAT 11/32"
14 KH2587405-SKIT, PISTON
15 KH2587402-SKIT,PISTON W/RING (0.08) 83mm
16 KH2587408-SKIT,PISTON W/RING (0.25) 83mm
17 KH2410814-SRING SET (STD)
18 KH2410815-SRING SET (.08)
19 KH2410816-SRING SET (.25)
20 KH2414438-SSHAFT, GOVERNOR CROSS
21 KH1242207-SSHIM, CAMSHAFT (WHITE .028")
22 KH1242208-SSHIM, CAMSHAFT (BLUE .03")
23 KH1242209-SSHIM, CAMSHAFT (RED .032")
24 KH1242210-SSHIM, CAMSHAFT (YELLOW .034")
25 KH1242211-SSHIM, CAMSHAFT (GREEN .036")
26 KH1242212-SSHIM, CAMSHAFT (GRAY .038")
27 KH1242213-SSHIM, CAMSHAFT (BLACK .04")
28 KH2438016-SPIN, LOCATING
29 KH2403219-SSEAL, OIL (HELIX LIP)
30 KH3275504-SKIT, DIPSTICK AND TUBE
31 KH2515309-SO-RING
KH2535714-SLUBRICANT, CAMSHAFT
