Toro 74373 (Z5030) - TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) LH HYDRO ASSEMBLY NO. 110-6770 Ricambi

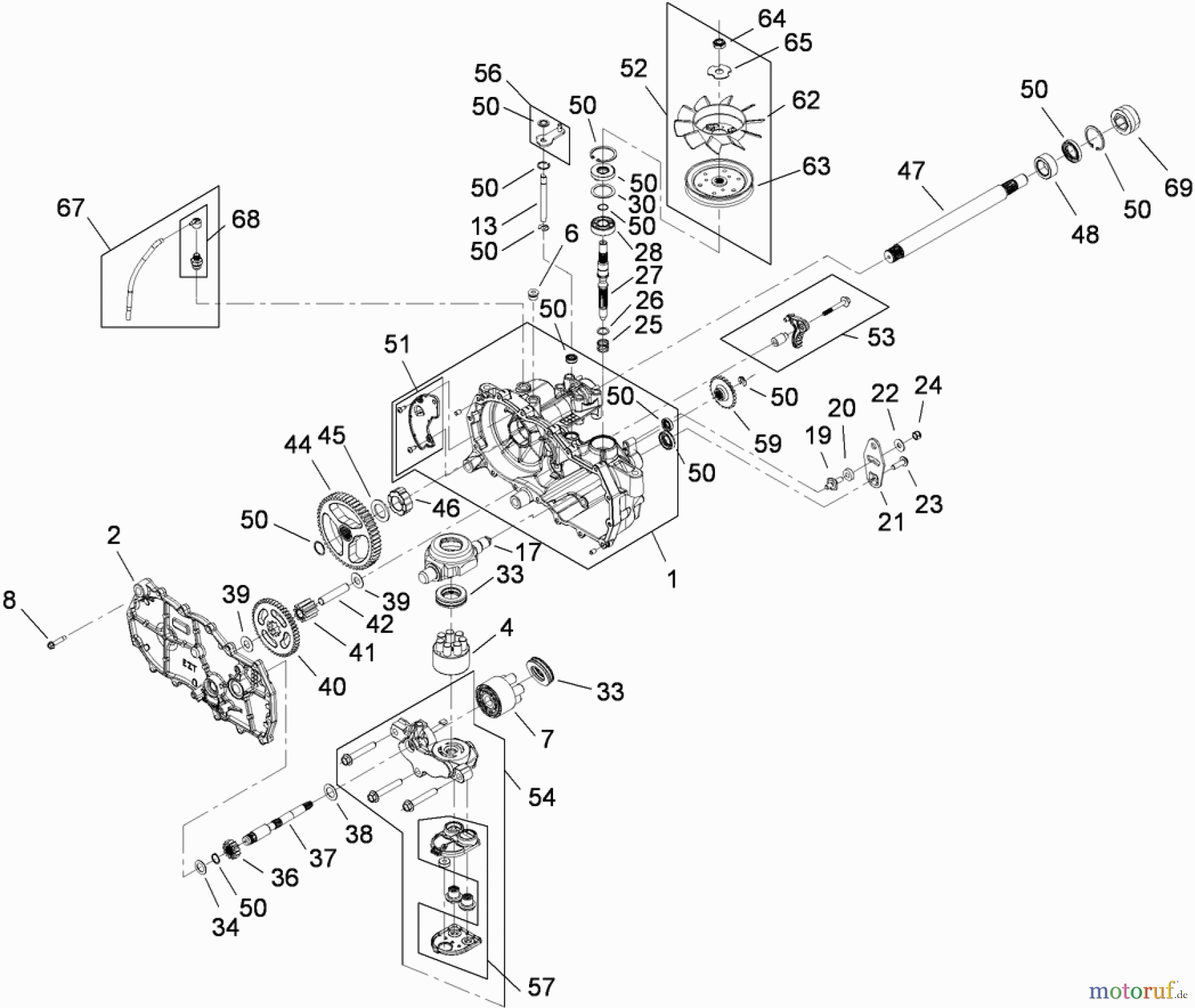

LH HYDRO ASSEMBLY NO. 110-6770 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012)

Toro Neu Mowers, Zero-Turn 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) LH HYDRO ASSEMBLY NO. 110-6770
PosizioneArticolo numeroDescrizione
1 TR114-1636LH MAIN HOUSING ASM
2 TR114-1637LH SIDE ASM
4 TR110-8561PUMP BLOCK ASM
6 TR104-2189PLUG-THREAD, STRAIGHT
7 TR103-2666CYLINDER BLOCK KIT
8 TR104-5305Schraube
13 TR106-8678ROD-BYPASS
17 TR104-5304SWASHPLATE-TRUNNION
19 TR104-2116STEHBOLZEN
20 TR112-9853PUCK-FRICTION
21 TR106-8747ARM-CONTROL
22 TR5-4460Scheibe
23 TR107-2488Schraube
24 TR105-1872NUT
25 TR94-1936SPRING-BLOCK
26 TR94-1937SCHEIBE
27 TR104-5306Zahnwelle
28 TR104-5311Kugellager
30 TR104-5308Distanzscheibe
33 TR94-6922BEARING-THRUST
34 TR104-5339SCHEIBE
36 TR104-5316ZAHNRAD
37 TR114-1632SHAFT-MOTOR
38 TR104-5360WASHER
39 TR94-1933SCHEIBE
40 TR104-5317ZAHNRAD
41 TR104-5318GEAR-JACKSHAFT, 10T
42 TR104-5329PIN-JACKSHAFT
44 TR112-9855GEAR-52T, BULL
45 TR112-9856WASHER
46 TR112-9857BEARING-SLEEVE
47 TR120-7932KIT-AXLE, LONG
48 TR112-9859BUSHING-AXLE
50 TR106-8686SEAL KIT
51 TR106-8687EXPANSION PLATE KIT
52 TR106-8698Lueftersatz
53 TR114-1633BRAKE ARM KIT
54 TR112-9862CENTER SECTION FILTER KIT
55 TR104-2147Dichtungsmasse
56 TR107-2489BYPASS ARM KIT
57 TR114-1634FILTER KIT
59 TR106-8694Scheibe
62 TR110-8566FAN-6 INCH, 10 BLADE
63 TR104-1754Riemenscheibe
64 TR105-1875NUT-LOCK
65 TR107-9122WASHER-SLOTTED
67 TR112-9866BREATHER KIT
68 TR114-1635BREATHER ASM
69 TR115-5057COVER-NUT, AXLE
