Toro 74366 (Z4235) - TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999) FRAME AND CASTER WHEEL ASSEMBLY Ricambi

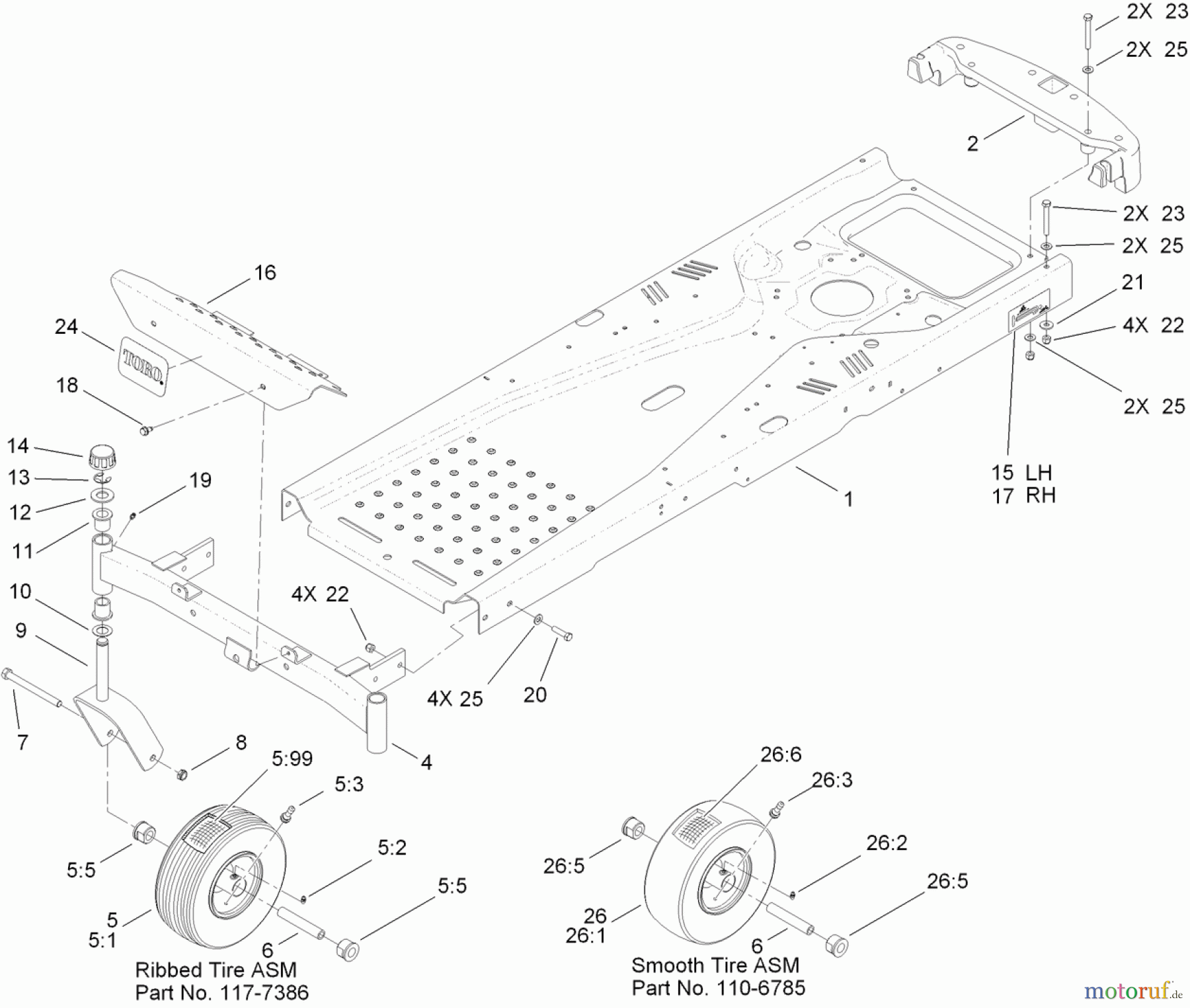

FRAME AND CASTER WHEEL ASSEMBLY 74366 (Z4235) - Toro TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74366 (Z4235) - Toro TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999) FRAME AND CASTER WHEEL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR115-2464-01FRAME
2 TR110-6899-03BUMPER-REAR
4 TR108-7882-01FRONT AXLE ASM
5 TR117-738610 INCH TIRE AND WHEEL ASM
5:1 TR117-7388TIRE-RIBBED
5:2 Toro SchmiernippelTR302-5Schmiernippel
5:3 TR5108VENTIL
5:5 TR114-1640BUSHING-FLANGE
5:99 TR93-4244Schlauch
6 TR104-3667Radbuechse
7 TR3252-2SCHRAUBE
8 TR3296-45NUT-LOCK, NI
9 TR108-7851-01CASTER FORK ASM
10 TR110-6767WASHER-THRUST
11 TR1-303514BEARING-FLANGED
12 TR104-8076Scheibe
13 TR32151-103Seegerring
14 TR61-9780Abdeckung
15 TR114-8532DECAL-TRANSPORT, LH
16 TR108-7855-03FOOTREST
17 TR114-8531DECAL-TRANSPORT, RH
18 TR32104-32SCREW-HWH
19 Toro SchmiernippelTR302-5Schmiernippel
20 TR323-8SCREW-HH
21 TR80-6990Scheibe
22 TR32-9639
23 TR323-13Schraube
24 TR99-2385DECAL
25 Toro WASHER-FLATTR3256-24WASHER-FLAT
26 TR110-6785CASTER WHEEL ASM
26:1 TR110-6791TIRE-SMOOTH
26:2 Toro SchmiernippelTR302-5Schmiernippel
26:3 TR232-27Ventil
26:5 TR114-1640BUSHING-FLANGE
26:6 TR93-4244Schlauch
