Toro 74366 (Z4235) - TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999) ENGINE AND CLUTCH ASSEMBLY Ricambi

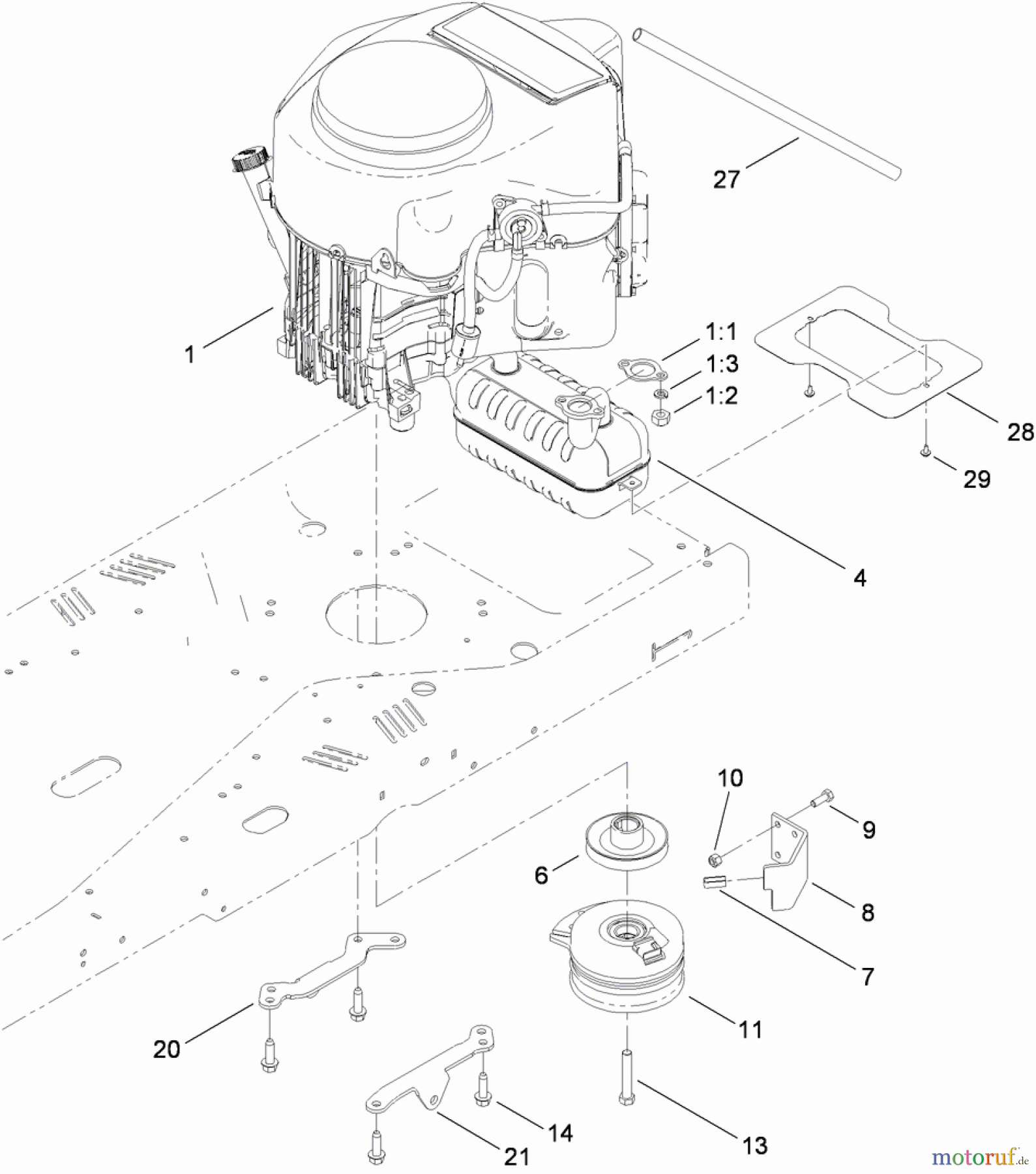

ENGINE AND CLUTCH ASSEMBLY 74366 (Z4235) - Toro TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999)
| Posizione | Articolo numero | Descrizione | |
| 1 | TR | ||
| 1:1 | TR112-9820 | ||
| 1:2 | TR112-9834 | NUT | |
| 1:3 | TR112-9835 | ||
| 4 | TR117-7256 | MUFFLER-KAWASAKI | |
| 6 | TR114-1622 | PULLEY-ENGINE | |
| 7 | TR112-4033 | BUMPER-PAD | |
| 8 | TR110-6896 | STOP-CLUTCH | |
| 9 | TR322-4 | Schraube | |
| 10 |  | TR3296-29 | Mutter |
| 11 | TR117-7468 | CLUTCH-ELECTRIC | |
| 13 | TR3212-10 | SCREW-HH | |
| 14 | TR323-50 | Schraube | |
| 20 | TR110-6798 | SUPPORT-HYDRO, RH | |
| 21 | TR110-6799 | SUPPORT-HYDRO, LH | |
| 27 | TR106-7022 | TUBE-DRAIN, OIL | |
| 28 | TR114-8544-03 | SHIELD-HEAT | |
| 29 | TR46-8560 | SCREW-HHFTF | |
