Toro 74365 (Z4235) - TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999) DECK LIFT ASSEMBLY Ricambi

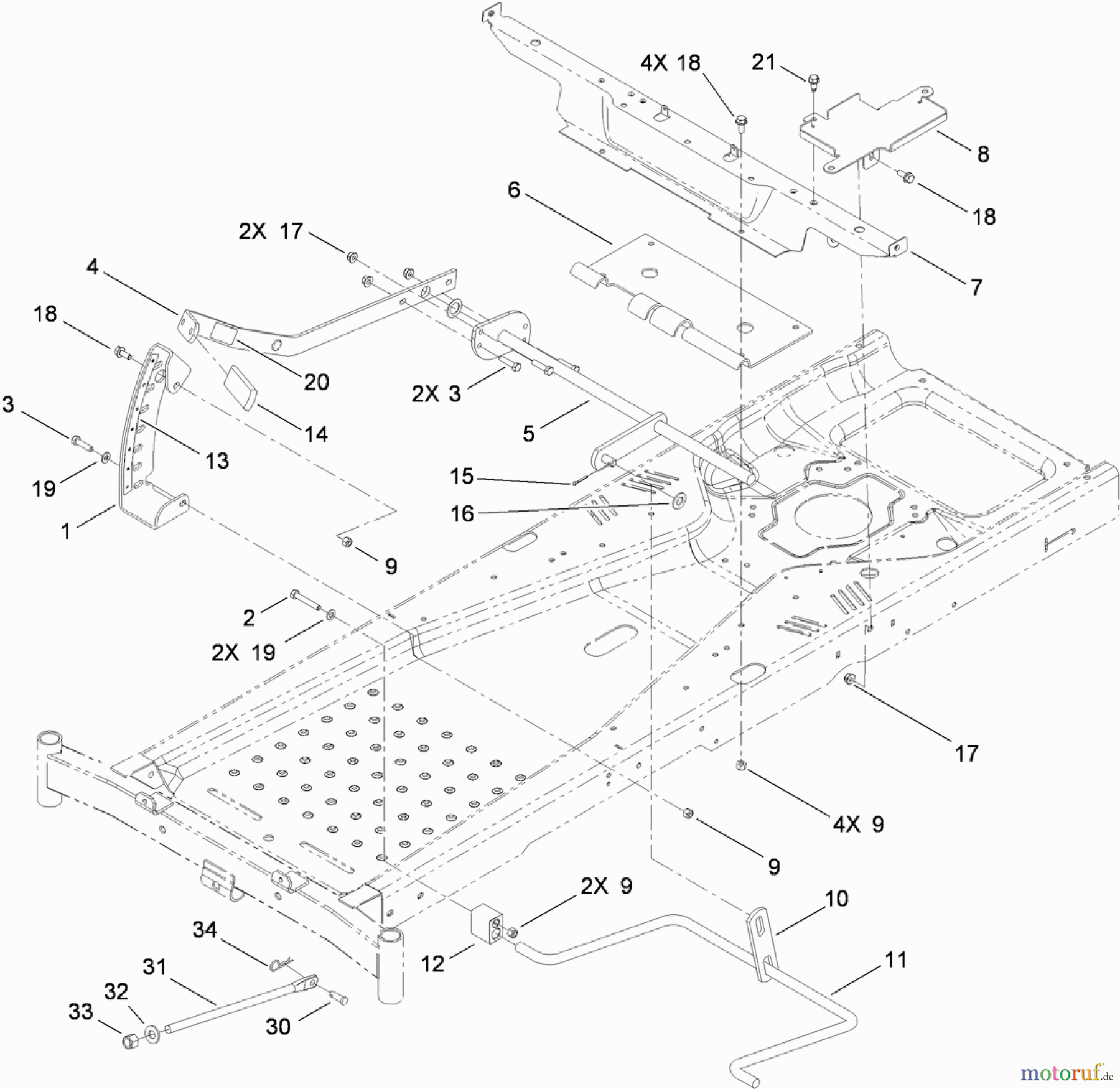

DECK LIFT ASSEMBLY 74365 (Z4235) - Toro TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74365 (Z4235) - Toro TimeCutter Z4235 Riding Mower, 2010 (310000001-310999999) DECK LIFT ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-4027-03SECTOR-HOC
2 TR322-10Schraube
3 TR322-6Schraube
4 TR112-3960-03LIFT ARM ASM
5 TR108-7841-03LIFT LEVER ASM
6 TR110-6800-03PLATE-LIFT
7 TR110-6805-03BRACKET-SEAT/PODS
8 TR110-1937-03TRAY-BATTERY
9 Toro MutterTR3296-29Mutter
10 TR108-7840LINK-LIFT
11 TR108-7839ARM-LIFT, REAR
12 TR108-7845BLOCK-PIVOT
13 TR112-9802DECAL-HOC
14 TR105-3450GRIP-LEVER, LIFT
15 TR3272-10PIN-COTTER
16 TR3256-26WASHER-FLAT
17 TR104-8300Mutter
18 TR3234-47SCREW-HHF
19 TR3256-23Scheibe
20 TR106-8743DECAL-HOC
21 TR32104-32SCREW-HWH
30 TR1-808284PIN-CLEVIS
31 TR108-7847ROD-LIFT
32 TR87-7270Scheibe
33 TR3296-23Mutter
34 TR9335054Haarnadelsicherung
