Toro 74363 (Z4200) - TimeCutter Z4220 Riding Mower, 2009 (290000001-290000504) STYLING AND FUEL SYSTEM ASSEMBLY Ricambi

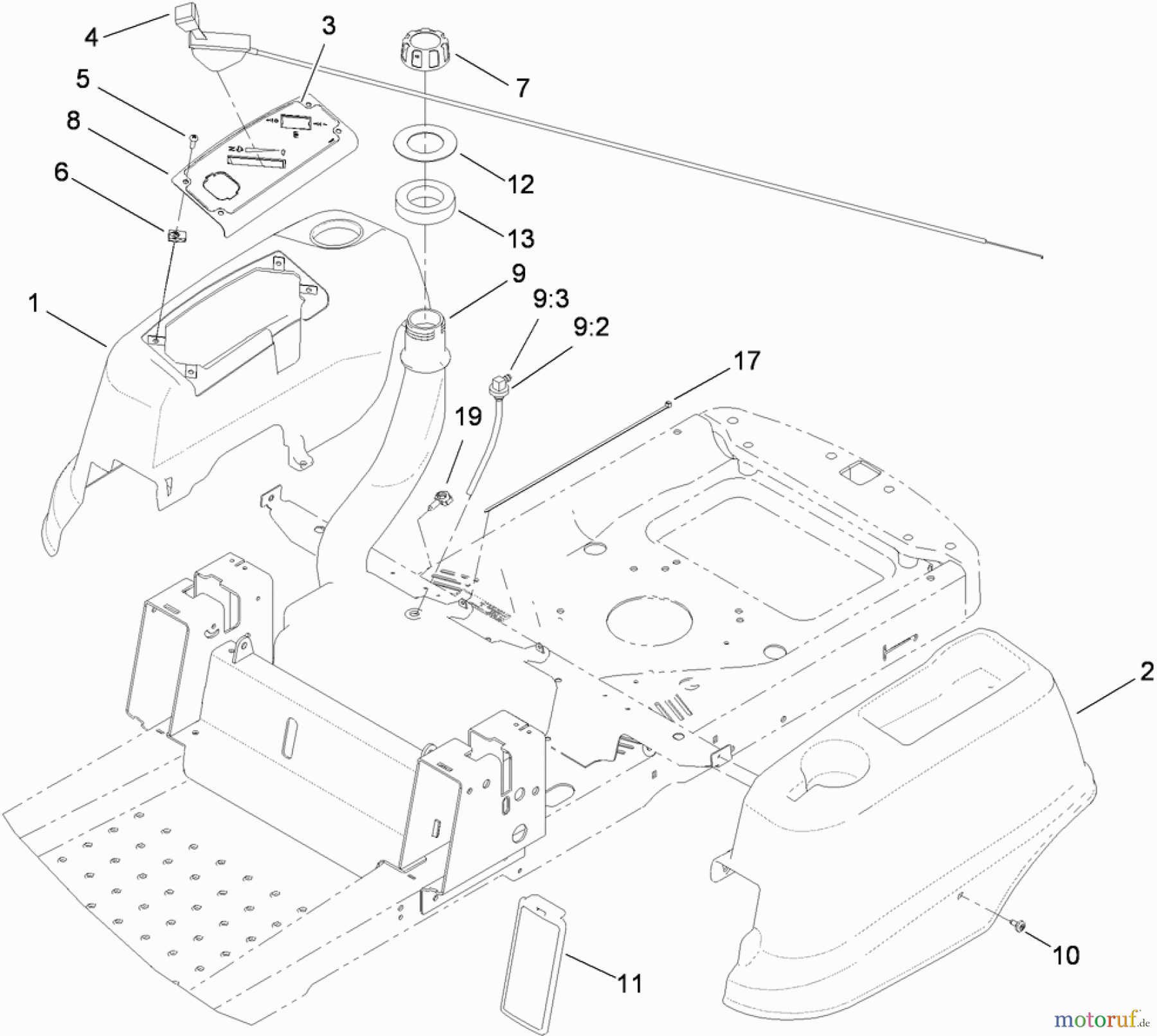

STYLING AND FUEL SYSTEM ASSEMBLY 74363 (Z4200) - Toro TimeCutter Z4220 Riding Mower, 2009 (290000001-290000504)

Toro Neu Mowers, Zero-Turn 74363 (Z4200) - Toro TimeCutter Z4220 Riding Mower, 2009 (290000001-290000504) STYLING AND FUEL SYSTEM ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR117-1219POD-RH
2 TR117-1220POD-LH
3 TR115-2500DECAL-PANEL, CONTROL
4 TR104-3626CABLE-THROTTLE
5 TR3258-166Schraube
6 TR107069Mutter (20)
7 TR93-7198GAS CAP ASM
8 TR110-1927-03PANEL-CONTROL
9 TR110-6890FUEL TANK ASM
9:2 TR46-6560BUSHING
9:3 TR95-3970FITTING-90 DEGREE
10 TR112-4004SCREW-SHOULDER
11 TR110-6786COVER-CONTROL
12 TR112-9760WASHER-RUBBER
13 TR55-9310SEAL-FOAM
17 TR100-9064Kabelband
19 TR105-1853SCHLAUCHKLEMME
